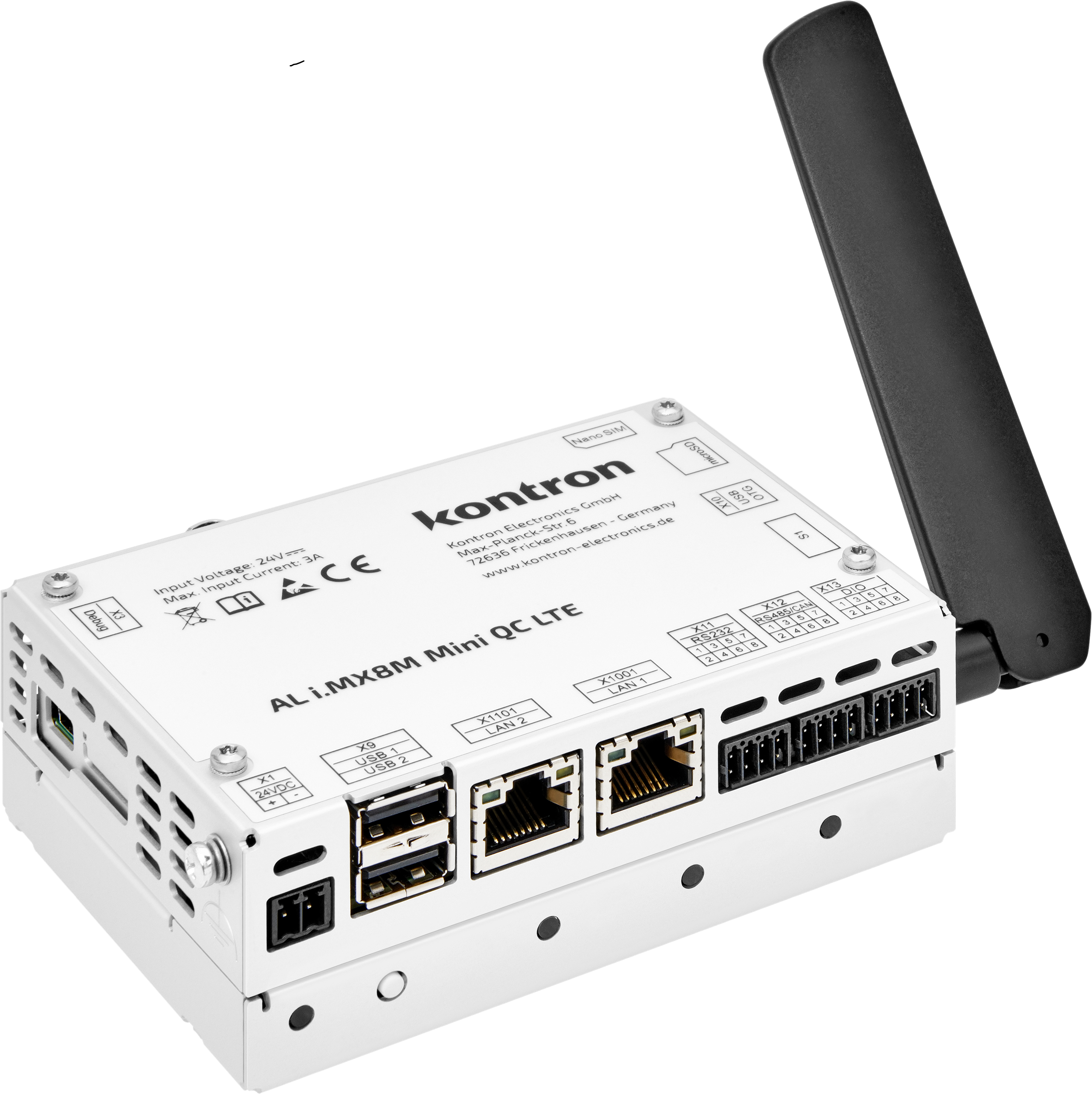

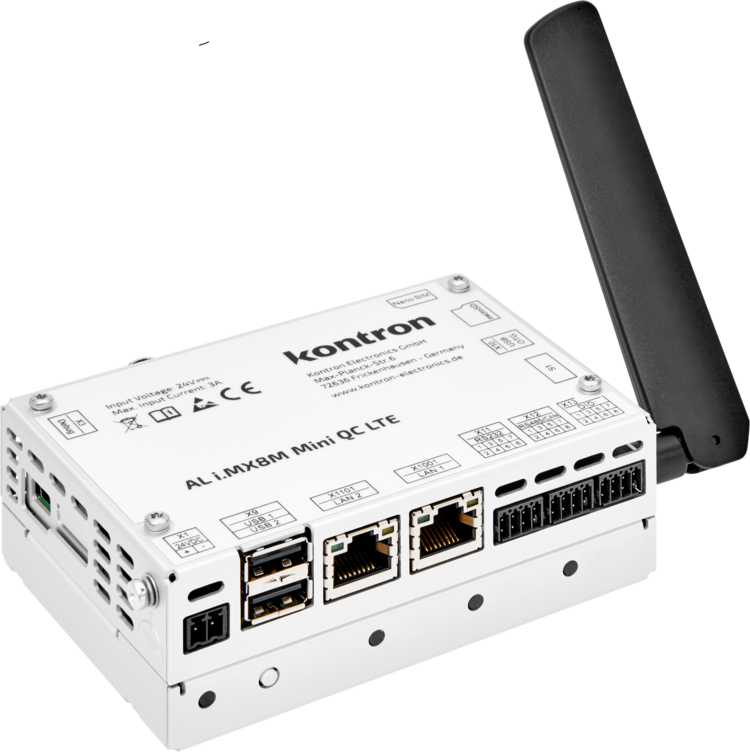

AL i.MX8M Mini LTE
Compact, fanless IoT Gateway for mobile and wireless IoT solutions
Specifications
- NXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz
- Secure, hardened operating system KontronOS, Linux-based
- Stainless steel housing 111 x 25 x 76 mm, mounting on 35 mm DIN rail
- Robust, fanless housing
Product Information
The AL i.MX8M Mini LTE from the Automation-Line series by Kontron Electronics is a compact, fanless IoT Gateway designed for DIN rail mounting, tailored for demanding control tasks as well as mobile and wireless IoT solutions. With its robust stainless-steel housing and flexible DIN rail installation, it is especially suited for industrial applications and environments that require reliability and security.
Performance & Architecture
At the heart of the Gateway is the NXP i.MX8M Mini processor with four Arm® Cortex®-A53 cores (1.6 GHz) and one Arm® Cortex®-M4 (400 MHz), supported by a 2D/3D GPU. The system features up to 4 GB of LPDDR4 RAM, complemented by various storage options such as NOR Flash and eMMC. It runs on the secure, hardened KontronOS Linux operating system and offers Secure Boot as well as two redundant partitions for maximum availability and data protection; Embedded Linux (Yocto distribution) is also available as an option.
Communication Interfaces
The AL i.MX8M Mini LTE is equipped with a versatile range of interfaces: Ethernet (1x 1 Gbit/s, 1x 10/100 Mbit/s), USB (2x 2.0 Host, 1x 2.0 OTG), serial ports (RS232, RS485), CAN 2.0 B, and four digital I/Os (24 V/up to 800 mA). Wireless communication is provided by the integrated LTE Cat1 module with Nano-SIM slot, which enables reliable mobile connectivity for IoT applications—ideal when integration into the company network is not possible.
Fields of Application & Advantages
Typical application areas include mobile solutions, IoT gateways, edge computing, mechanical engineering, control tasks, and wireless communication. The device excels with its compact, fanless design, easy expandability via multifunction I/O modules, and flexible mounting options. Thanks to KontronOS and KontronGrid, the highest security standards are met—including end-to-end encryption and secure remote access. The AL i.MX8M Mini LTE offers premium features at a fair price and is ideally suited for industrial IoT environments.
Features
| CPU | NXP i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte (optional: 2 GByte) |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte (optional: 16 / 64 GByte) |
| SD CARD | 1x microSD Card Slot |
| NV MEMORY | 8 kByte |
| Ethernet | 1x 1 Gbit/s, 1x 10/100 Mbit/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0 B |
| DIO | 4x DIO (24 V/up to 800 mA) |
| LTE | LTE Cat 1 untill Uplink up to 5 Mbps, Downlink up to 10 Mbps 1x Nano-SIM Slot |
| Bootloader | Secure-Boot |
| Operating System | KontronOS Optional Embedded Linux (Yocto Distribution) |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | TBD |
| Temperature range | 0 °C … +55 °C, ambient, non condensing |
| Cooling | Fanless, passiv |
| Form Factor | Stainless steel 111 x 43 x 76 mm for mounting on 35 mm DIN-Rail acc. EN 60715 |
| RTC | 5 ppm accuracy |
| RTC BUFFERING | CR 1220 |
| Debug | 1x Console |
| Protection Class | IP20 |
| Approvals | CE |
| Security | HAB Secure-Boot Two redundant partitions for maximum uptime End-to-end encryption of all connections Separation of operating system and applications |
