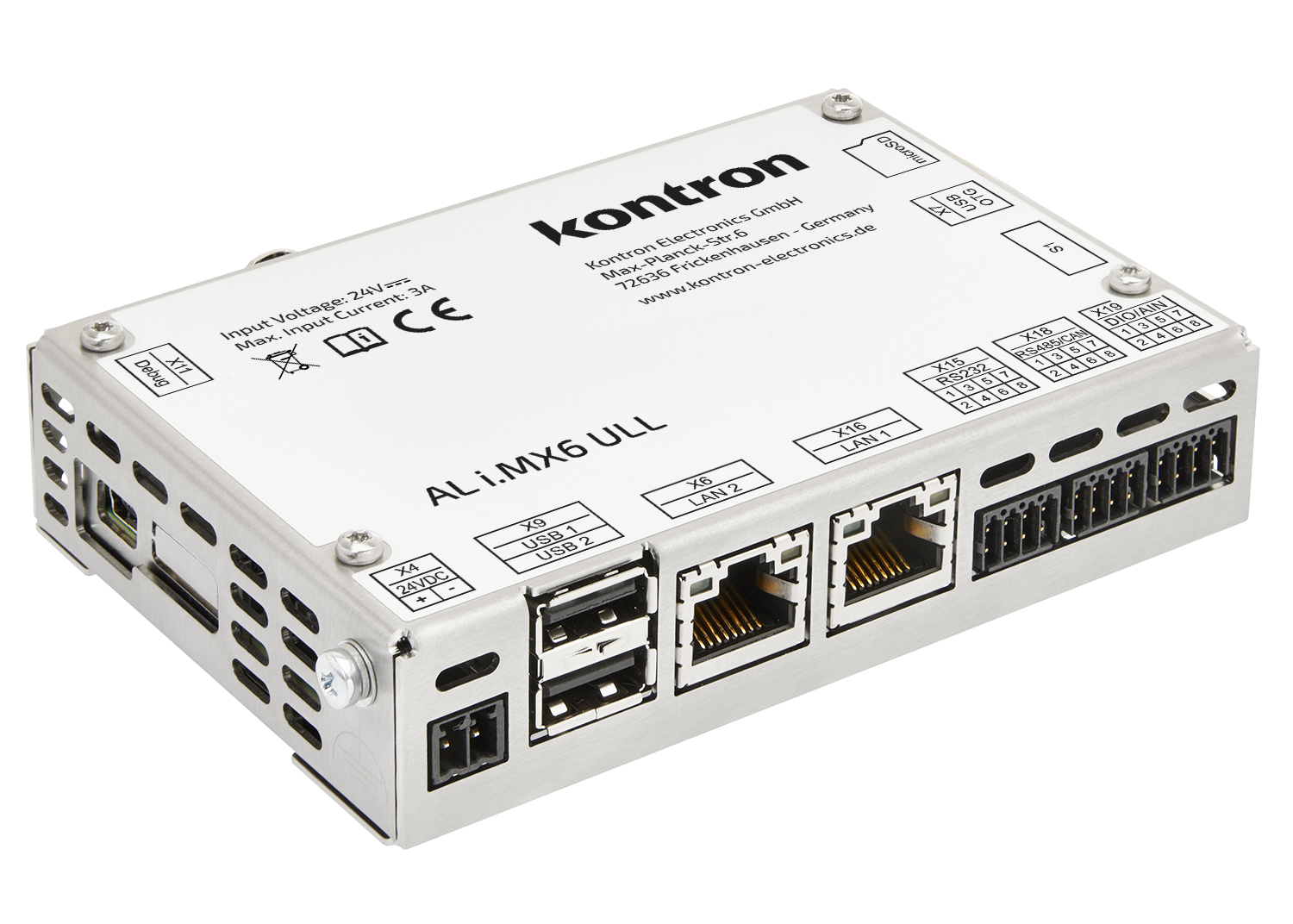

AL i.MX6 ULL

Compact Box-PC with i.MX6 ULL, 1x Arm® Cortex®-A7 @800 MHz

Specifications

Memory: DDR3-RAM, eMMC, 1x microSD Card Slot
Communication: Ethernet, USB, RS232, RS485, CAN, DIO, AIO
Operating system: Embedded Linux

Features

CPU	i.MX6 ULL, 1x Arm® Cortex®-A7 @800 MHz

DDR3-RAM

512 MByte

eMMC

4 GByte

SD CARD

1x microSD Card Slot

Ethernet

2x 10/100 Mbit/s

USB	2x 2.0 Host, 1x 2.0 OTG

Serial

1x RS232, 1x RS485

CAN

1x 2.0

DIO	2x DIO (24 V/up to 800 mA)

AIO	2x AIN (0...24 V)

Power Supply

24 V DC ±20 %

Power Consumption

tbd

Form Factor

Stainless steel housing 111 x 25 x 76 mm for mounting on 35mm mounting rail acc. to EN 60715

Temperature

Range: 0 °C...+55 °C

Protection Class

IP20

Bootloader

U-Boot

Operating System

Embedded Linux (Yocto Distribution)
