986LCD-M/FLEX
Intel® Core™2 Duo Mobile, Intel® Core™ Duo, Intel® Core™ Solo and Celeron® M based embedded FLEX-ATX motherboard, 810210-4600
ADD2-LVDS-DUAL card Datasheet
864.81 KB | March 26, 2026
This product is legacy and no longer actively supported.
ADD2-LVDS-DUAL-Internal
ADD2 card for extra LVDS support for Motherboards.
- Support for Dual Independent LVDS displays
- Standard KT LVDS-40pin connector, supporting many existing cable kits
- Resolution up to 1600x1200 optional 1920x1080
- 24 bit colours
- LCDVCC voltages 3.3V or 5V selected by Jumper, independently for each display
Product Information
ADD2-LVDS-DUAL is PCI-Express Digital Display Card to add extra LVDS LCD display support by plug-in PCI-Express/SDVO socket of 986LCD-M and KT965 motherboard series.
Downloads
Service
Kontron Services Brochure
8.9 MB | March 26, 2026
PN 1035-7636 Cable LVDS STM P240420
368.02 KB | March 26, 2026
PN 1027-2631 Cable LVDS JAE FI-S20 w PT
366.8 KB | March 26, 2026
PN 1021-8971 Cable LVDS DF14-20S
324.24 KB | March 26, 2026
PN 821520 Cable for LG.Philips LM150X8
253.36 KB | March 26, 2026
PN 821155 Cable LVDS Open-End 1080mm
270.68 KB | March 26, 2026
PN 820971 LDI Evaluation Kit
393.36 KB | March 26, 2026
PN 821156 Cable LVDS Open-End 2000mm
279 KB | March 26, 2026
KTD-00698 82xxxx Cable kit Samsung LTB230W1-L02
258.33 KB | March 26, 2026
KTD-00697 820972 Cable kit Samsung LTM201U1-L01
243.65 KB | March 26, 2026
KTD-00701 820973 LDI Dual Sharp LQ201U1LW01
249.32 KB | March 26, 2026
PN 821515 Open End LVDS Cable 572mm
257.34 KB | March 26, 2026
PN 821518 Cable LVDS JAE FI-S20S Std18b
365.24 KB | March 26, 2026
concept-case
KTD-00776 KT-LVDS-40p Display - Cable List Application Note
More downloads
All other downloads such as drivers, BIOS, drawings etc. are available on Kontron's Customer Section
Related products & solutions

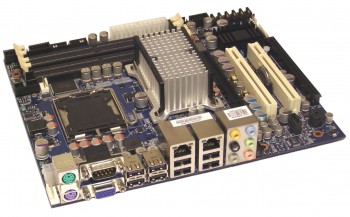

KT965/FLEX
Intel® Core™ 2 Duo , Intel® Core™ 2 Extreme, Intel® Core™ 2 Quad Desktop based Embedded FLEX-ATX with 2 x Gb LAN and up to 8GB DDR2/800

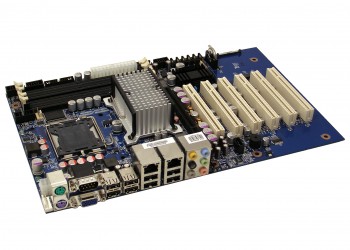

KT965/ATXP
