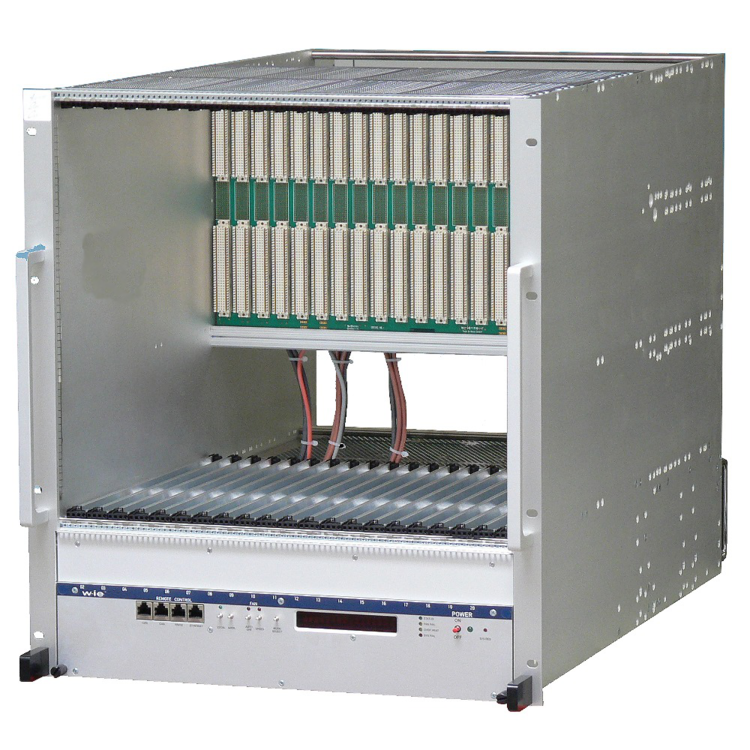

9U VME64x 6023 Full Size Chassis
The 9U VME64x 6023 Full Size Chassis is WIENER’s next-generation integrated packaging system for VME/VME64x applications, combining rugged mechanical construction, ultra-low-noise modular power supplies, and advanced local and remote monitoring features.
- Mechanics: 9U × 400 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: Up to 21 VME64x (optional P0 connectors)
- Power Supply: Up to 6 kW, low-noise “Cavity-VHF” switching
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, CAN-bus
Product Information
The WIENER VME 6023 crate series is designed for demanding data acquisition, control, and instrumentation tasks where performance, reliability, and serviceability are paramount.
Its modular architecture consists of the UEV 6023 bin with integrated air compression chamber, the UEL 6020 fan tray, and the UEP 6021 high-density modular power supply.
The unique bottom-positioned power supply enables completely free access to the rear of the VME backplane, allowing for easy integration of rear transition modules. The chassis supports both full 9U × 400 mm boards and mixed 6U/9U configurations, with heavy-duty 5 mm side plates ensuring mechanical stability.
Cooling is handled by a temperature-monitored DC blower system with individually controlled fans, while the microprocessor-based control system provides extensive monitoring and programmable trip points for voltage, current, and temperature.
Remote management via Ethernet (including a built-in web server and SNMP support) ensures full control over system health from anywhere.
Technical data
| Features | Rugged 19” × 12U chassis for 21-slot 9U × 400 mm VME/VME64x VARIO option for mixed 6U/9U board configurations Monolithic 10-layer VME64x backplane with active termination and CBLT compliance Integrated 1U plenum air compression chamber for optimal cooling Modular “Cavity-VHF” power supply, 3–6 kW output, ultra-low ripple Microprocessor-controlled fan and power management Ethernet and USB interfaces for local/remote monitoring and control Optional rear transition card cages (3U, 6U, 9U) Up to 8 temperature sensors for precise thermal monitoring EMC/ESD-protected construction with CE conformity Long-life, individually controlled DC fans (MTBF > 60,000 h) Optional dust filter and custom backplane configurations |
|---|
