9U VME430 6021 Full Size Chassis
325.72 KB | March 26, 2026
9U VME430-6021

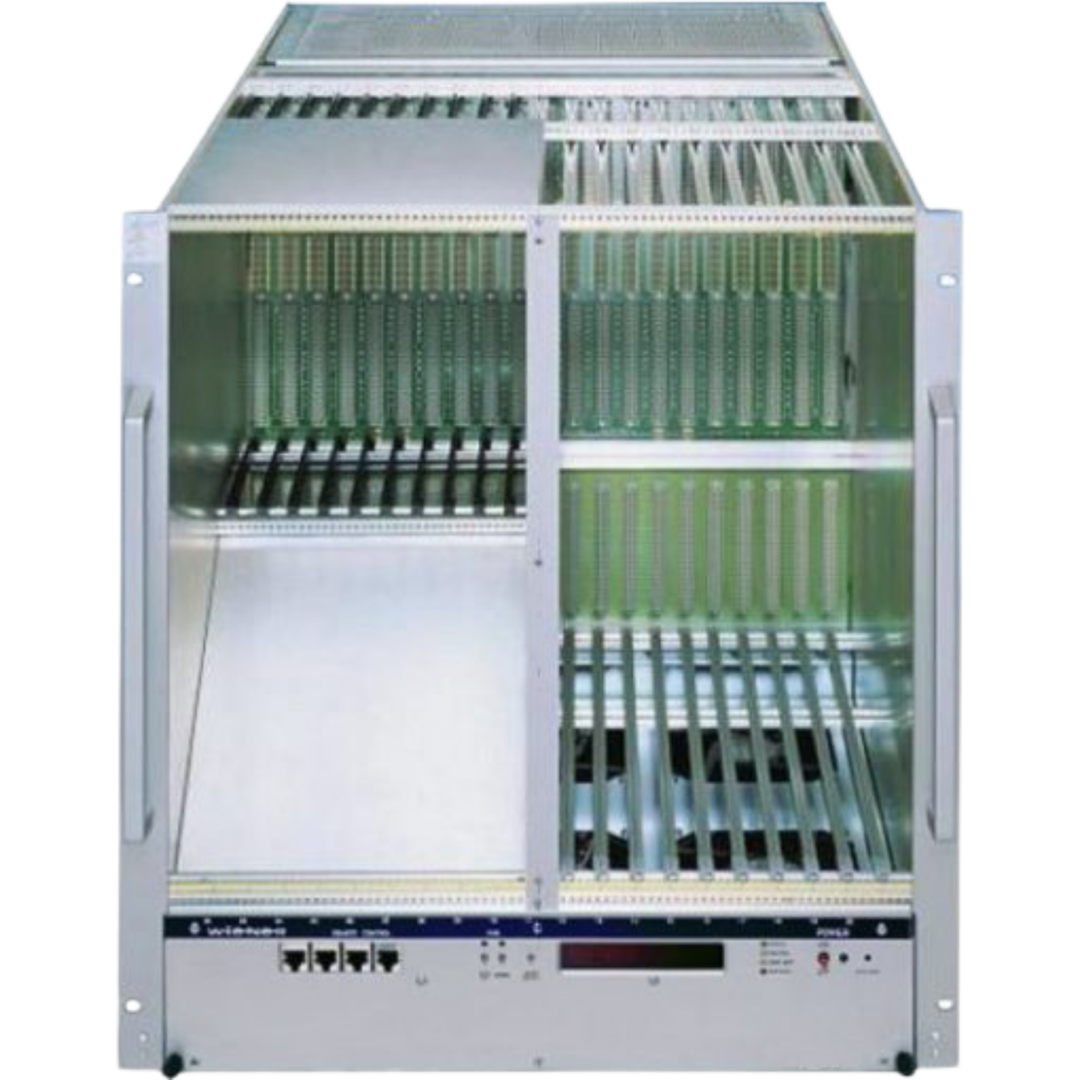

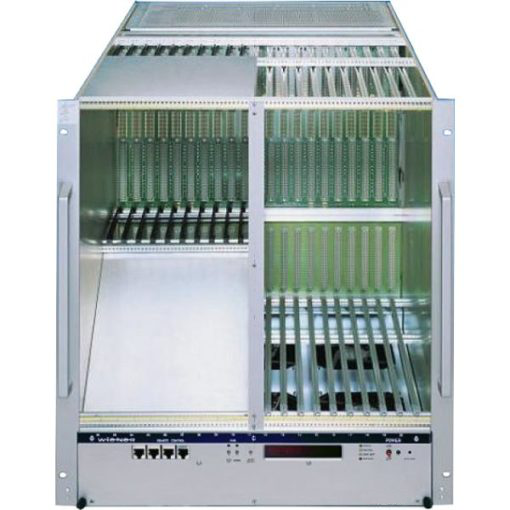

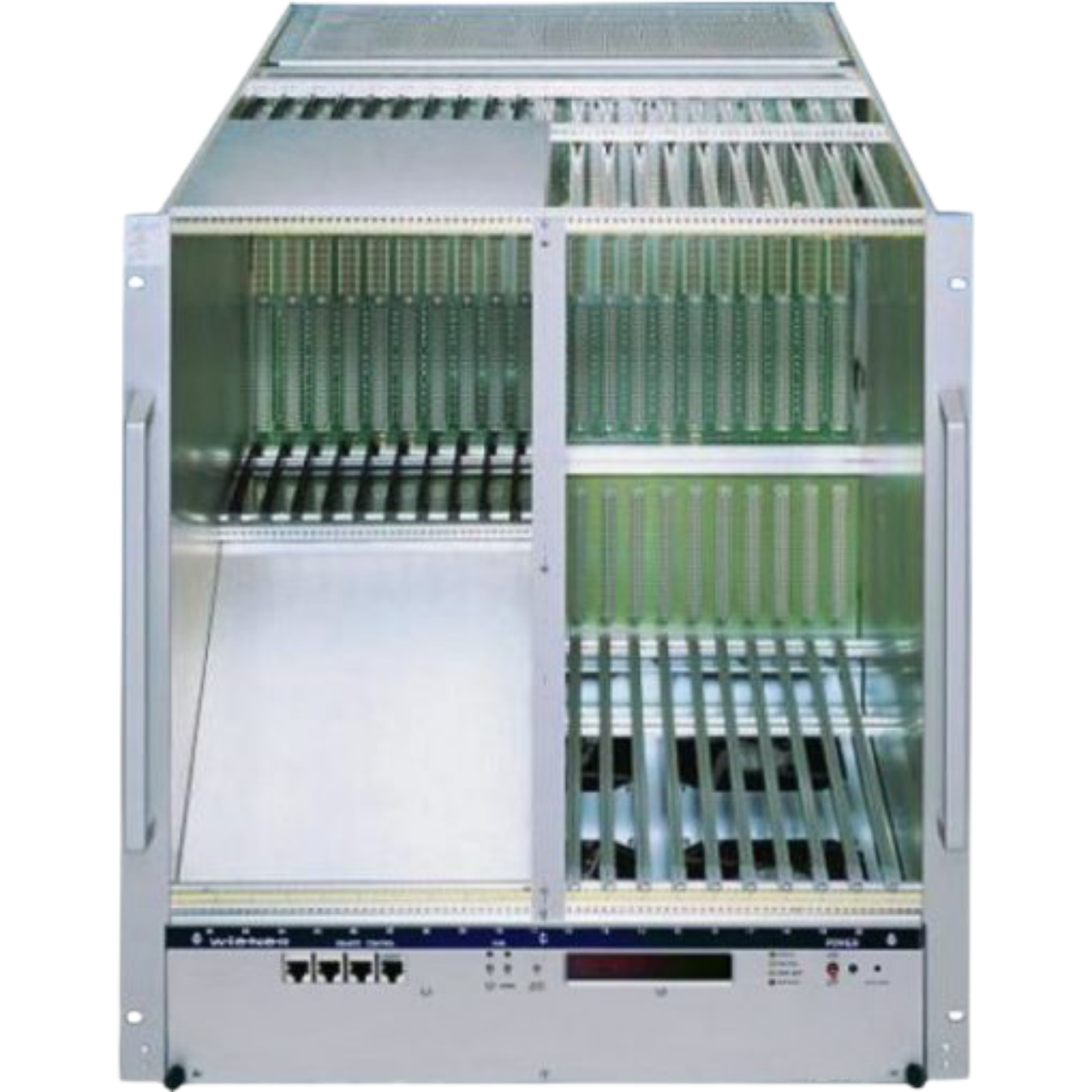

21-slot 9U VME/VME430 full-size Chassis for large-format 9U cards with Ethernet-based diagnostics.
- Mechanics: 9U × 400 mm, IEEE 1101.10 compliant
- Slots: 21 VME/VME430 (J1/Jaux/J2), optional “Vario” for 6U+9U mix
- Power Supply: up to 1000 W, low-noise switching
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, RS232, CAN-bus
Product Information
The VME430-6021 9U Chassis is designed for large-scale data acquisition and beamline applications requiring 9U × 400 mm boards. It provides robust mechanical stability, low-noise power supply operation, and advanced monitoring capabilities. The modular system includes bin, fan tray, and PSU, ensuring serviceability and long-term operation. An optional “Vario” version supports a mixed configuration of 6U and 9U cards for flexible system integration. Remote diagnostics via Ethernet, RS232, and CAN-bus guarantee comprehensive system management.
Technical data
| Features | Mechanical Design: Rugged 19″ × 11U steel-aluminum construction Backplane: Monolithic 21-slot VME430, 10-layer PCB, active termination Cooling: Intelligent fan tray with thermal control Interfaces: Ethernet, RS232, CAN-bus monitoring Electrical Protection: Overvoltage, undervoltage, overload, fan fail detection Compliance: CE, EN 60950, ISO 380, UL 1950 MTBF: >65,000 h for fans, >100,000 h for electronics |
|---|
