9U VME 6021 Full Size Chassis Datasheet
315.29 KB | March 26, 2026

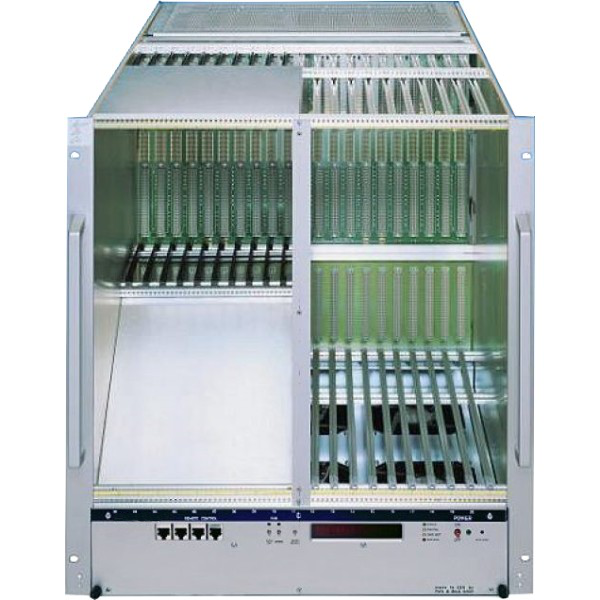

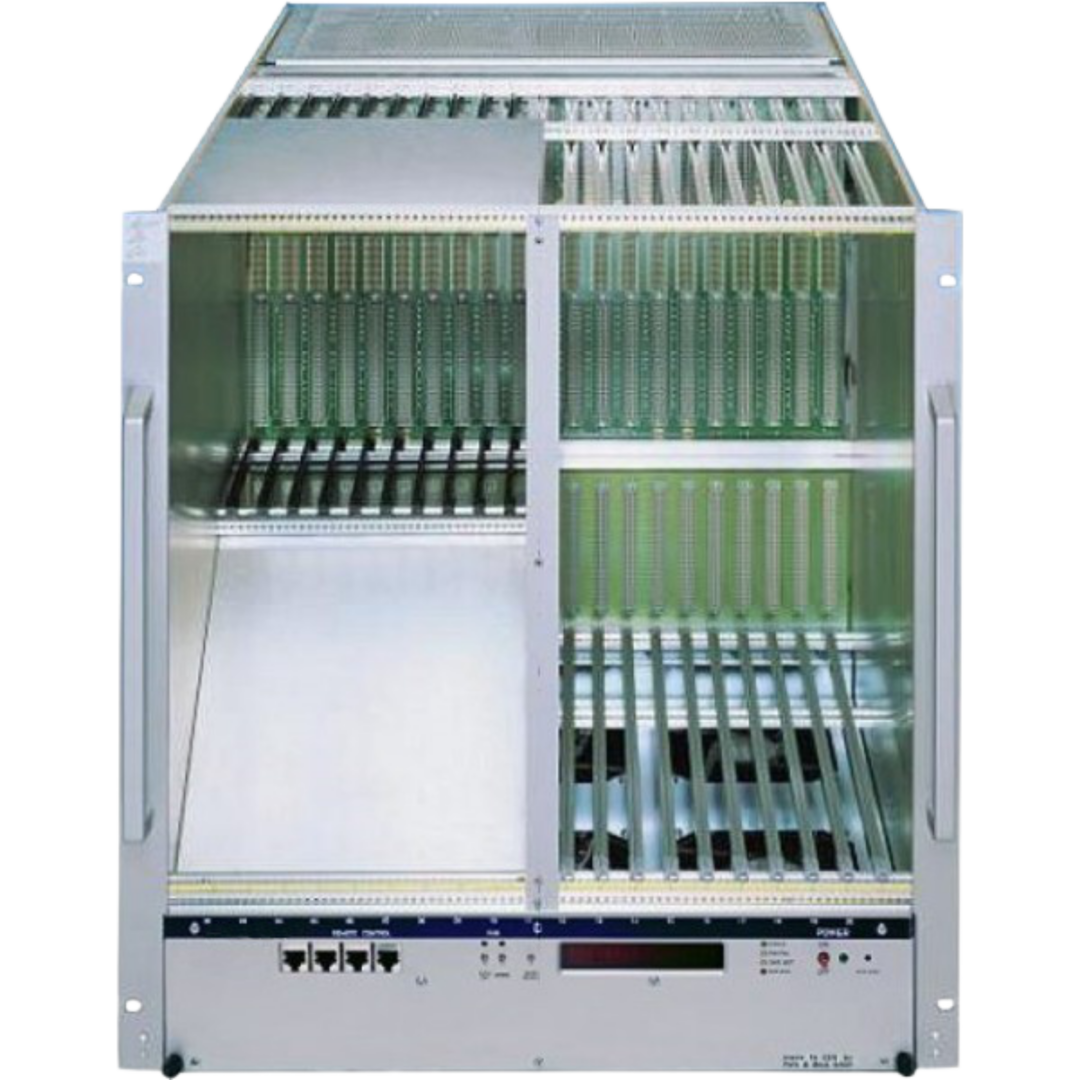

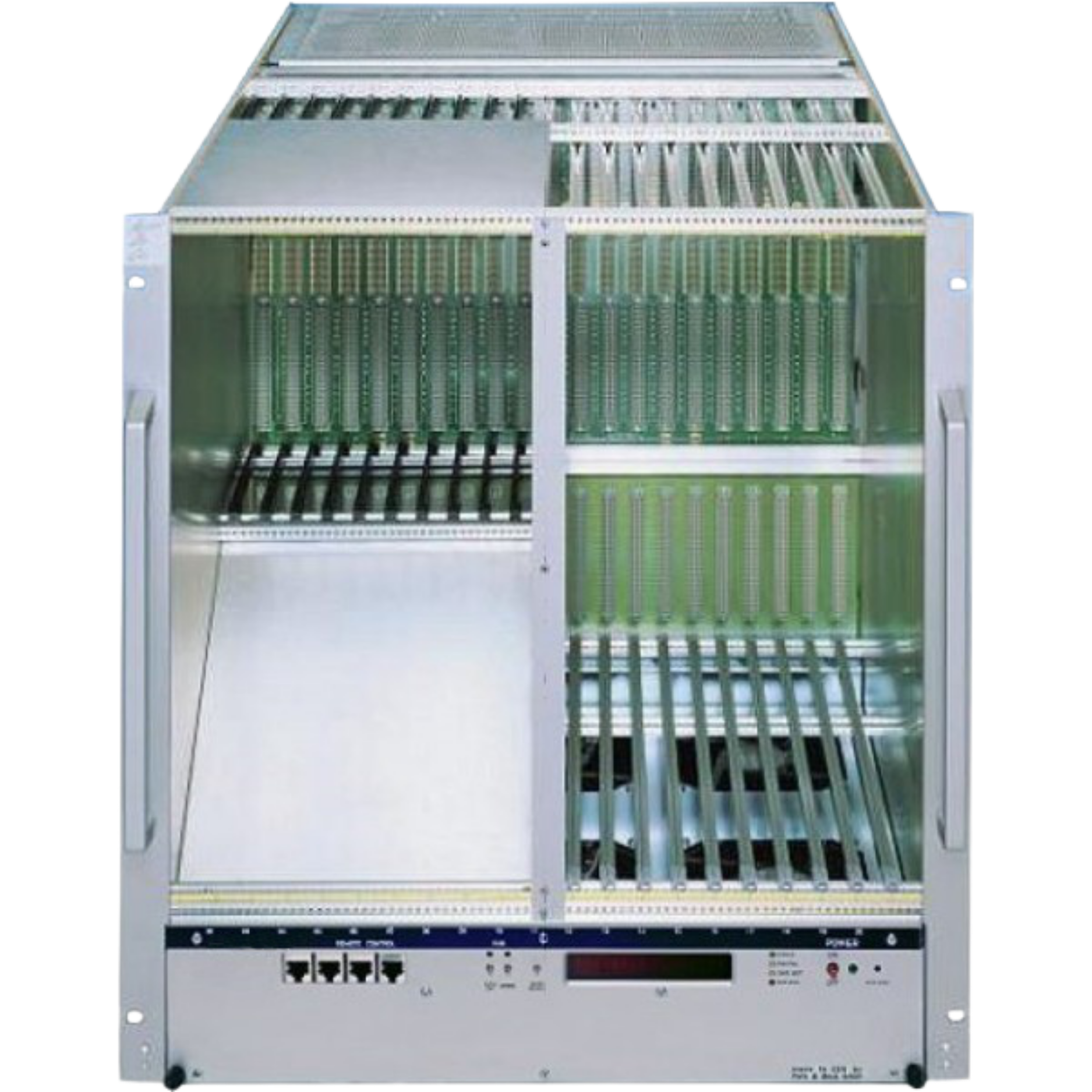

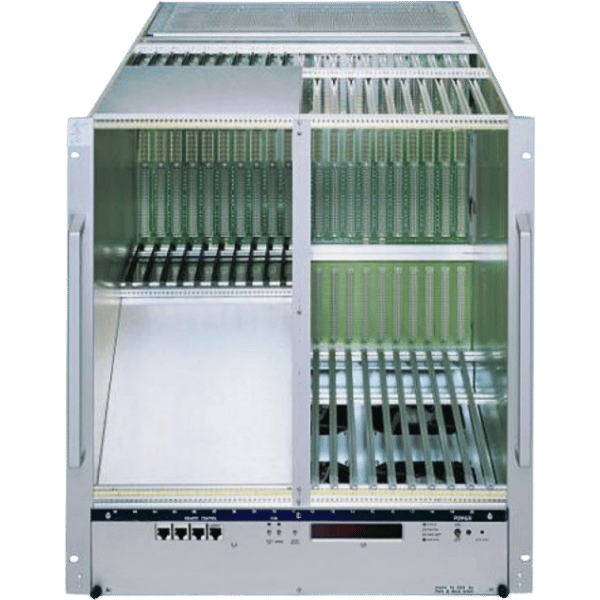

9U VME 6021 Full Size Chassis
Large-capacity 21-slot 19″ VME/VME64 full-size crate with 9U × 40 mm module support, featuring modular design, rugged construction, and advanced integrated monitoring for high-end instrumentation and control applications.
- 19″ × 11U enclosure for 9U × 400 mm VME/VME64 cards
- Optional “Vario” design for mixing 6U × 160 mm and 9U × 400 mm card cages
- Rugged steel-aluminum construction with 5 mm side plates and precision countersunk rails
- Monolithic 6U VME/VME64 backplane (J1/J2), 8-layer PCB with active termination and daisy chaining
- 2U fan tray space at front bottom; power supply mounted at top rear with clear rear access and optional rear transition card cages
Product Information
The 9U VME 6021 Full Size Chassis is built for advanced, large-scale systems requiring robust performance and expandability. It accommodates up to 21 full-size VME or VME64 cards (9U × 400 mm), with the option to include mixed card sizes. The chassis is highly durable, thanks to its heavy-duty steel-aluminum build and precision-engineered rails. Its modular structure eases configuration and maintenance, with separate compartments for the fan tray and hot-swappable, high-density power supply. Rear access to backplanes and optional transition card cages adds versatility. The design supports extensive environmental monitoring and ensures reliable operation in challenging instrumented environments.
Technical data
| Features | Conforms to VME/VME64 standards (9U × 400 mm modules) 21-slot configuration in a tall, rack-friendly 11U form factor Modular construction (bin, fan tray, power supply) enabling flexible deployment Cable-friendly rear access with optional transition cages for I/O management Integrated environmental monitoring with up to 8 temperature sensors Sturdy, precision-engineered steel-aluminum chassis optimized for reliability |
|---|
