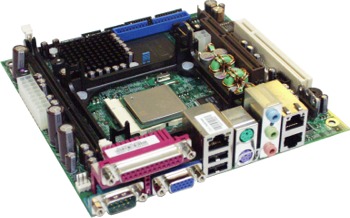

886LCD-M/mITX
Embedded Pentium-M mini-ITX Motherboard with 3xGbE LAN
- Intel® Pentium® M and Intel® Celeron® M Processors (mPGA478 socket)
- Front Side Bus 400 MHz
- Intel® 855GME + Intel® 6300ESB Embedded Chipset
- Intel® Extreme Graphics 2 Controller
- Flat Panel Display Support
LVDS, LAN, 4x USB and 4x COM, 1x AGP/DVO, 1x PCI
886LCD-M/mITX Embedded Motherboard is the most cost effective Pentium-M solution with many Embedded Motherboard features.
