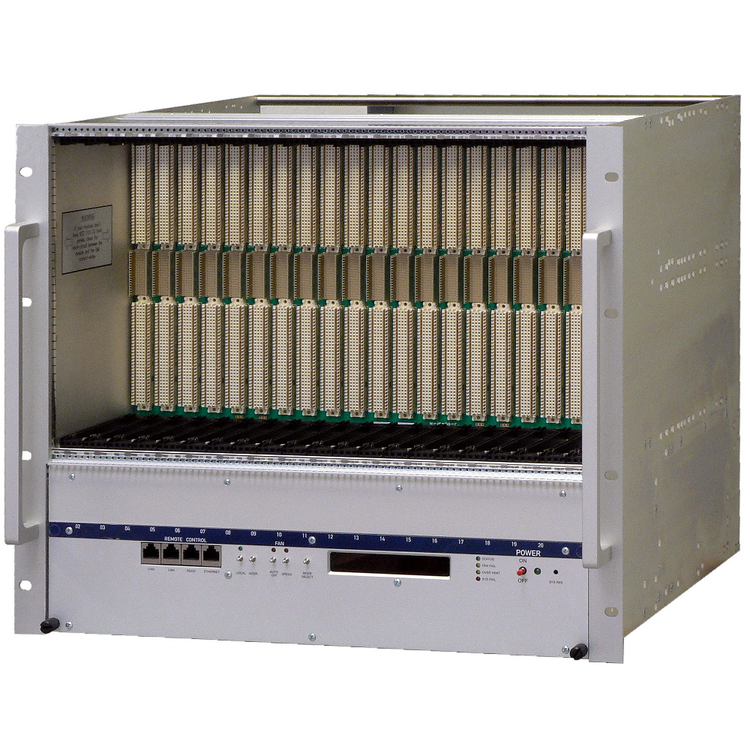

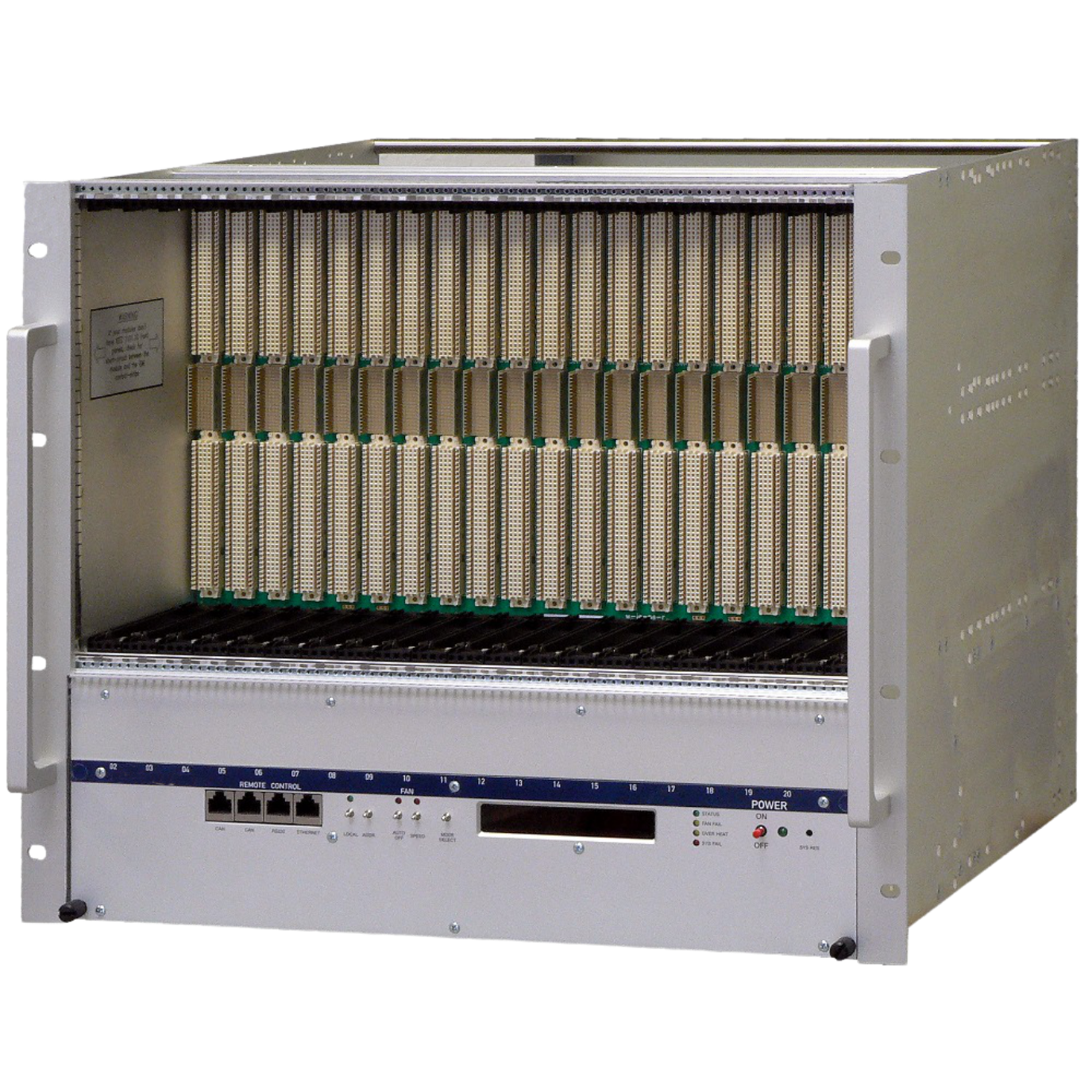

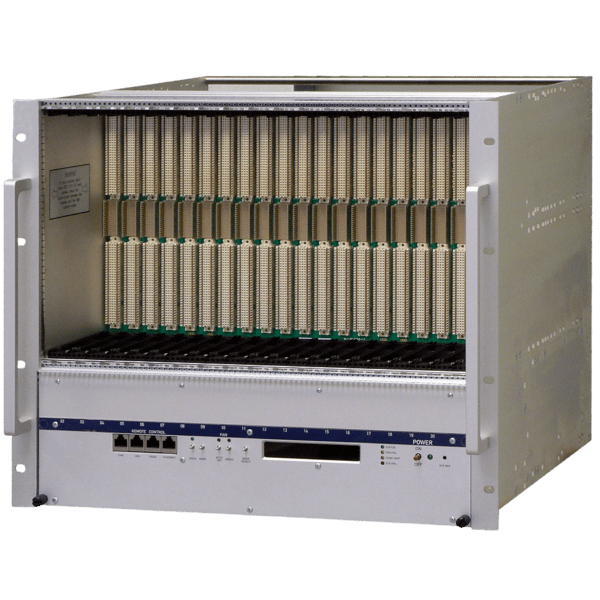

6U VME64x 6023 Full Size Chassis
High-performance 21-slot 6U VME64x crate with advanced EMC/ESD protection, ultra-low-noise modular power supply, and enhanced airflow design for full rear access.
Specifications
- Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 21 VME64x (J1/J2, optional J0 connectors)
- Power Supply: UEP 6021 series, modular, up to 3 kW, ultra-low-noise VHF switching
- Ripple: typ. < 10 mV(pp) (< 3 mV(rms) for <12 V outputs)
- Interfaces: Ethernet, RS232, CAN-bus for remote monitoring and control
- Cooling: UEL 6020 EX fan tray with plenum chamber, individually controlled DC fans, temperature-controlled
The VME6023 full-size crate is a premium 19″ VME64x packaging system designed for high-end data acquisition, control, and instrumentation applications. Fully compliant with IEEE 1101.10/P and featuring superior EMC and ESD shielding, it offers a monolithic 21-slot backplane with optional J0 connectors, active termination, and VIPA backplane compatibility.
A 1U plenum air compression chamber between the fan tray and card cage optimizes airflow while allowing the power supply to be mounted at the bottom rear, leaving the entire rear of the backplane accessible. This unique design supports optional 3U or 6U rear transition cages in multiple depths.
The UEP 6021 modular power supply delivers up to 3 kW with ultra-low noise performance, programmable voltage and current limits, and comprehensive protection features. Cooling is managed by the UEL 6020 EX fan tray with three long-life DC fans, adjustable speed, and temperature-based control. Local and remote crate management is available via high-visibility LED display, Ethernet, RS232, and CAN-bus interfaces, ensuring operational reliability in critical environments.
Features
| Construction | Rugged steel-aluminum chassis with 5 mm heavy-duty side plates, precision-mounted rails |
| Backplane | Monolithic 21-slot VME64x (J1/J2, optional J0), 10-layer PCB, active termination, automatic daisy-chain, CBLT/VIPA compatible |
| Airflow Flexibility | 2U fan tray plus 1U plenum chamber for optimized bottom-to-top cooling |
| Rear Access | Full unobstructed rear access to the backplane; supports rear transition cages in depths 80–220 mm |
| Cooling | UEL 6020 EX fan tray with three independently controlled DC fans, MTBF > 65 000 h; adjustable 1200–3600 RPM; temperature-controlled |
| Monitoring & Control | Microprocessor-controlled system with alphanumeric LED display; local and remote monitoring of fan tray, bin, and PSU parameters |
| Power Supply | UEP 6021 series modular PSU with “Cavity-VHF” low-noise switching, < 3 mV(pp) on low-voltage rails, up to 3 kW output power |
| Protection | Overvoltage crowbar, undervoltage shutdown, overcurrent, overtemperature, fan fail detection; programmable trip points |
| Interface | Ethernet, RS232, and CAN-bus for remote system management |
| Compliance | CE, EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950 |
| Environmental | Operating 0–50 °C without derating, storage –30 °C to +85 °C, MTBF electronics > 100 000 h |
