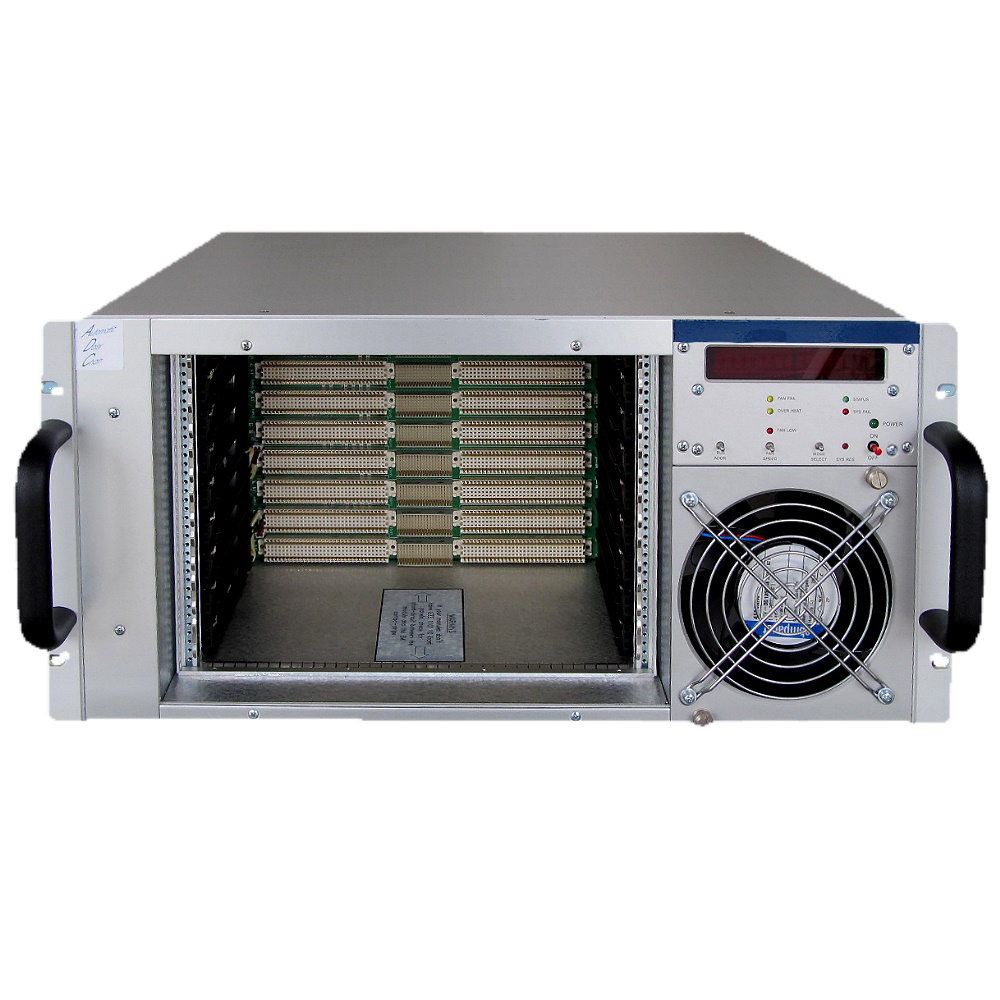

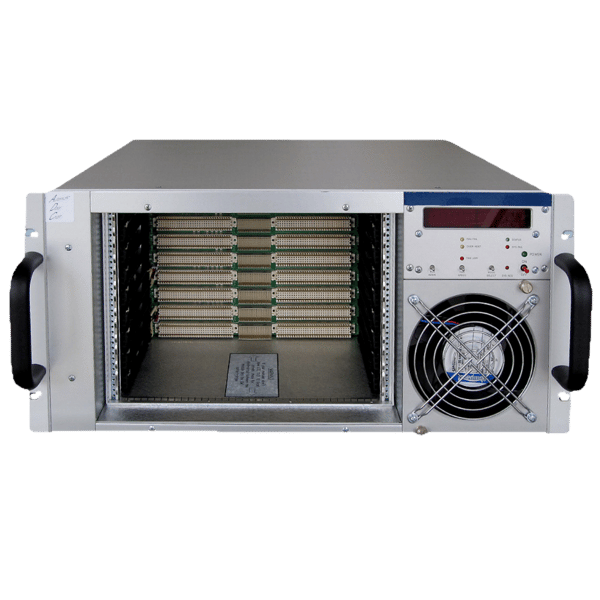

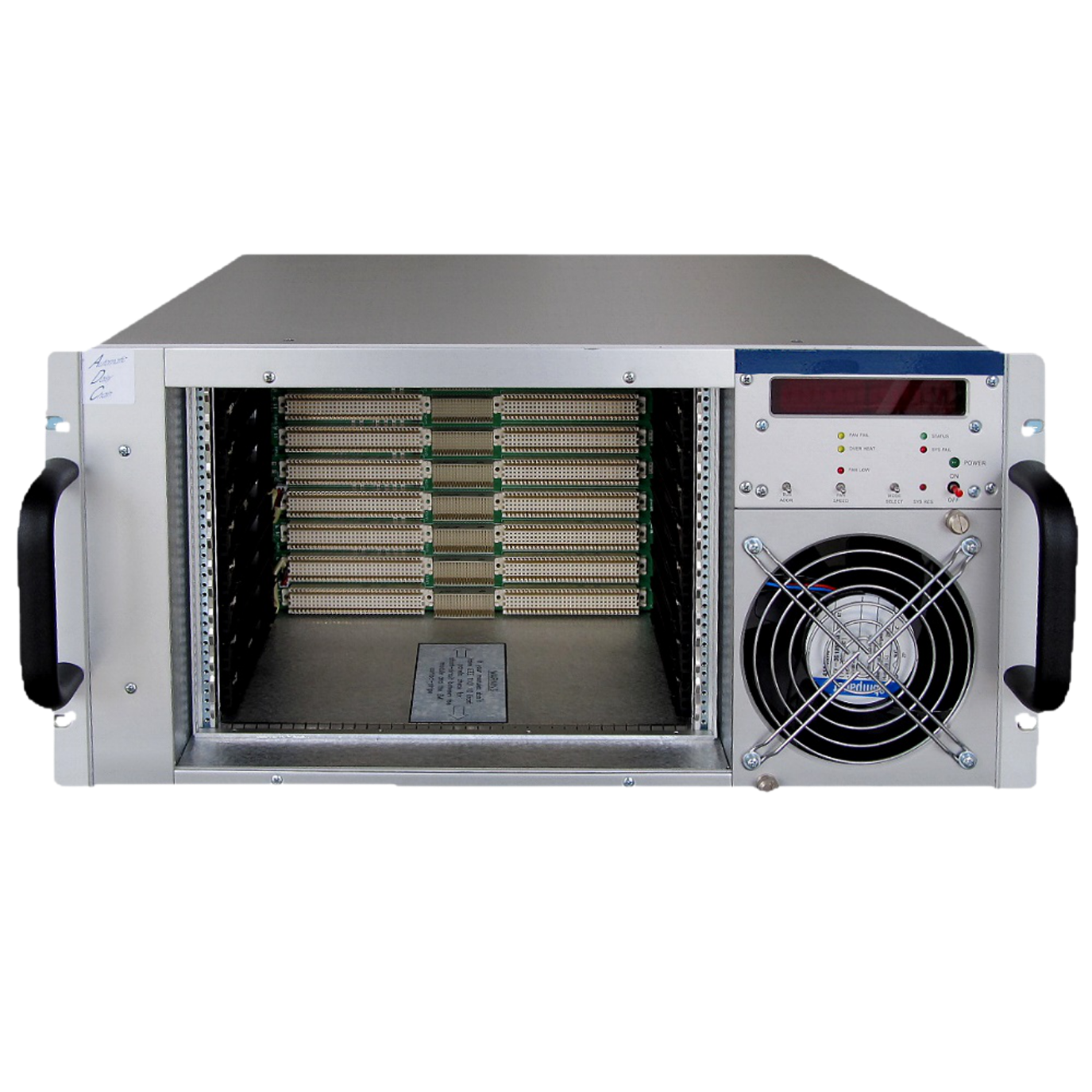

6U VME64x 395-x Mini Chassis
Compact 9‑slot VME64x mini crate with hot‑swappable redundant power supplies and advanced shelf management for rack or desktop use.
- "Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 9 VME64x (optional P0 connectors)
- Power Supply: One or two hot-swappable 250 W cPCI modules, redundant operation possible
- Ripple: typ. < 30 mV(pp), < 3 mV(rms)
- Interfaces: Shelf Manager with Ethernet and USB for local/remote monitoring/control
Product Information
The VME395-x mini crate series is engineered for reliable and modular operation in compact VME systems. It supports nine VME64x modules in a sturdy, IEEE 1101.10 compliant chassis. Key features include redundant, hot-swappable 250 W cPCI power supplies and a high-performance front-side-plug DC blower with temperature-adaptive speed control, ensuring consistent cooling and safety. The integrated Shelf Manager offers comprehensive system oversight — monitoring voltages, currents, fan speed, and temperature, while providing control via Ethernet or USB. The crate is versatile enough for desktop, upright, or 19″ rack mounting, and includes free rear access for transition modules with standard cages and customizable depth options. With worldwide AC input range and CE conformity, it is ideal for demanding industrial or laboratory environments.
Technical data
| Mechanical Design | IEEE 1101.10 mini-bin design with enhanced EMC/ESD protection |
|---|---|
| Redundancy | One or two hot-swappable 250 W cPCI power modules for uninterrupted operation |
| Backplane | Free rear access and transition cage for 6U modules (80/120/160 mm configurations; special depths available) |
| Monitoring & Control | Shelf Manager with high-visibility alphanumeric LED display and four status LEDs |
| Monitoring & Control | Ethernet and USB connectivity for remote system management via Shelf Manager |
Variants
Select variants here

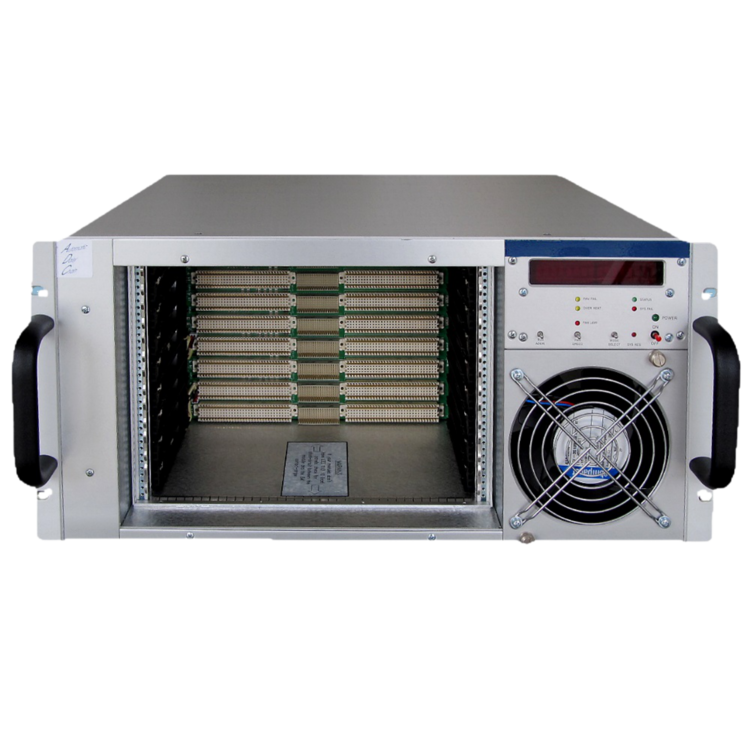

VME 395_1 – Backplane
VME/VME64, +5V/33A, +12V/6A, –12V/1A
The VME395-x mini crate series is engineered for reliable and modular operation in compact VME systems. It supports nine VME64x modules in a sturdy, IEEE 1101.10 compliant chassis. Key features include redundant, hot-swappable 250 W cPCI power supplies and a high-performance front-side-plug DC blower with temperature-adaptive speed control, ensuring consistent cooling and safety. The integrated Shelf Manager offers comprehensive system oversight — monitoring voltages, currents, fan speed, and temperature, while providing control via Ethernet or USB. The crate is versatile enough for desktop, upright, or 19″ rack mounting, and includes free rear access for transition modules with standard cages and customizable depth options. With worldwide AC input range and CE conformity, it is ideal for demanding industrial or laboratory environments.
VME 395_2 – Backplane
VME/VME64, +5V/66A, +12V/12A, –12V/2A
The VME395-x mini crate series is engineered for reliable and modular operation in compact VME systems. It supports nine VME64x modules in a sturdy, IEEE 1101.10 compliant chassis. Key features include redundant, hot-swappable 250 W cPCI power supplies and a high-performance front-side-plug DC blower with temperature-adaptive speed control, ensuring consistent cooling and safety. The integrated Shelf Manager offers comprehensive system oversight — monitoring voltages, currents, fan speed, and temperature, while providing control via Ethernet or USB. The crate is versatile enough for desktop, upright, or 19″ rack mounting, and includes free rear access for transition modules with standard cages and customizable depth options. With worldwide AC input range and CE conformity, it is ideal for demanding industrial or laboratory environments.
