6U VME430 6023 Full Size Chassis
329.17 KB | March 26, 2026
6U VME430-6023

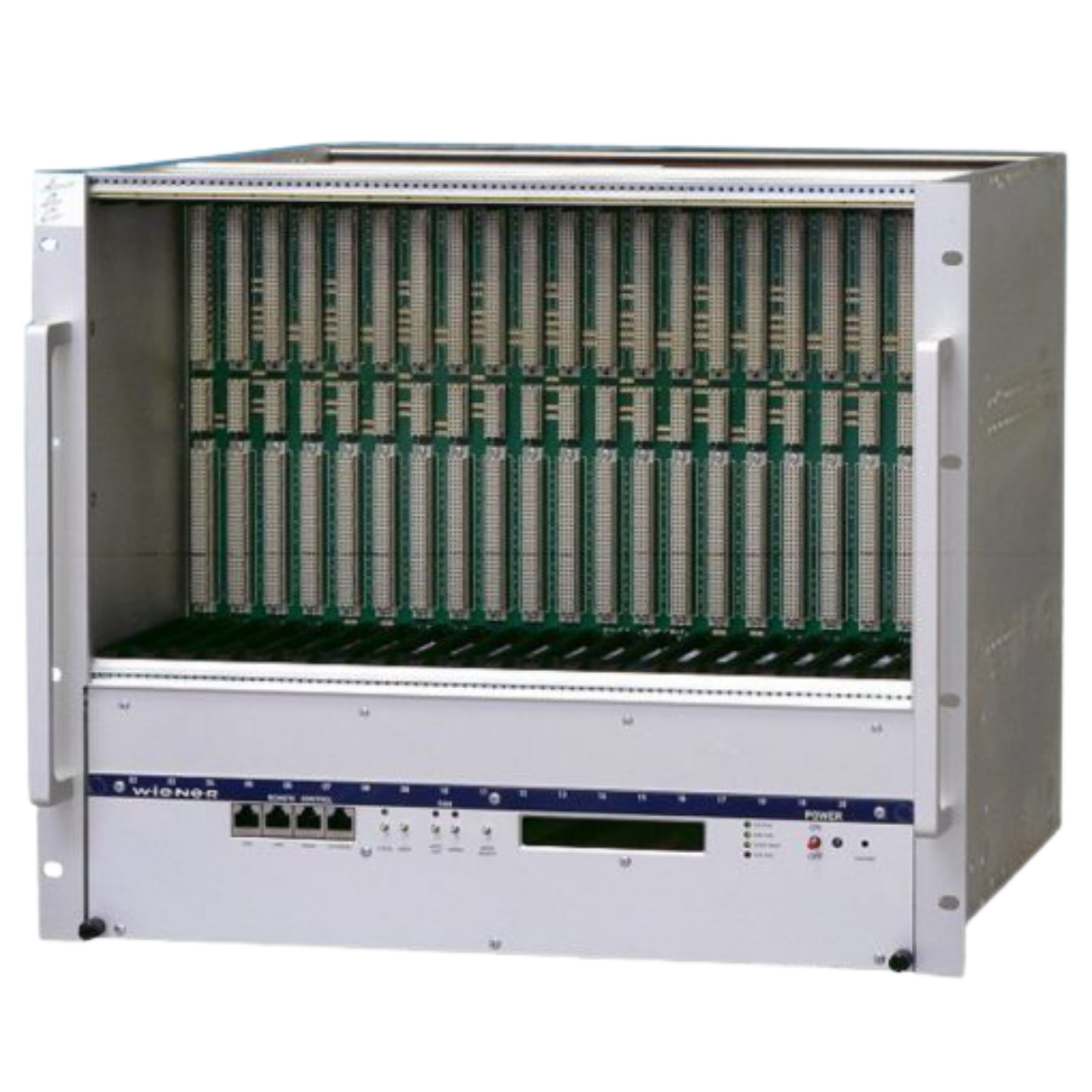

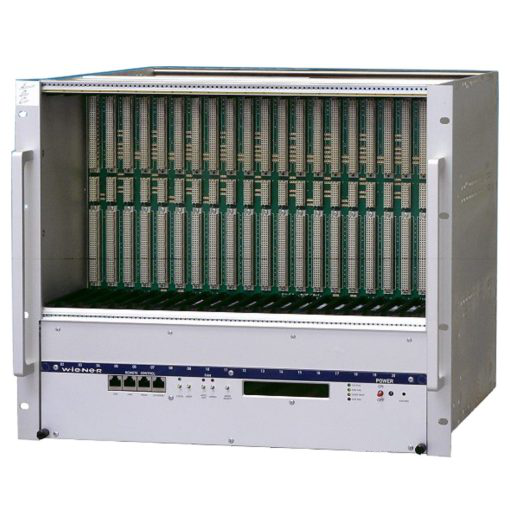

21-slot 6U VME/VME430 Chassis with modular architecture, 1U airflow chamber, and enhanced cooling.
- Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 21 VME/VME430 (J1/Jaux/J2)
- Power Supply: up to 1000 W, microprocessor-controlled
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, RS232, CAN-bus
Product Information
The VME430-6023 Chassis series provides the latest generation of 19″ VME/VME430 packaging systems with advanced cooling and modularity. It features a unique 1U air compression chamber between the fan tray and bus area, optimizing airflow across all slots. The system integrates a bottom-mounted power supply behind the fan tray, keeping the rear side of the backplane fully accessible. Designed for high-energy physics and demanding research environments, the VME430-6023 ensures high stability, efficient cooling, and complete monitoring via Ethernet, RS232, and CAN-bus.
Technical data
| Features | Modular construction: bin, fan tray, PSU with 1U airflow chamber Backplane: 21-slot monolithic VME430, 10-layer PCB, daisy-chain, active termination Cooling: Optimized airflow with temperature-controlled fans Interfaces: Ethernet, RS232, CAN-bus for crate-level monitoring Protection: Overvoltage, undervoltage, overload, and fan fail detection Compliance: CE, EN 60950, ISO 380, VDE 0805, UL 1950 Operation: 0–50 °C without derating |
|---|
