6U VME 6021 Full Size Chassis Datasheet
440.59 KB | March 26, 2026

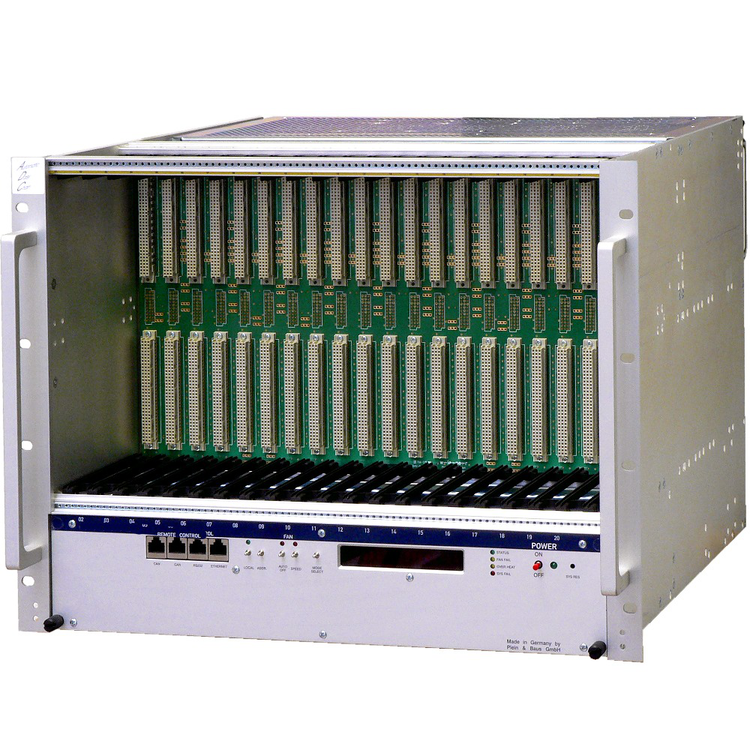

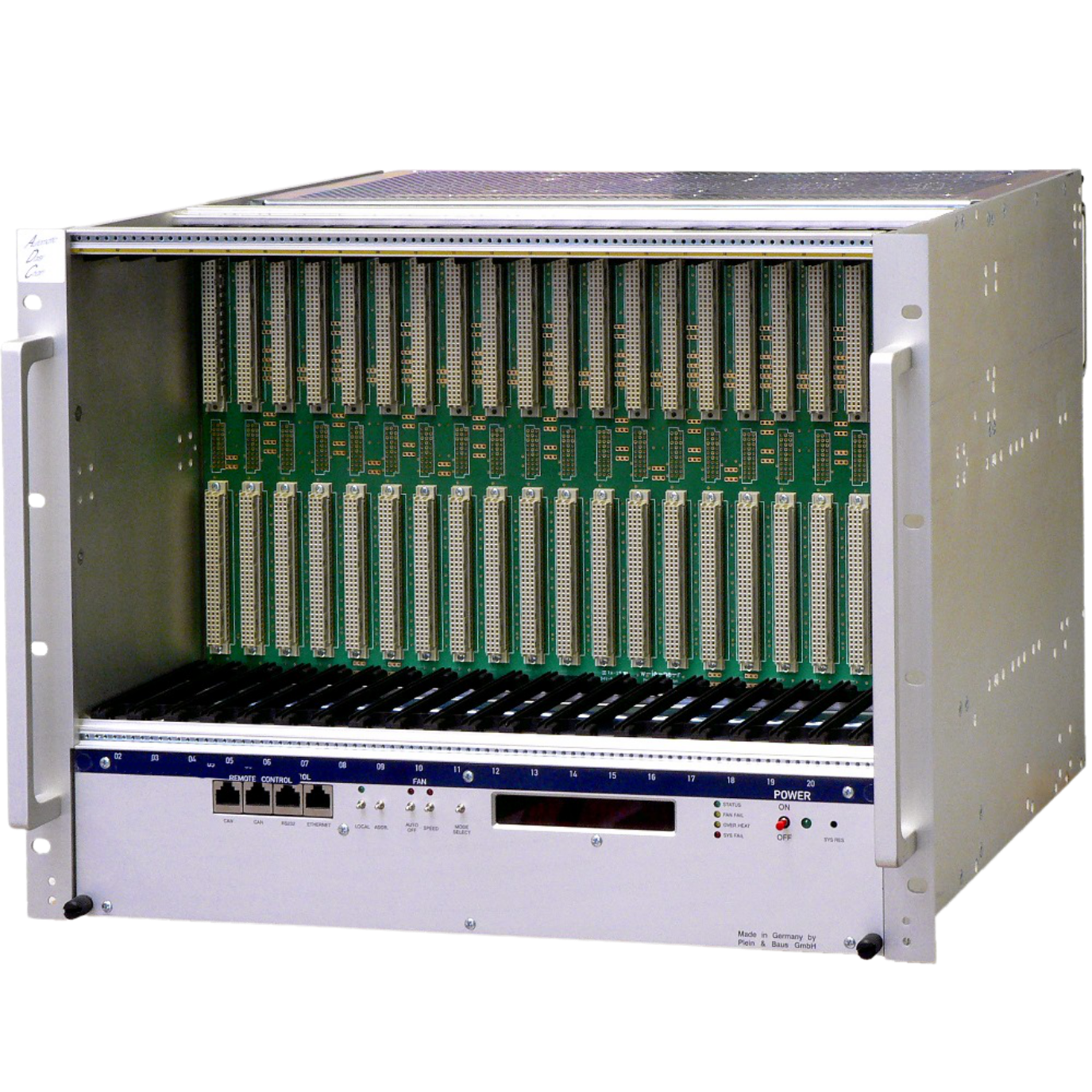

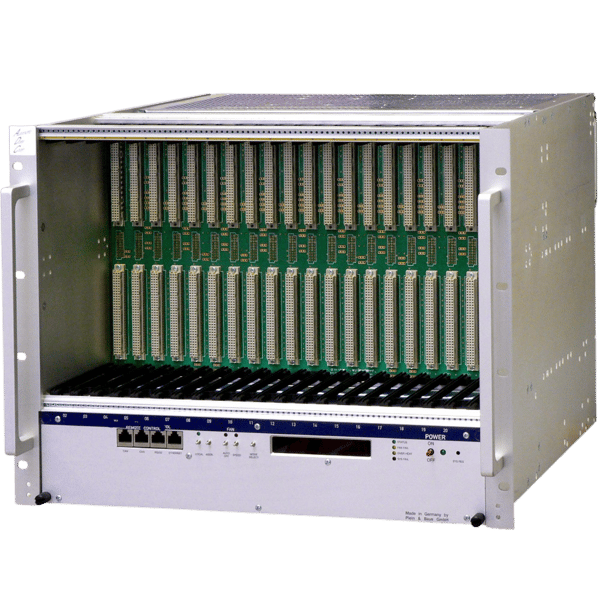

6U VME 6021 Full Size Chassis
High-capacity 21-slot 19″ VME/VME64 full-size crate in robust 8U format, combining high-performance power, advanced cooling, and remote monitoring for demanding data acquisition and control applications.
- Modular design: UEV 6021 bin (8U), UEL 6020 fan tray, UEP 6021 “Cavity-VHF” switching power supply
- 21-slot monolithic 6U VME/VME64 backplane (J1/J2), 8-layer PCB with active termination and daisy chaining
- UEL 6020 fan tray with 3 individually controlled long-life DC fans (adjustable 1200–3600 RPM), with LED display and Ethernet/RS-232/CAN-bus remote control
- UEP 6021 power supply with ultra-low noise (<3 mVpp on <12 V rails), up to 3 kW DC output, programmable voltage/current limits, world-wide auto-range AC input with PFC
- Rugged steel-aluminum 19″×8U enclosure, rear access to backplane connectors, optional temperature sensors, transition card cages
Product Information
The VME 6021 Full Size Chassis is a heavy-duty 19″ enclosure designed to host up to 21 six-unit VME or VME64 modules in an 8U rack format. Its modular build—consisting of a bin, fan tray, and high-density power supply—allows flexible configurations. Advanced cooling is managed by a microprocessor-controlled fan tray with adjustable fans and remote monitoring via Ethernet or serial interfaces. The high-performance switching power supply delivers up to 3 kW of ultra-low noise power while offering programmable protections, automatic voltage adjustments, and fail-safe mechanisms. Built for reliability and precision, this chassis suits high-demand instrumentation, data acquisition, and control environments.
Technical data
| Features | Fully compliant with VME/VME64 bus standards (6U × 160 mm modules) Large 21-slot configuration in a compact 8U rack-mount chassis Modular architecture (bin + fan tray + power supply) for flexibility and serviceability High-efficiency “Cavity-VHF” switching PSU with ultra-low noise and programmable protection Intelligent fan tray with LED status display, Ethernet/RS-232/CAN-bus control, temperature-based speed regulation Rugged steel-aluminum construction with optional expandability (rear transition cage, temperature sensors) |
|---|
