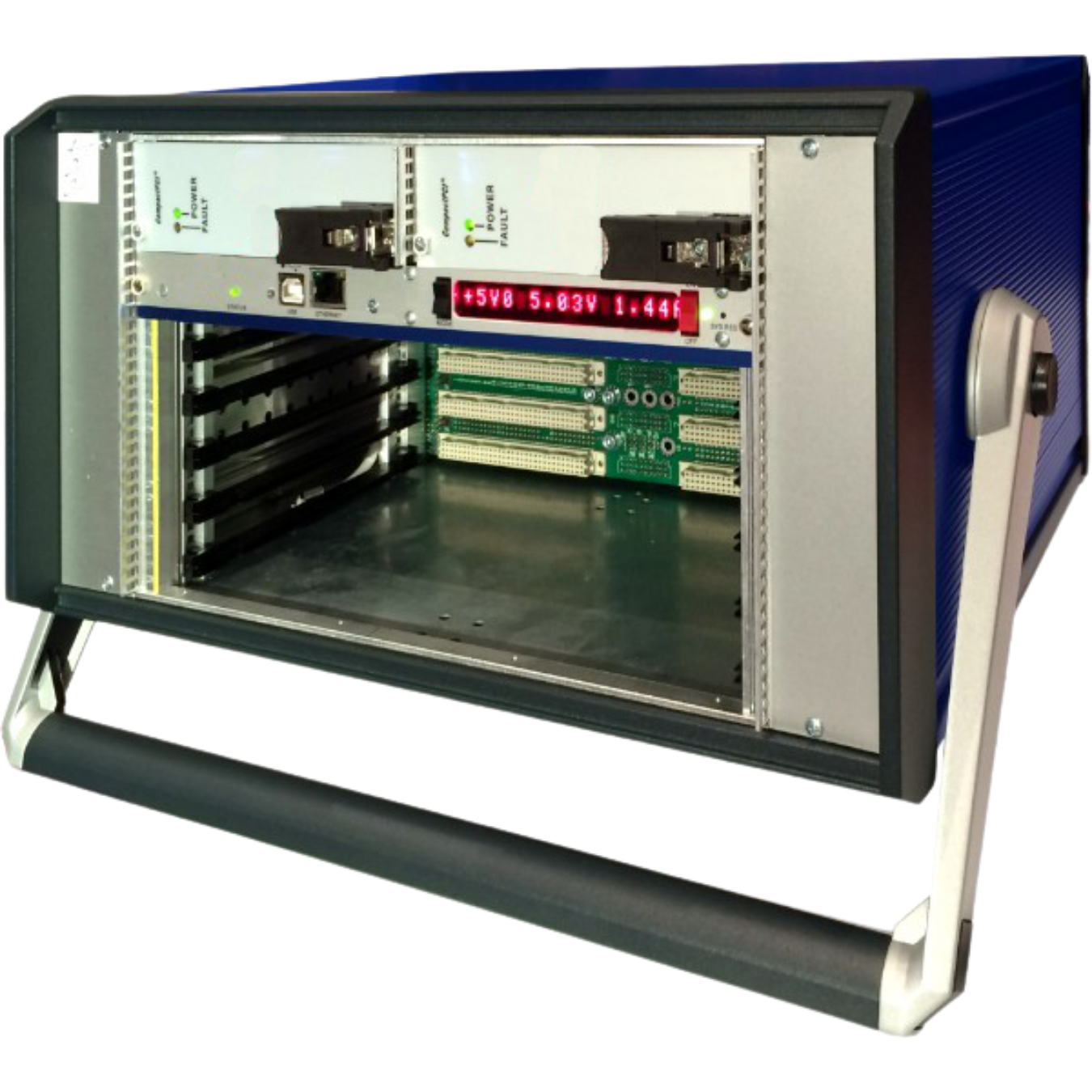

6U VME 554 Portable Chassis
Portable 5-slot 19″ VME/VME64 crate with redundant hot-swappable power supplies and comprehensive monitoring for mobile or bench-top applications.
- Hot-swappable redundant 250 W cPCI power supplies (1–2 units)
- 5-slot monolithic VME/VME64 backplane (6U × 160 mm modules)
- Built-in WIENER CML Shelf Manager with alphanumeric LED display (voltages, currents, fan speed, temperature, programming, status LEDs)
- Silent DC blower with rear-to-rear airflow; temperature-controlled cooling
- Programmable under/over-voltage and over-current trip points; active DC output discharge; thermal protection
Product Information
The VME 554 Portable Chassis is a lightweight and compact 19″ desktop crate ideal for mobile data acquisition, testing, and debugging tasks. It accommodates up to five 6U VME or VME64 modules and features redundant, hot-swappable 250 W cPCI power supplies for high reliability. The built-in WIENER CML Shelf Manager offers full local and Ethernet-based remote control and diagnostics of power, fan, and chassis parameters via an alphanumeric LED interface. Cooling is provided by a quiet DC blower with rear-to-rear airflow, and the system includes comprehensive protection and programming features. Global AC power compatibility and ergonomic portable housing (~10 kg) make it an excellent choice for flexible, field-ready setups.
Technical data
| Features | Compliant with VME / VME64 standard (6U × 160 mm) 5-slot configuration in portable desktop design Redundant, hot-swappable 250 W cPCI power supplies WIENER CML Shelf Manager with local and remote monitoring/control (LED, Ethernet, USB) Quiet DC blower with temperature-controlled rear-to-rear airflow Worldwide AC compatibility with PFC in a rugged, portable chassis (~10 kg) |
|---|
Variants
Select variants here

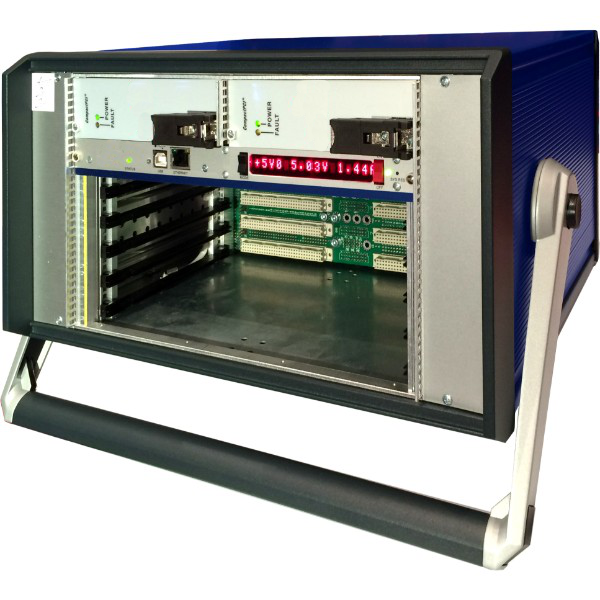

NIM_300_FT_X
12 Slots, ±6 V, ±12 V, ±24 V, 115 VAC, 300 W linear regulated PSU, integrated fan tray
The VME 554 Portable Chassis is a lightweight and compact 19″ desktop crate ideal for mobile data acquisition, testing, and debugging tasks. It accommodates up to five 6U VME or VME64 modules and features redundant, hot-swappable 250 W cPCI power supplies for high reliability. The built-in WIENER CML Shelf Manager offers full local and Ethernet-based remote control and diagnostics of power, fan, and chassis parameters via an alphanumeric LED interface. Cooling is provided by a quiet DC blower with rear-to-rear airflow, and the system includes comprehensive protection and programming features. Global AC power compatibility and ergonomic portable housing (~10 kg) make it an excellent choice for flexible, field-ready setups.
