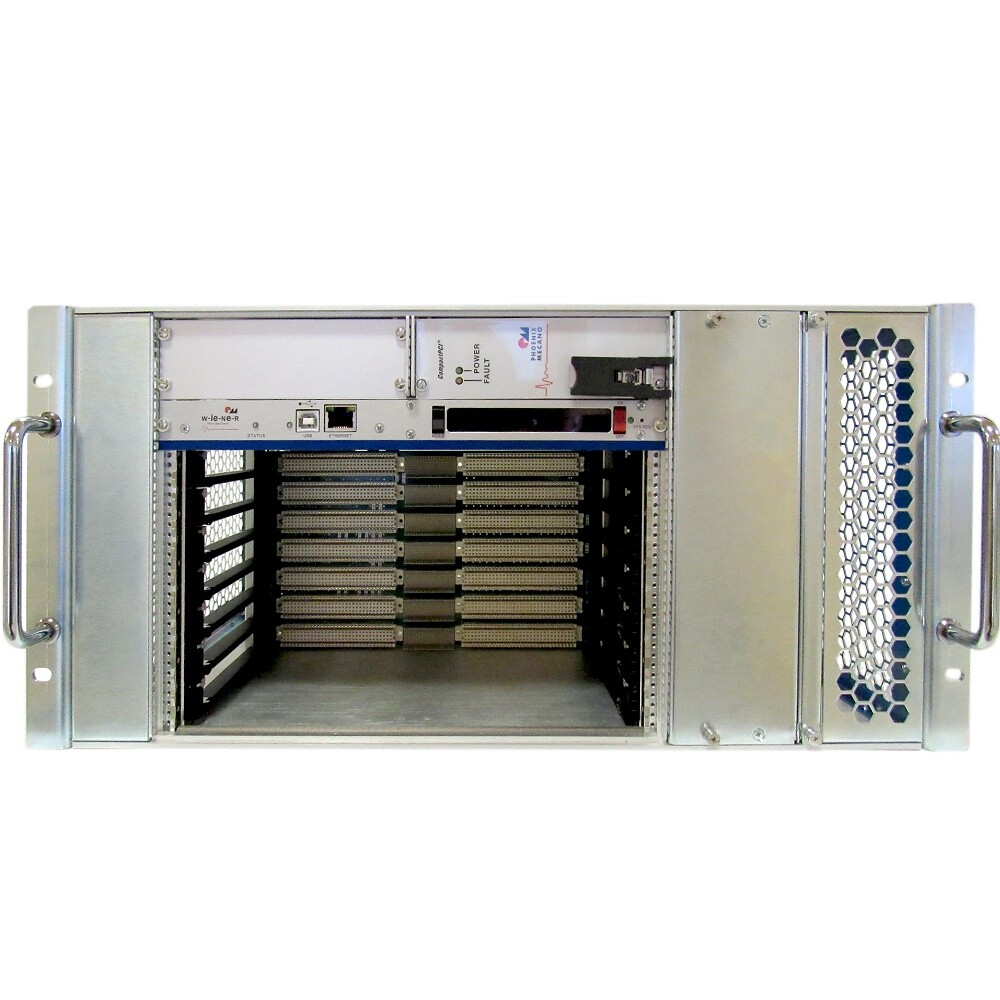

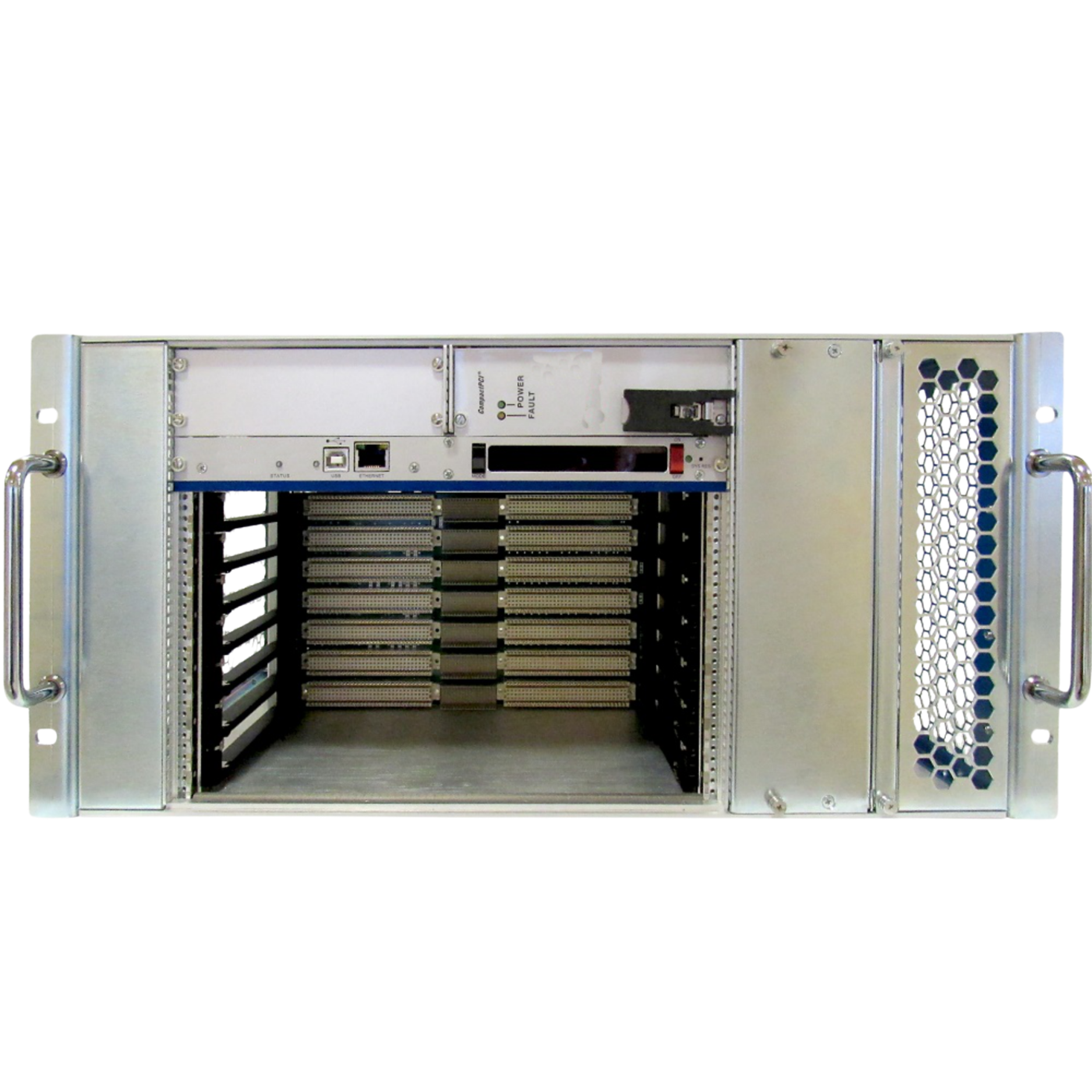

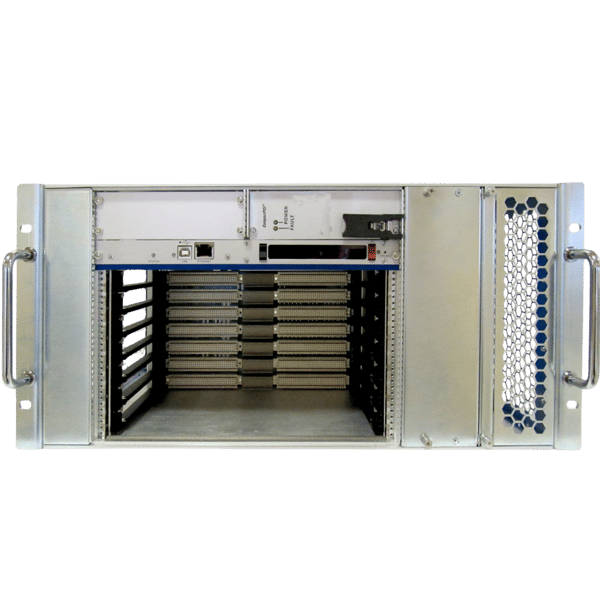

6U VME 475 Mini Chassis
Compact 7-slot 19″ VME crate with hot-swappable, redundant power supplies and flexible airflow for reliable performance in laboratory and industrial environments.
- Hot-swappable redundant plug-in power supplies (1–2 × 250 W cPCI units)
- Outputs: +5 V, ±12 V, +3.3 V (depending on PSU configuration)
- 7 slots (1 system + 6 user slots)
- 6U height, 19″ rack-mount or desktop design
- High-performance DC blower fan, speed and temperature controlled
Product Information
The VME 475 Mini Crate is a compact and modular 19″ chassis supporting up to seven VME modules (6U × 160 mm). It features hot-swappable, redundant 250 W cPCI power supplies for high availability. Cooling is ensured by a temperature-controlled, front-mounted DC blower with adjustable RPM and integrated air filter. The WIENER CML Shelf Manager offers full local and remote diagnostics and control via alphanumeric LED display, Ethernet, or USB. Flexible airflow paths, robust construction, and global AC compatibility make it ideal for demanding lab or industrial setups where reliability and flexibility are paramount.
Technical data
| Features | Compliant with VME / VME64 standard (6U × 160 mm modules) 7-slot configuration with rear transition access Redundant, hot-swappable 250 W cPCI power supplies High-RPM, front-side DC blower with temperature control and air filter Remote monitoring and control via WIENER CML Shelf Manager (Ethernet/USB) Wide-range AC input with PFC, rugged and compact design (~10 kg) |
|---|
Variants
Select variants here
NIM_300_X
12 Slots, ±6 V, ±12 V, ±24 V, 115 VAC, 300 W linear regulated PSU (optional fan tray available)
The VME 475 Mini Crate is a compact and modular 19″ chassis supporting up to seven VME modules (6U × 160 mm). It features hot-swappable, redundant 250 W cPCI power supplies for high availability. Cooling is ensured by a temperature-controlled, front-mounted DC blower with adjustable RPM and integrated air filter. The WIENER CML Shelf Manager offers full local and remote diagnostics and control via alphanumeric LED display, Ethernet, or USB. Flexible airflow paths, robust construction, and global AC compatibility make it ideal for demanding lab or industrial setups where reliability and flexibility are paramount.
