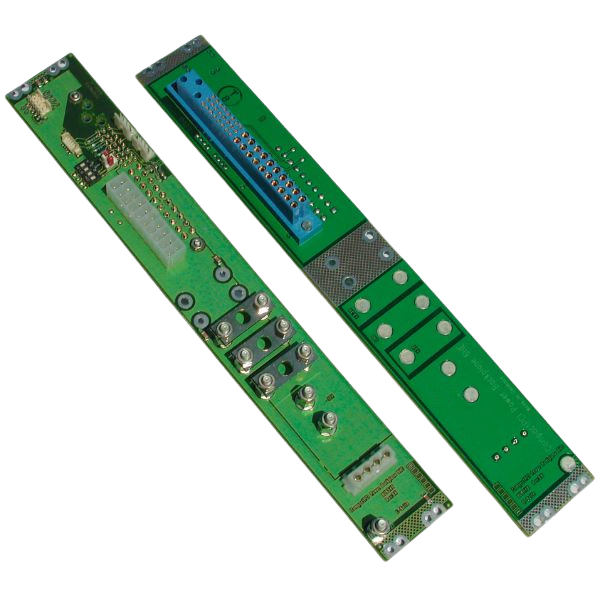

6U cPCI Power Backplanes
The 6U cPCI Power Backplanes are robust power distribution boards tailored to CompactPCI 6U systems.
- Available in 1, 2, 3, or 4 slot versions
- Uses P47 plug-in connector for power input
- Compliant with PICMG 2.0 and 2.11 power interface standards
- Supports parallel connection of multiple power backplanes
- Rugged across –40 °C to +85 °C, high humidity tolerance
Product Information
These backplanes conform to the PICMG 2.0 and 2.11 power interface standards and use a P47 plug-in connector for power input. Variants support 1 to 4 power slots, with parallel chaining capability for scalable power architectures.
The 6U cPCI Power Backplanes from Kontron HARTMANN-WIENER provide the critical power distribution infrastructure for CompactPCI systems in 6U format. They follow the PICMG 2.0 and 2.11 power interface standards, ensuring compatibility and interoperability. With a P47 plug-in power connector, these backplanes allow for clean and modular power input. The support for parallel chaining lets system designers scale power distribution across multiple backplane boards in larger rack systems. Their robust design — with wide temperature and humidity ratings and flame-retardant materials — ensures reliability in demanding industrial environments.
Technical data
| Features | "Form Factor: 6U height Supported Slots: 1, 2, 3, or 4 slots Connectors / Power Input: P47 plug-in power connector Standards / Base Spec: PICMG 2.0, PICMG 2.11 Parallel Support: Supports parallel connection of multiple backplanes Base Material: FR-4, UL 94 V-0 Operating Temperature: –40 °C to +85 °C Relative Humidity: 90 %, non-condensing Part / Variant Examples: 36L1000014: 6U, 1-slot, L1 variant, P47 connector 36L0020024: 6U, 2-slot, ECO variant, P47 connector 36L1000034: 6U, 3-slot, L1 variant 36L1000044: 6U, 4-slot, L1 variant, supports parallel chaining" |
|---|
