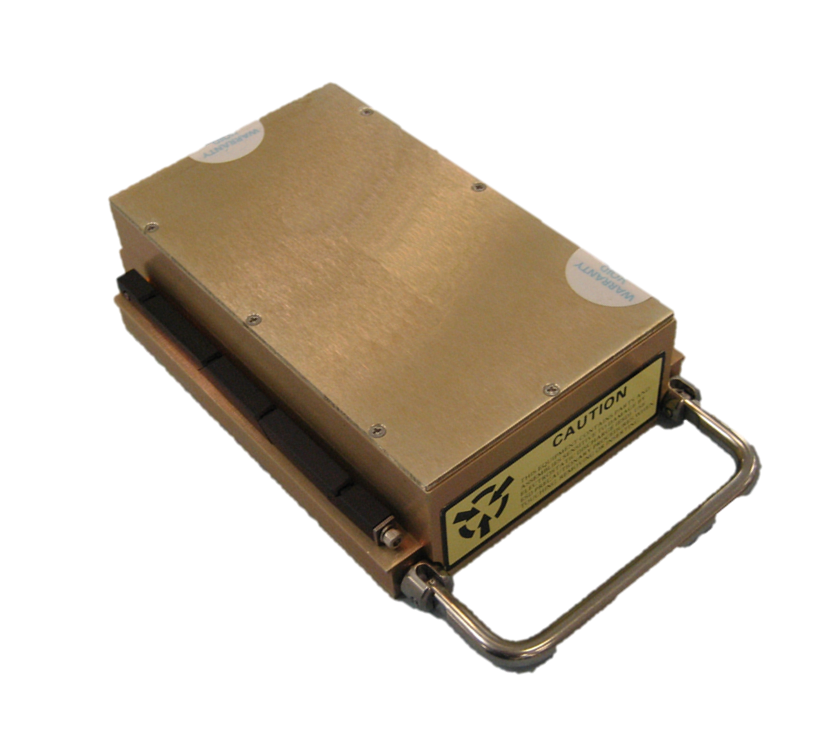

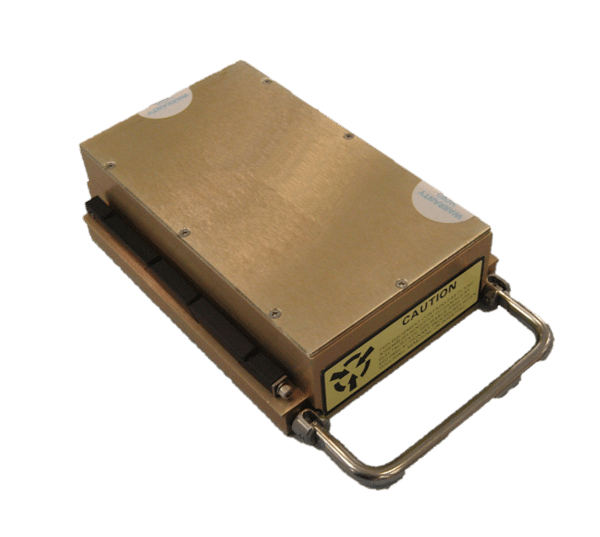

3U Rugged PSU

3U, Rugged 28VDC Input 200W PSU

Specifications

3U, Rugged 28VDC Input 200W PSU
DC Output: +3.3V, +5V, +/- 12V
MIL-STD-704A
Conduction Cooled

Download Datasheet

PN 5005699-1 / PSU-5970-PDC / Price is $6,475

Features

Form Factor

3U PSU, Conduction Cooled

Input Voltage

+28VDC (22-29VDC)

Power connector

DCMMY21WA4P

Temperature

40°C to +85°C

Vibration

Per MIL-STD-810E, Method 514.4, Cat 5

Shock

Per MIL
-STD
-810E, Method 516.5, Procedure I

EMI & Safety

Per MIL-STD-461

Downloads

Datasheets

Datasheet 5005699-1
[ kontron-5005699-1_ds.pdf, 315.31 KB, Aug.31.2017 ]

Manuals

General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
