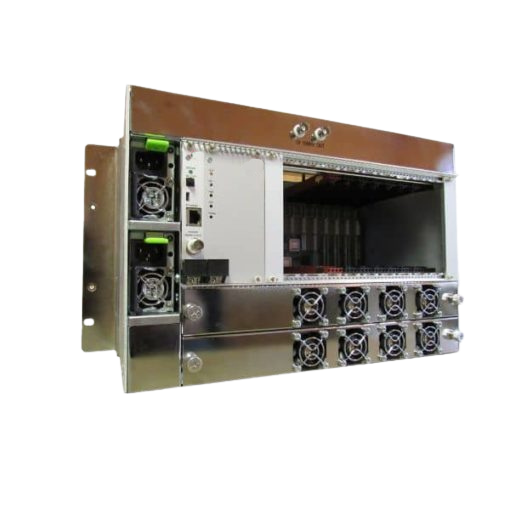

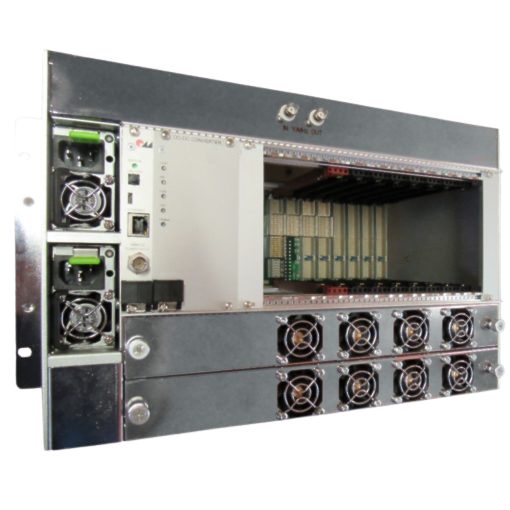

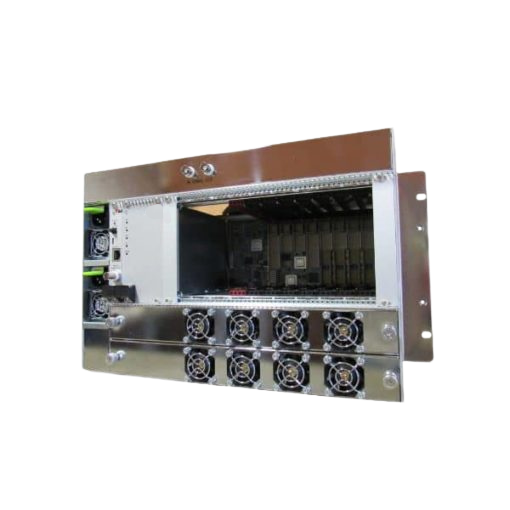

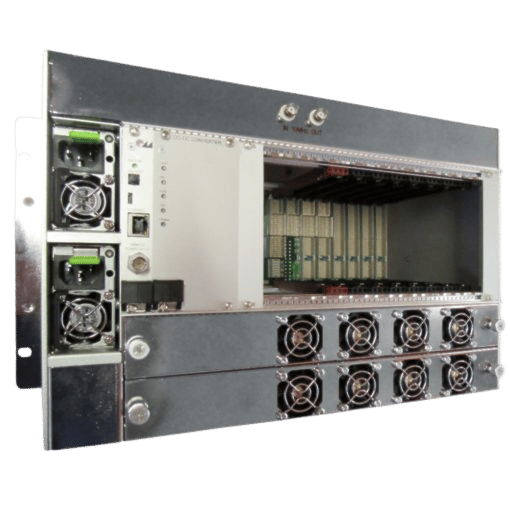

3U PXIe Chassis
Compact 3U chassis with 8 hybrid slots, redundant PSU and advanced cooling, ideal for modular test and measurement applications.
- PXIe mechanics for 3U × 160 mm modules
- 8-slot hybrid PXIe backplane
- 2 × 800 W redundant PSU
- Autoranging 94–260 VAC with PFC
- Redundant DC blower, hot-swap
Product Information
Compact, high-performance 3U PXIe chassis designed for rack, tower or desktop operation. Offers redundant power and cooling with extensive monitoring and remote control.
Technical data
| Features | 8-slot PXIe hybrid backplane Redundant hot-swap PSU modules Temperature-controlled fans Local LED display & remote Ethernet monitoring EMC/ESD-protected rugged design |
|---|
