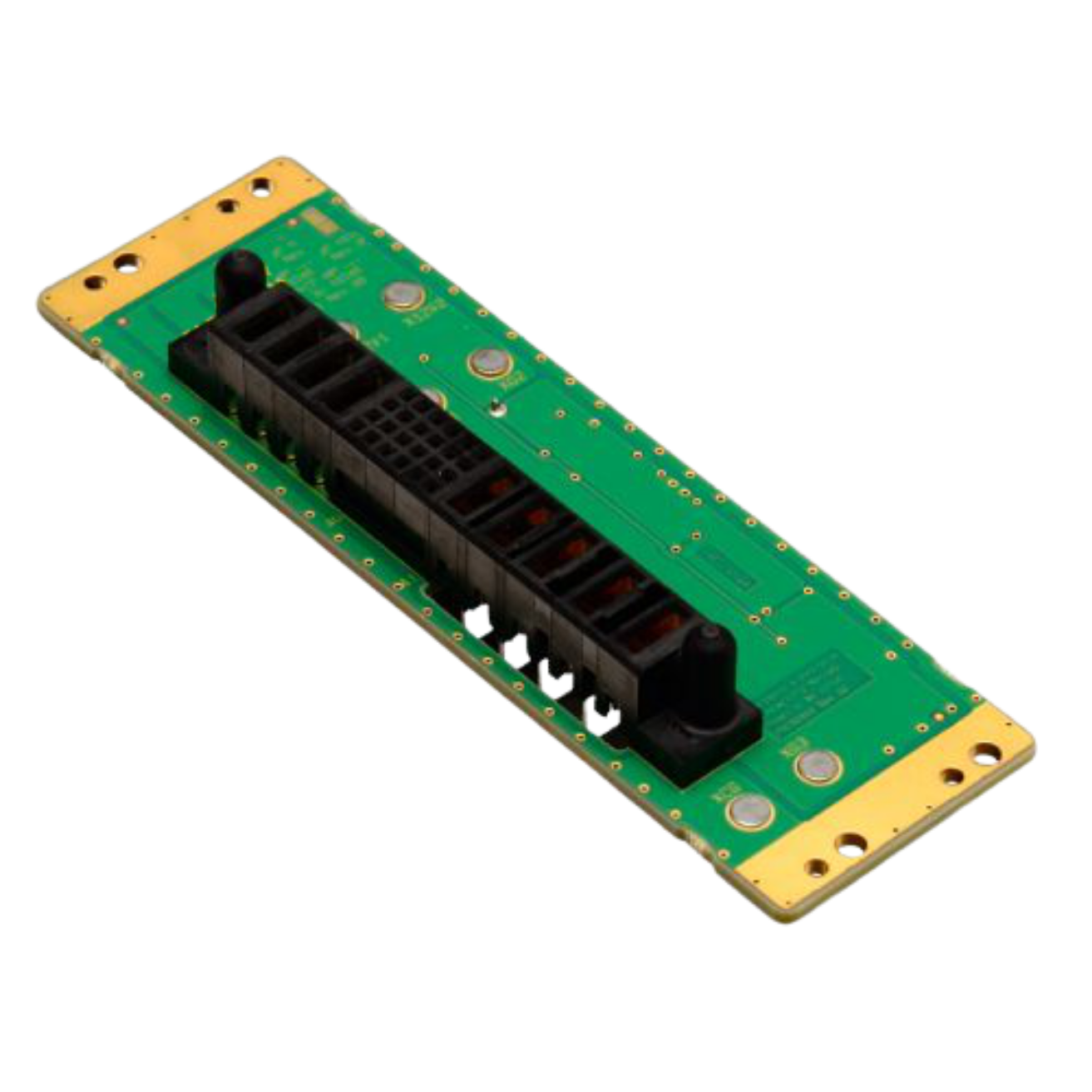

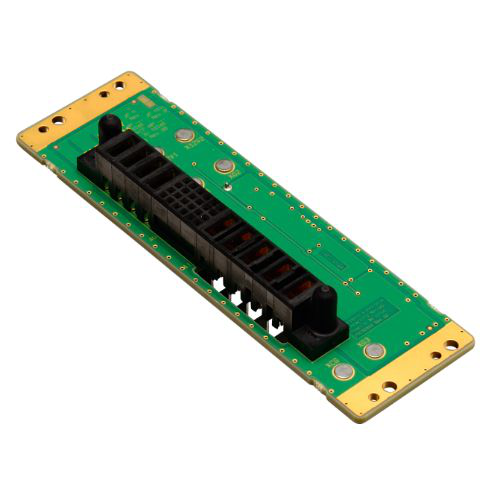

3U cPCI Serial Power Backplane
The 3U CompactPCI Serial Power Backplanes from Kontron Hartmann Wiener GmbH deliver reliable power distribution in a compact, industrial design.
Specifications
- CompactPCI Serial Standard (PICMG CPCI-S.0)
- Fully compliant with the CompactPCI Serial specification, enabling high-speed serial point-to-point communication.
- 3U Power Backplane Design
- Available in 1-slot and 2-slot configurations, optimized for compact industrial systems.
- High Current Capability
- Supports up to +12 V / 35 A and +5 V Standby / 2 A for reliable power distribution.
- Wide Input Voltage Range
- Universal power input supporting both VDC and VAC up to 265 VAC.
- Industrial-Grade Robustness
- Designed for harsh environments with an operating temperature range from −40 °C to +85 °C and UL 94 V-0 flammability rating.
CompactPCI Serial is an industrial standard for modular computer systems defined by the PCI Industrial Computer Manufacturers Group (PICMG) as CPCI-S.0. Unlike classic CompactPCI systems based on parallel PCI buses, CompactPCI Serial exclusively uses high-speed serial point-to-point connections, enabling modern system architectures without the need for switches or bridges in configurations with one system slot and up to eight peripheral slots.
Building on the evolution of the established PICMG 2.0 CompactPCI standard, Kontron Hartmann Wiener GmbH offers high-quality CompactPCI Serial power backplane solutions designed for demanding industrial applications. The use of a rugged connector technology enables high signal density while maintaining proven 19-inch mechanics according to IEC 1101 and supporting hot-swap capable system designs.

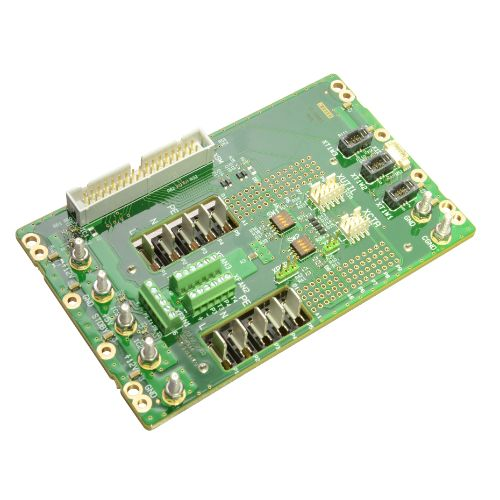

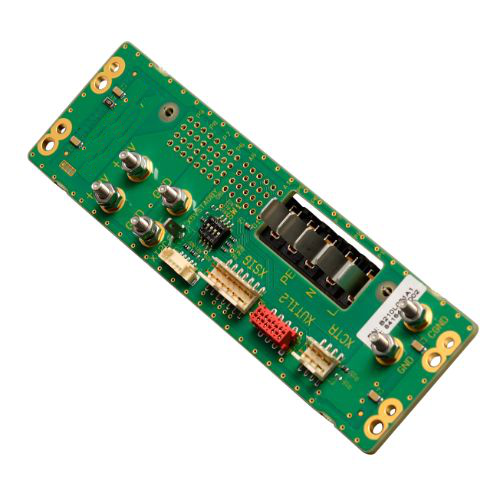

The 3U CompactPCI Serial Power Backplanes are available in 1-slot and 2-slot variants and support a universal input voltage for both AC and DC operation. Power is fed via M3 studs for +12 V and +5 V standby, ensuring secure and reliable power delivery. With an extended operating temperature range, high humidity tolerance, and robust FR-4 base material, these backplanes are well suited for harsh industrial environments where reliability and longevity are critical.
Downloads
Datasheets
3U cPCI Serial Power Backplane Datasheet
[ cpci-serial-power-backplane-r1-0-1-.pdf, 4.13 MB, Dec.18.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
