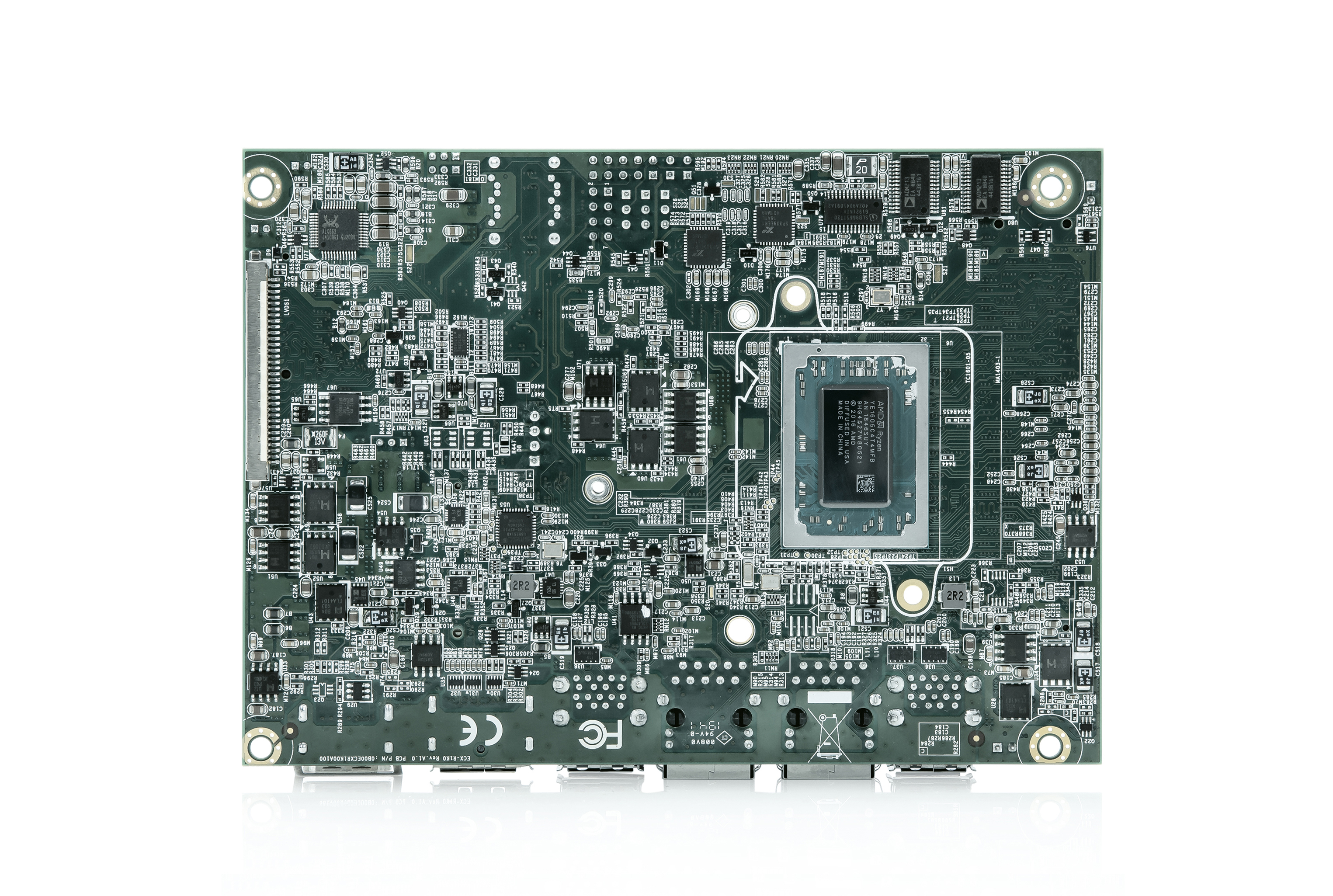

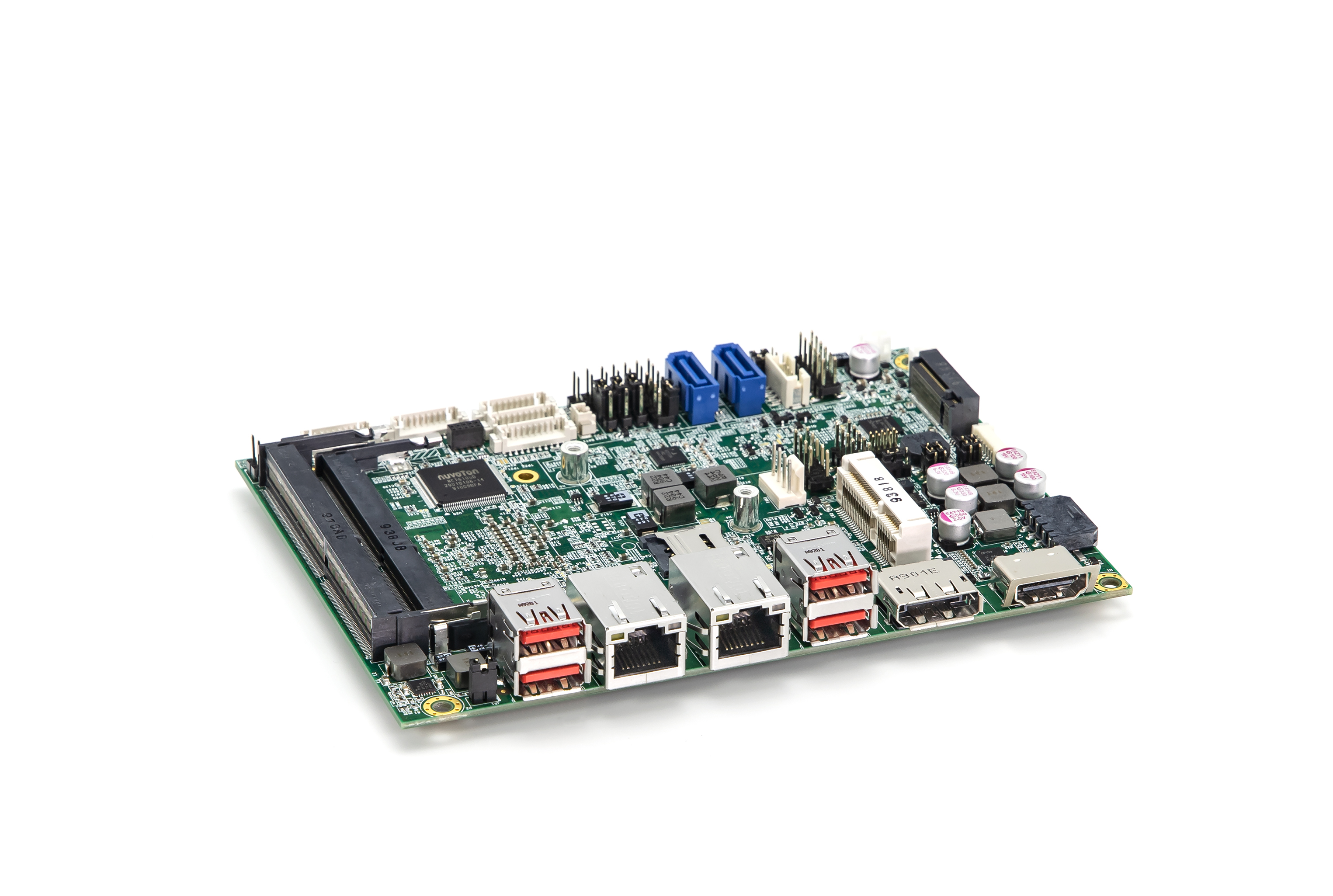

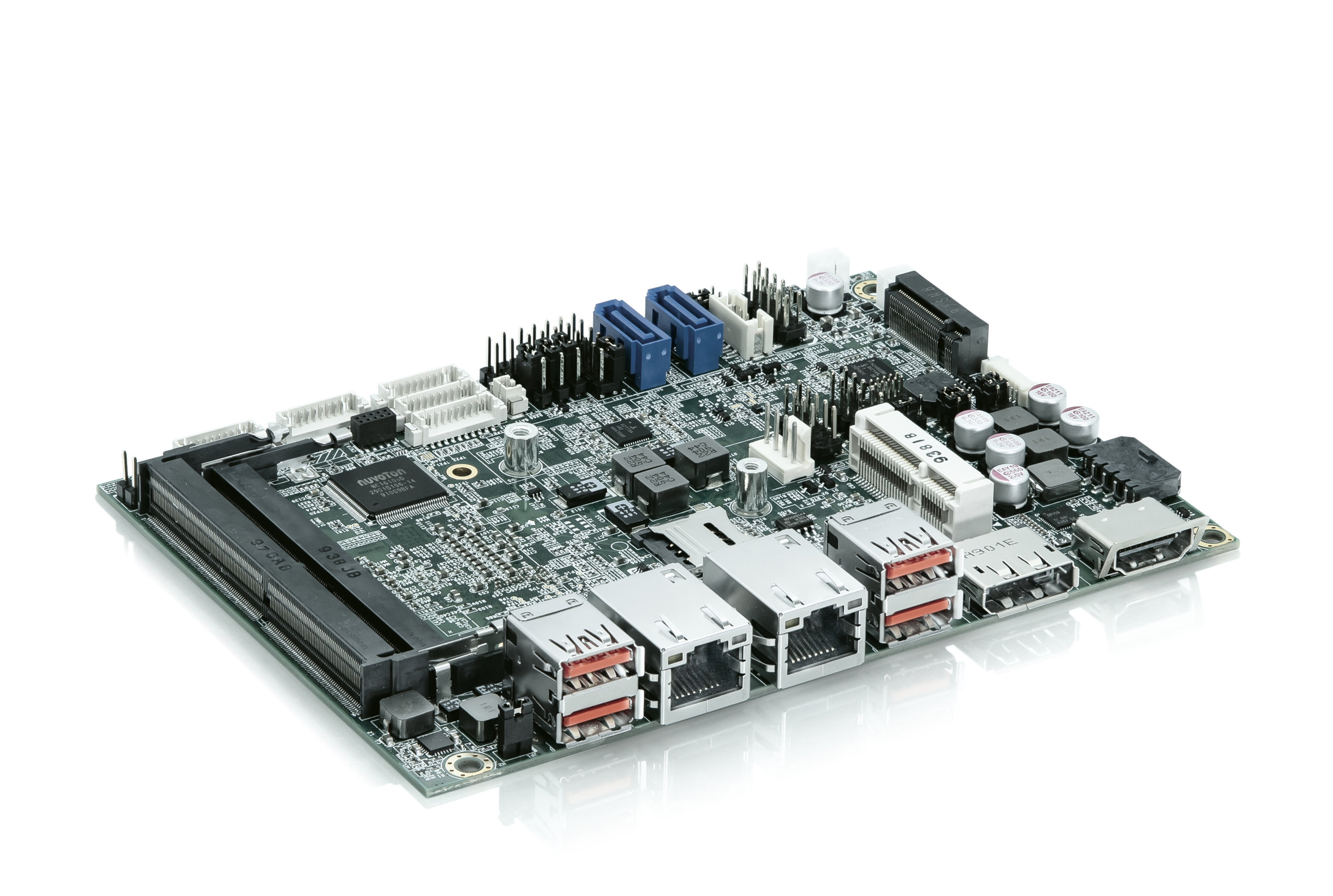

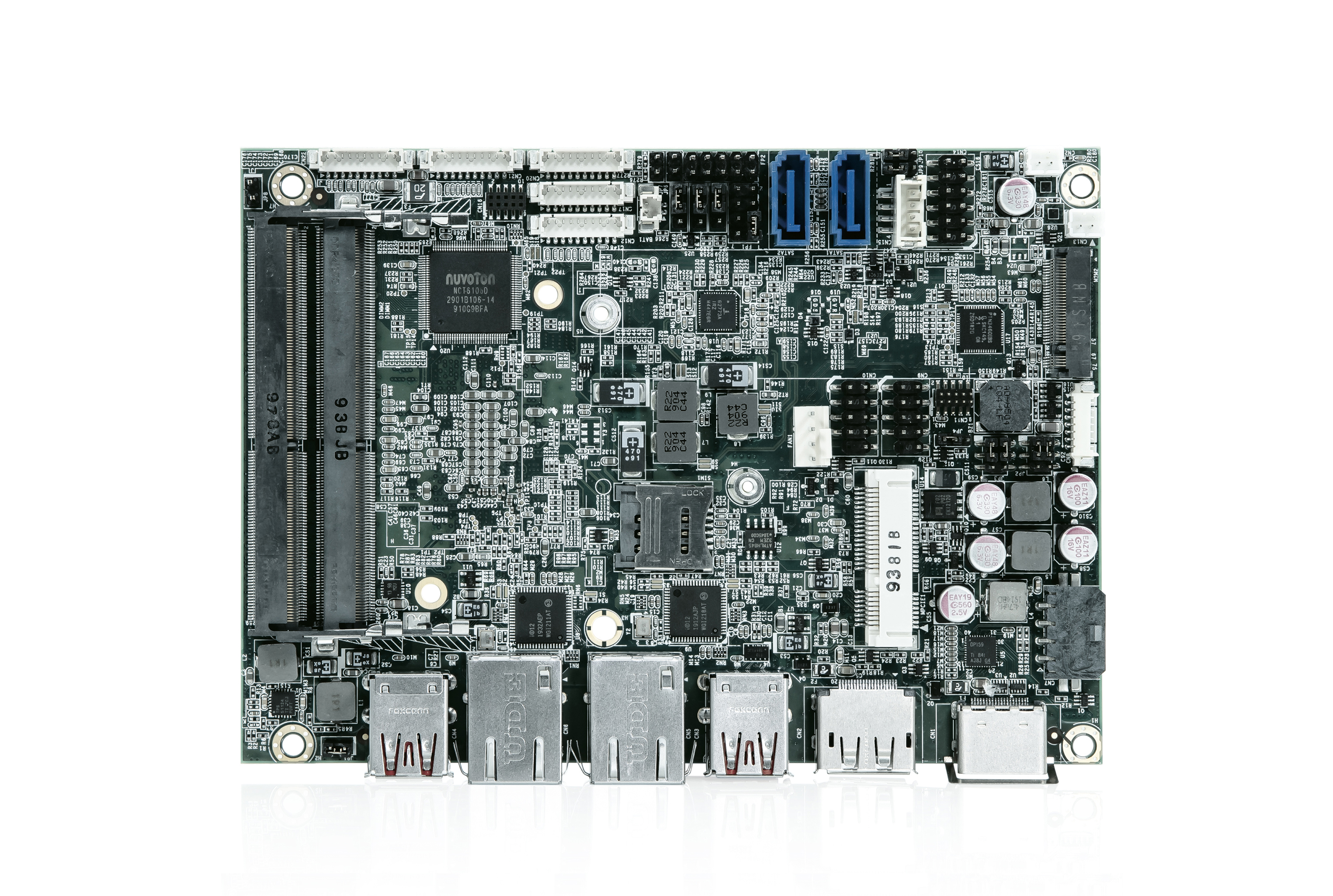

3.5"-SBC-VR1000

3.5" Single Board Computer with AMD Ryzen™ V1000 / R1000 Series Processors

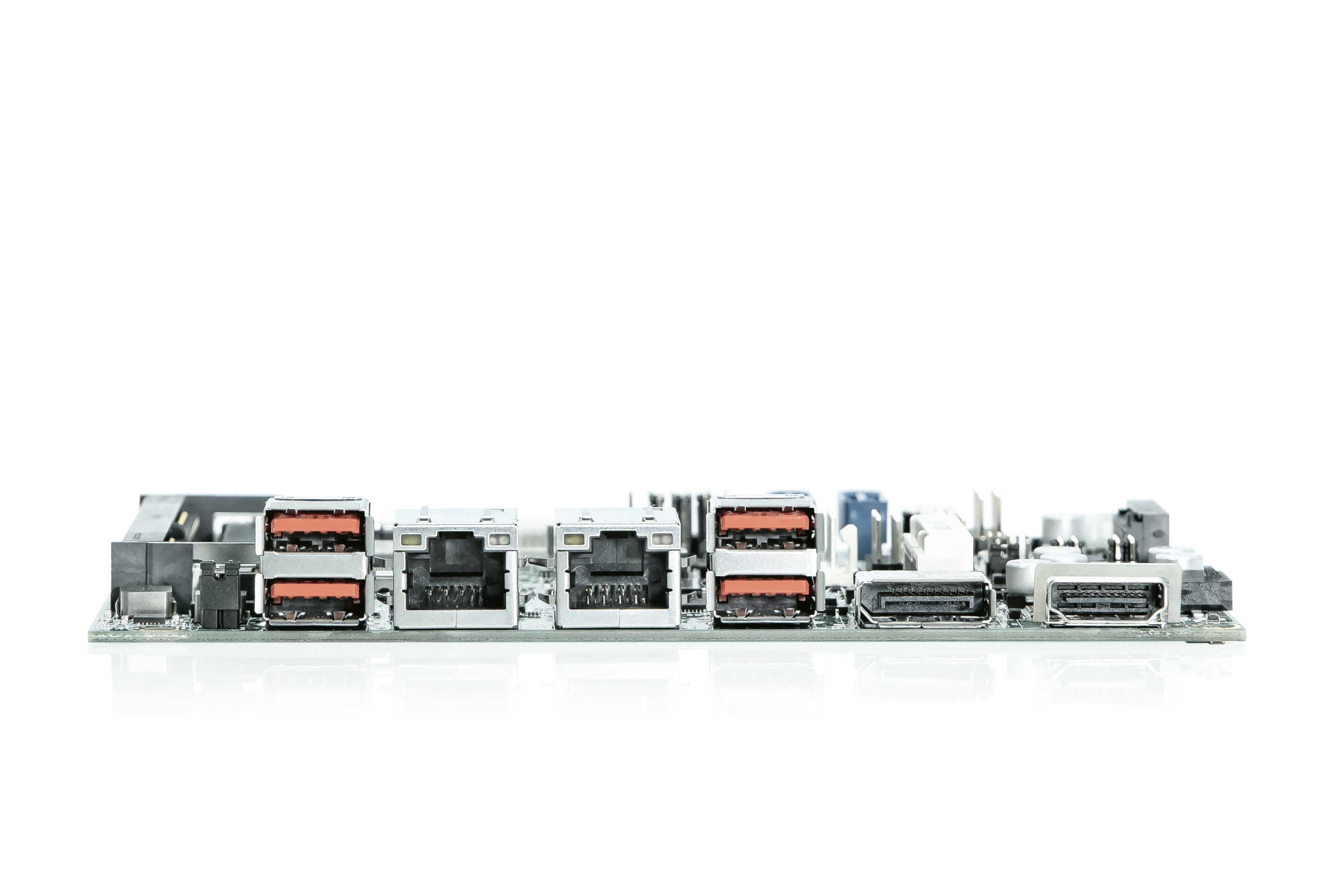

1x LVDS, 1x DP, 1x HDMI 2.0 for triple display support
2x GbE LAN for Ethernet
Up to 4x USB 3.2 Gen 2, up to 6x USB 2.0, 2x RS232/422/485, 2x RS232 for peripherals
8x DIO for device / signal control
2x SATA 3.0, 1x mPCIe, 1x M.2 Key M for storage & expansion

Request product Download datasheet

Ideal for Graphics Intensive Applications

Kontron 3.5"-SBC-VR1000 is a 3.5" single board computer (SBC) powered by AMD Ryzen™ V1000 / R1000 Series processors, which features excellent 4K playback under a fanless and low-power embedded design. It is a power efficient option for a wide range of compute-intensive graphics applications, such as digital signage, digital casino gaming, industrial control & automation, medical imaging, networking and thin clients.

In addition, 3.5"-SBC-VR1000 supports TPM 2.0 security for data protection and M.2 NVMe SSD which features much lower latency, compact form factor and high reliability. It can help integrators to easily develop a securer and smaller edge computing device.

Technical support

Technical data

Processor	AMD Ryzen™ V1605B (Quad Core, 4M Cache, 2.00 / 3.60 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ V1202B (Dual Core, 4M Cache, 2.30 / 3.20 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1606G (Dual Core, 4M Cache, 2.60 / 3.50 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1505G (Dual Core, 4M Cache, 2.40 / 3.30 GHz, FP5, 12 W ← 15 W → 25 W TDP) AMD Ryzen™ R1305G (Dual Core, 4M Cache, 1.50 / 2.80 GHz, FP5, 8 W → 10 W TDP)
Main Memory	2x DDR4 2400 SO-DIMM up to 32 GByte
Graphics	AMD Radeon™ Vega 8 (V1605B) AMD Radeon™ Vega 3 (V1202B, R1606G, R1505G & R1305G)
Display	1x LVDS (18/24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x DP (4096 x 2160 @ 60 Hz, on rear) 1x HDMI 2.0 (3840 x 2160 @ 60 Hz, on rear) Triple Display Support
Audio Controller	Realtek ALC888S

Downloads

Variants

Select variants here

3.5"-SBC-VR1000-0-R1606G

43016-0000-26-2

AMD Ryzen™ R1606G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0

3.5"-SBC-VR1000-1-R1505G

43016-0000-24-2

AMD Ryzen™ R1505G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0

3.5"-SBC-VR1000-2-V1605B

43016-0000-20-4

AMD Ryzen™ V1605B + Radeon™ Vega 8, 4x USB 3.2 Gen 2, 4x USB 2.0

3.5"-SBC-VR1000-3-V1202B

43016-0000-23-2

AMD Ryzen™ V1202B + Radeon™ Vega 3, 4x USB 3.2 Gen 2, 4x USB 2.0

3.5"-SBC-VR1000-8-R1305G

43016-0000-15-2

AMD Ryzen™ R1305G + Radeon™ Vega 3, 2x USB 3.2 Gen 2, 6x USB 2.0

Accessories

Select accessories here

DC Jack Cable

1064-2433

2.5 DC Jack cable with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm

COM_Port Cable

1064-2427

D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm

DIO Cable

1065-3137

D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm

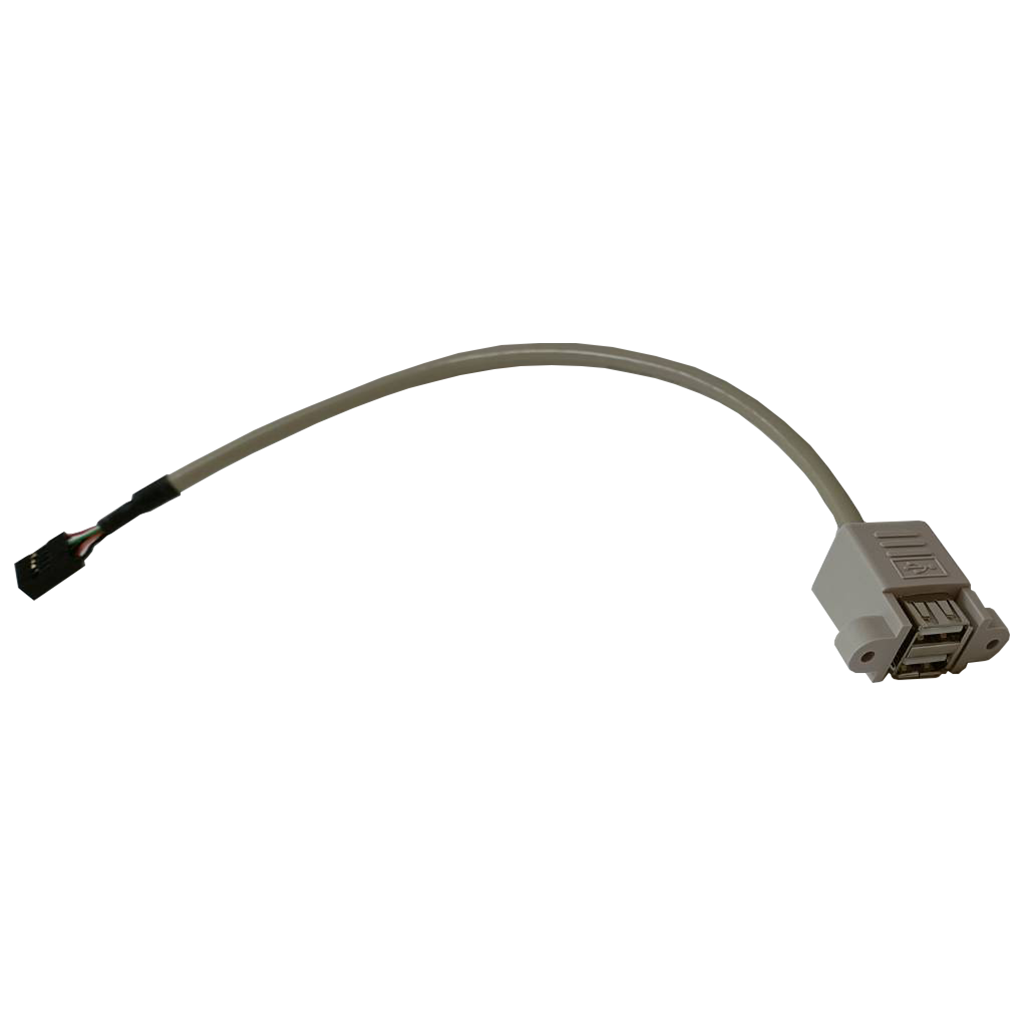

2 Ports USB 2.0 Cable

1064-2429

USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm

SATA Cable with Lock

1064-2431

SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm

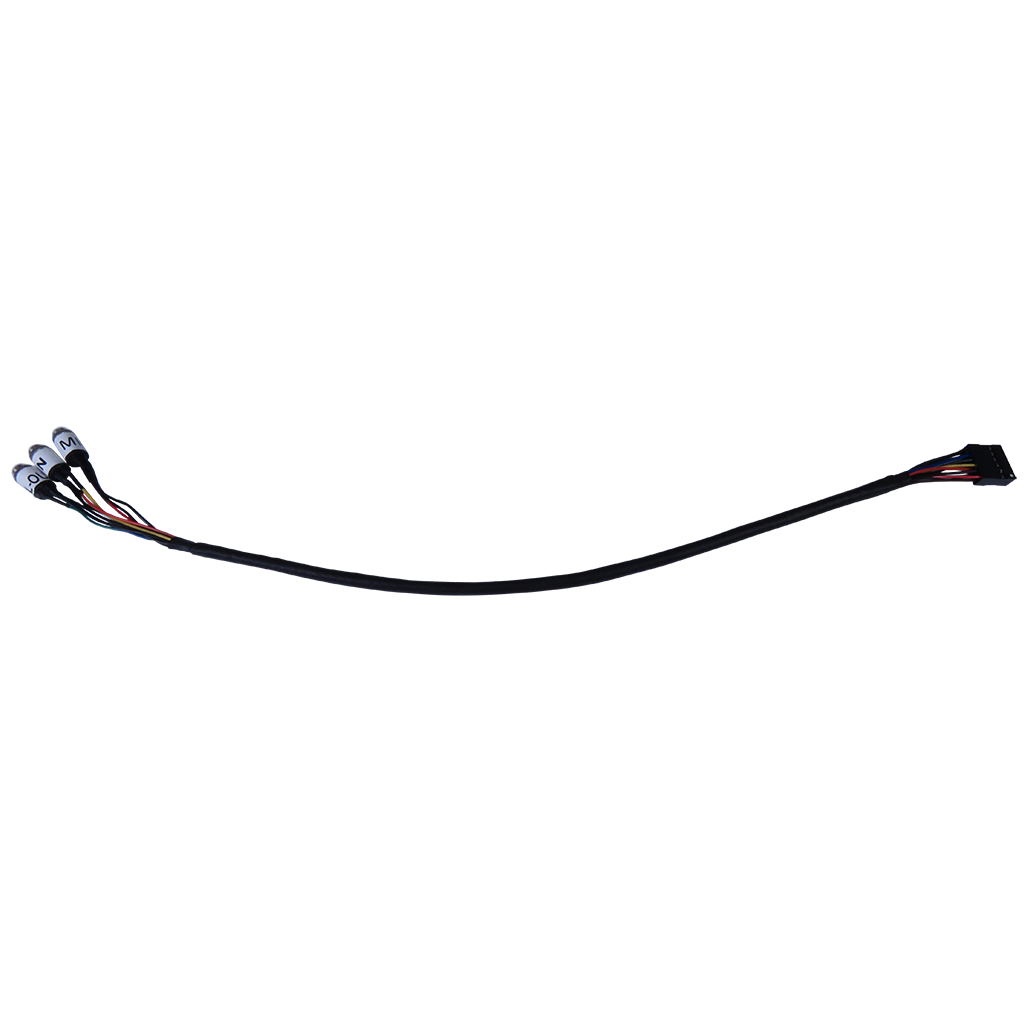

Audio Cable

1064-2432

2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm

SATA Power Cable

1064-2430

SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm

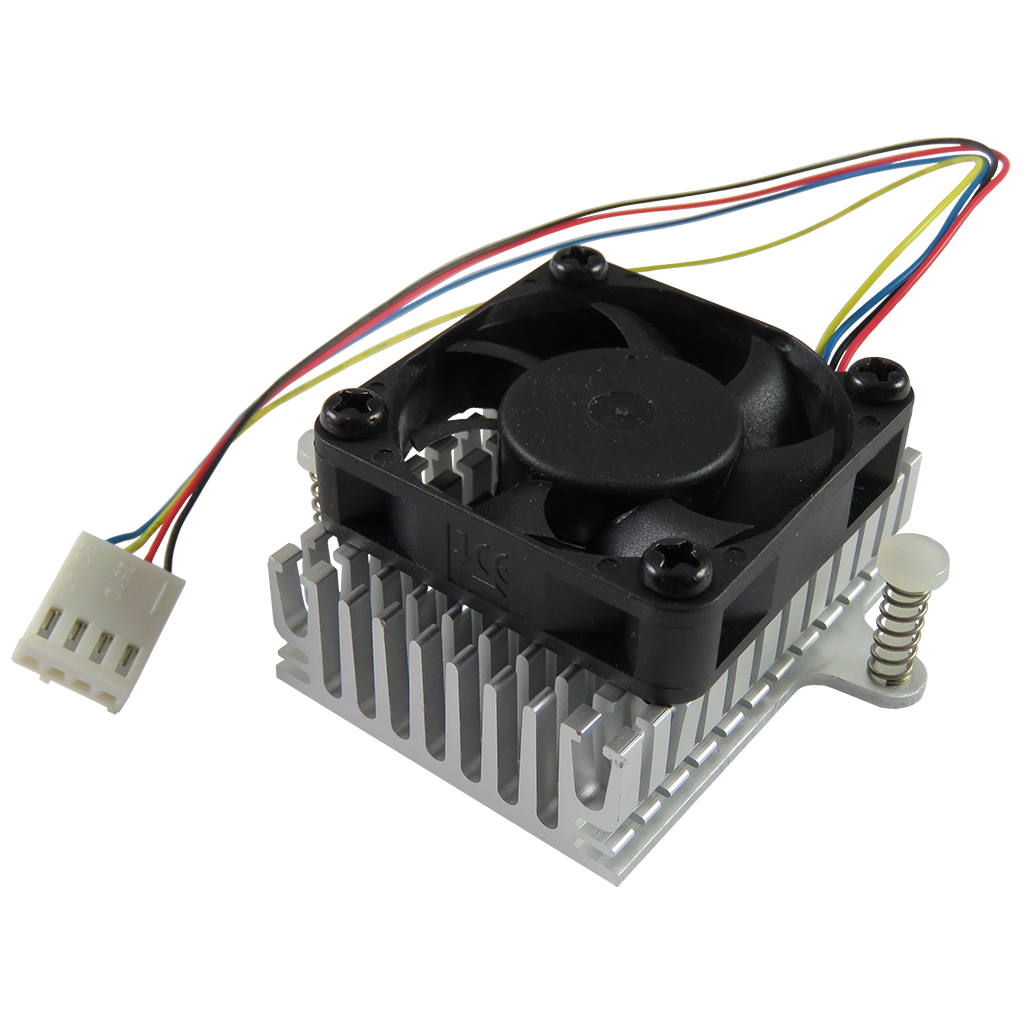

Active Cooler for 3.5"-SBC-VR1000

1067-5533/01

CPU Cooler w/ 22 x 14 x 0.15 mm Thermal Pad + 5800 RPM 7.0 CFM Fan
