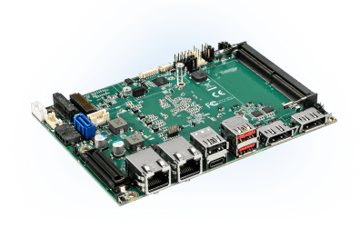

3.5"-SBC-AML/ADN
3.5" Single Board Computer with Intel Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
3.5"-SBC-TGL Datasheet
1.12 MB | March 26, 2026
3.5"-SBC-TGL
3.5" Single Board Computer with 11th Gen Intel® Core™ U-Series & Celeron® 6000 Series Processors
- Native AI inferencing capabilities
- 8K UHD video output support
- Time Coordinated Computing / Time Sensitive Networking for real-time control
- Various expansion capabilities: next-gen M.2 sockets & board-to-board connector
- Hardware-based protection against malware and sophisticated cyberattacks
Dramatic Leap in Graphics Performance
Ideal for AI / Deep Learning Applications

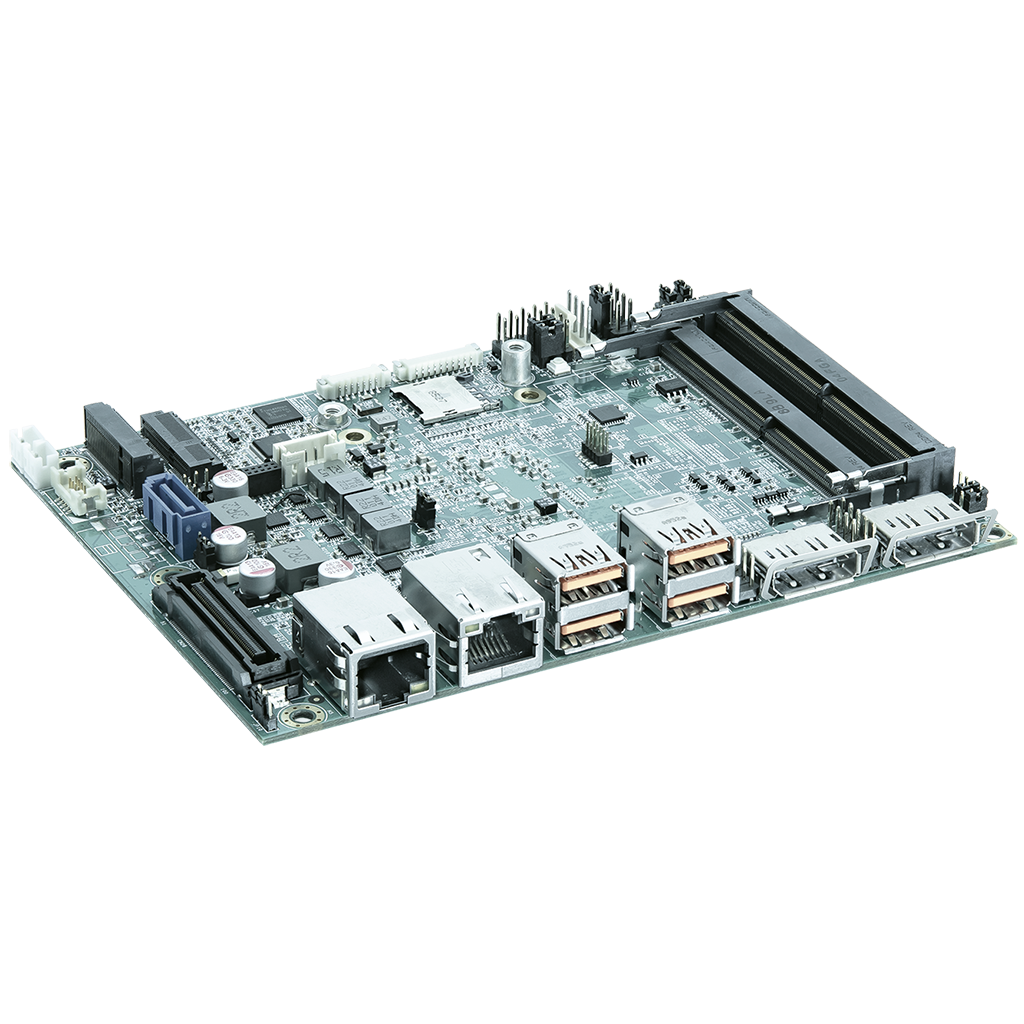

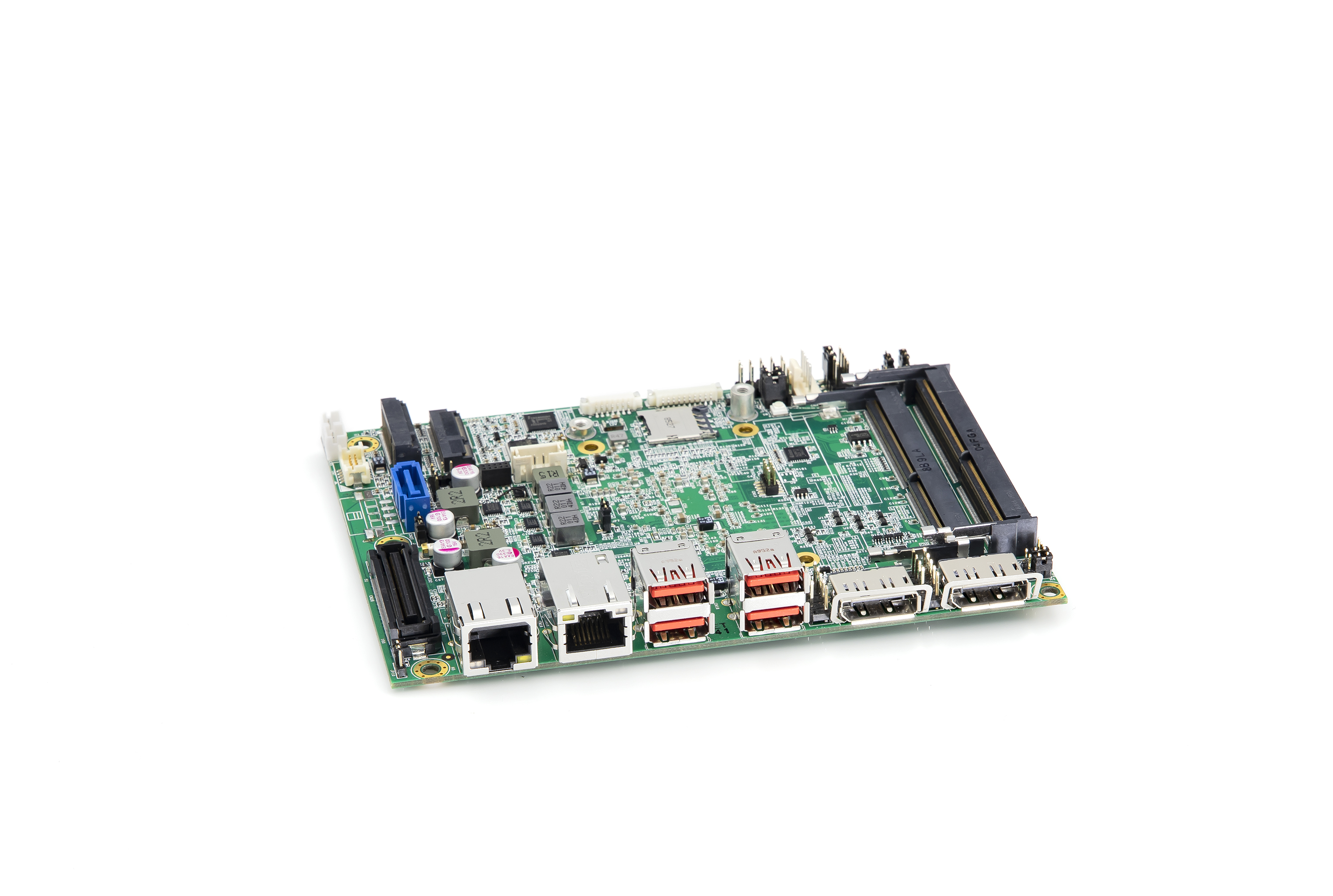

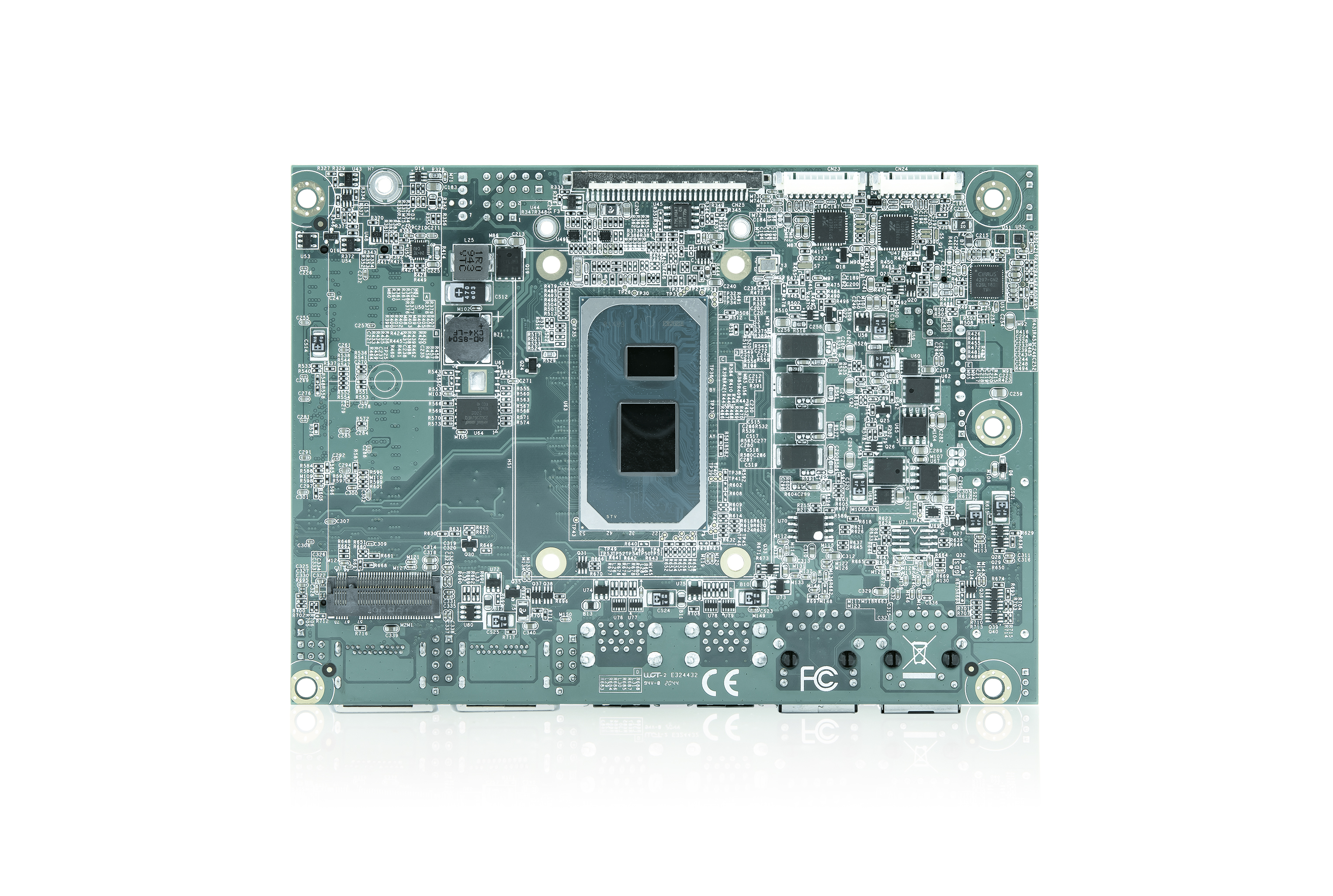

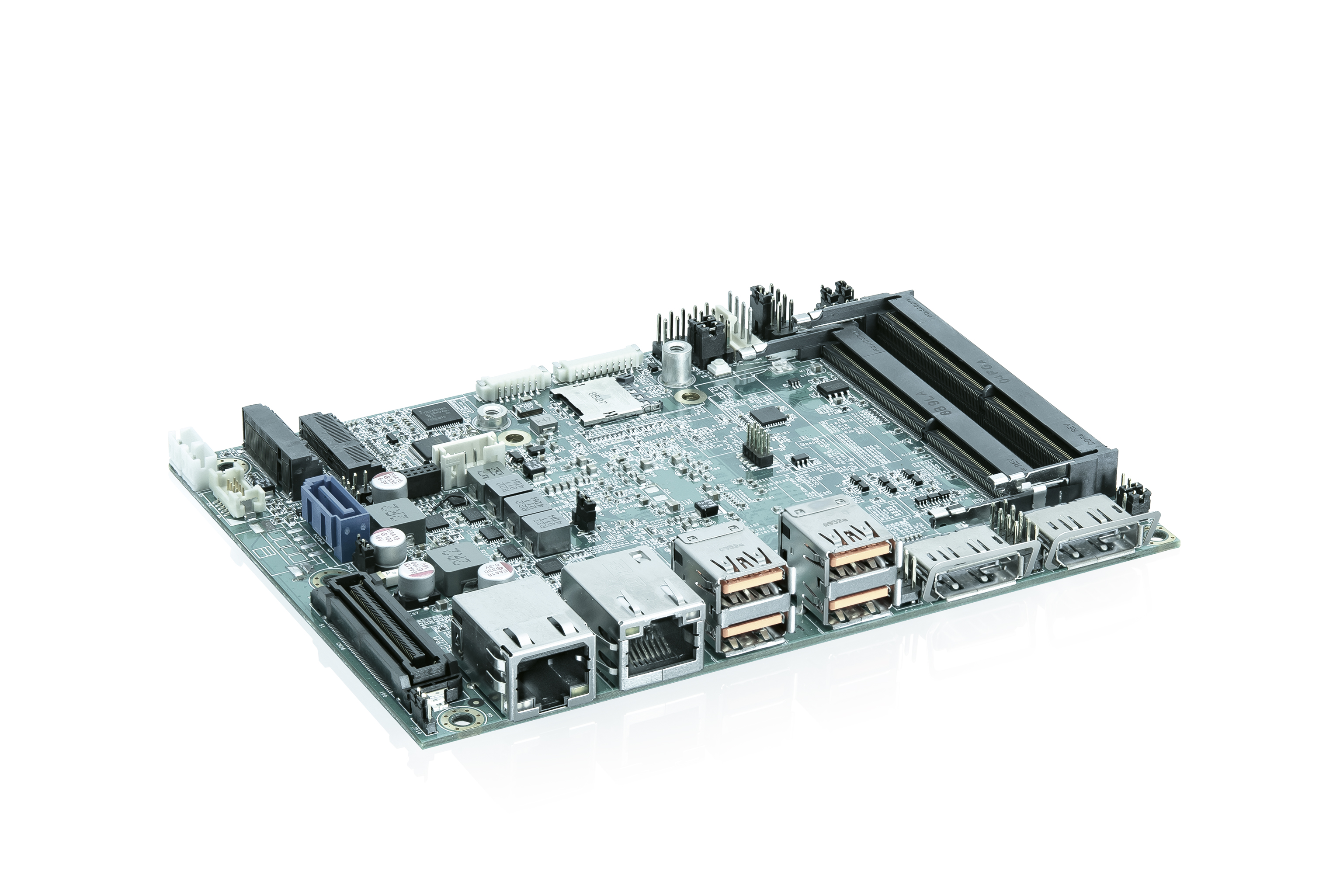

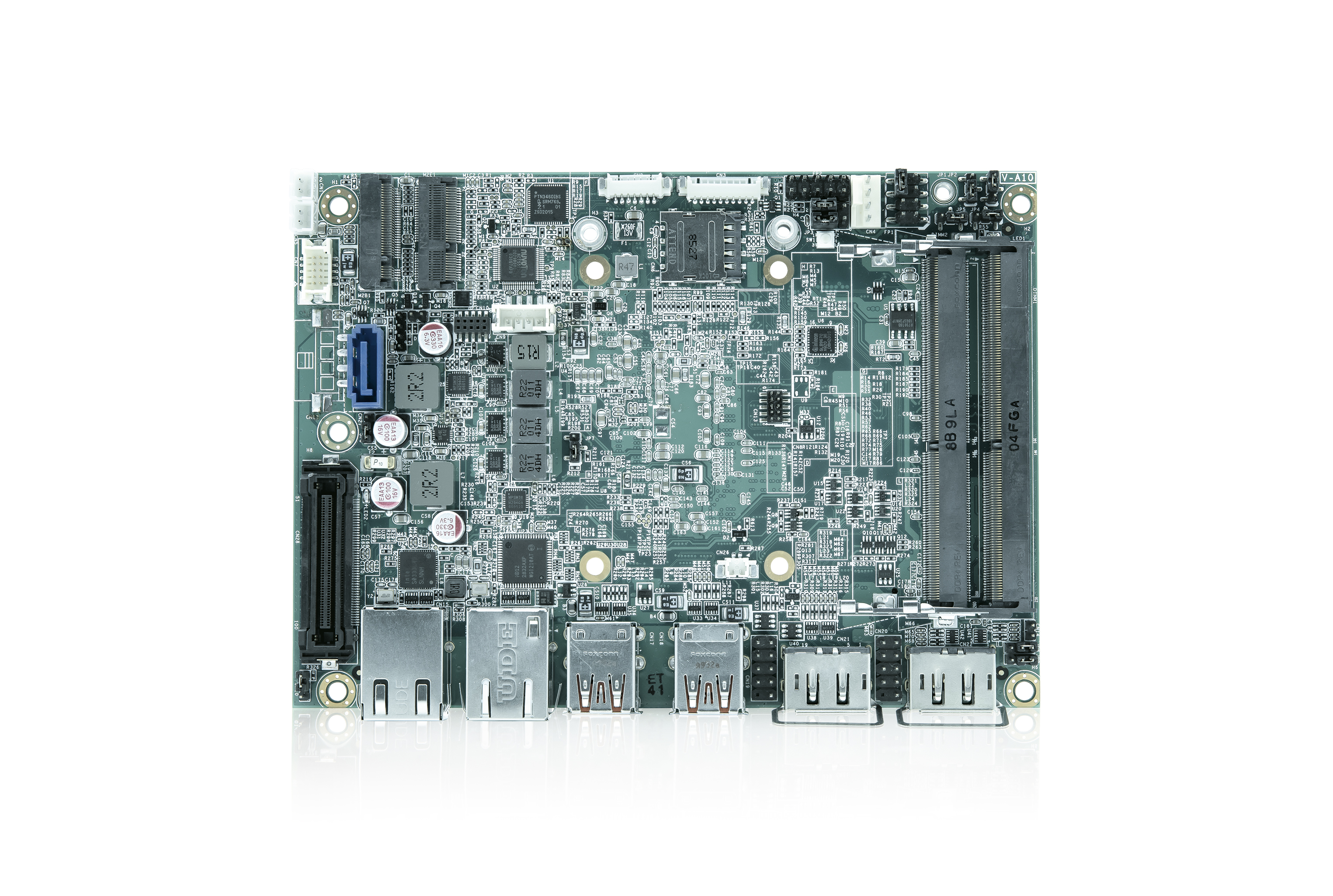

3.5"-SBC-TGL is a 3.5″ single board computer powered by 11th Generation Intel® Core™ U-Series and Celeron® 6000 Series processors (codenamed Tiger Lake UP3) integrated with Intel’s next-generation Iris® Xe Graphics. It delivers massive improvements in processing, graphics and AI performance, ideal for AI, deep learning and similar applications that demand high-speed processing, computer vision and low-latency deterministic computing.
8K Ultra HD Video Outputs
The board supports up to two 8K video streams at 60 fps. Via the extended B2B connector, it can support four channels of DP signal outputs to drive four independent displays running 4K video at 60 fps and thus it can be integrated into a 2 x 2 or 4 x 1 video wall system.
Optimized Bandwidth Utilization
In addition to a GbE LAN port, the 3.5"-SBC-TGL offers another 2.5 GbE LAN port to satisfy the growing bandwidth-intensive needs, enabling faster networking, smoother multimedia playback, web-/cloud-based services and daily usage.
Flexibility In System Design & Performance
In addition, the board supports configurable TDP done via BIOS settings, which provides flexibility to integrators to design a system according to the cooling techniques they use and the application scenarios they target.
Harsh Environment Applications Possible
The 3.5"-SBC-TGL offers variants with industrial-grade operating temperature range from -40 °C to 85 °C, allowing integrators to develop a robust system installed in an extreme-temperature environment.
Technical data
| Processor | Intel® Core™ i7-1185G7E / Intel® Core™ i7-1185GRE
(4C, 12M, 1.8 / 4.4 GHz, 12 W ← 15 W → 28 W TDP) Intel® Core™ i5-1145G7E / Intel® Core™ i5-1145GRE (4C, 8M, 1.5 / 4.1 GHz, 12 W ← 15 W → 28 W TDP) Intel® Core™ i3-1115G4E (2C, 6M, 2.2 / 3.9 GHz, 12 W ← 15 W → 28 W TDP) Intel® Celeron® 6305E (2C, 4M, 1.8 GHz, 15 W TDP) |
|---|---|
| Main Memory | 2x DDR4 3200 SO-DIMM up to 64 GByte |
| Graphics Controller | Intel® Iris® Xe Graphics (Core™ i7 / i5) Intel® UHD Graphics (Core™ i3 / Celeron®) |

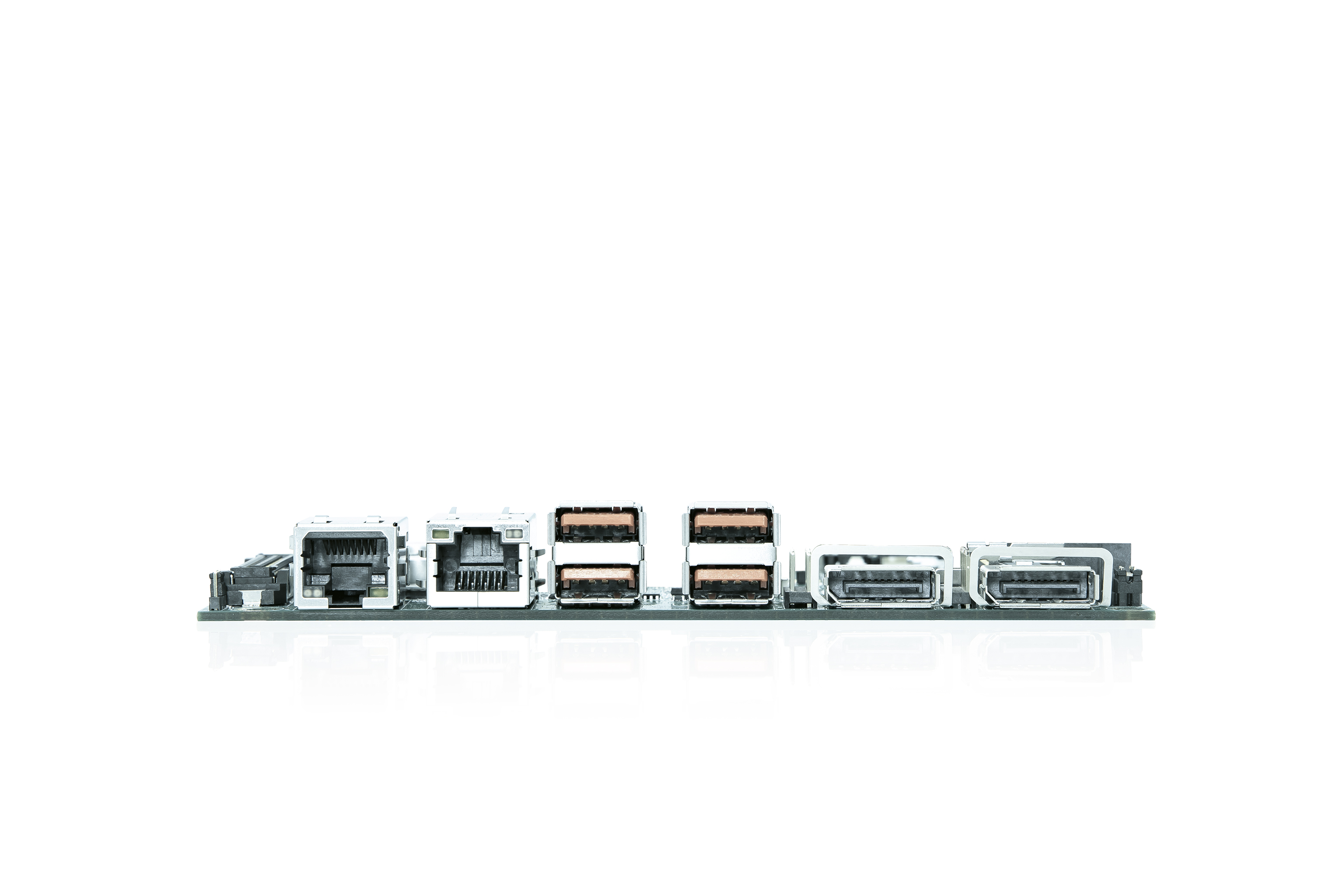

| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP (7680 x 4320 @ 60 Hz, on rear)* (* 2x 8K support for Core™ i7 / i5, 1x 8K support for Core™ i3 / Celeron®) Quadruple Display (more display I/Os supported via extended B2B connector) |
| Audio Controller | TSI 92HD91B |
Downloads
Manuals
General Safety Instruction
628.88 KB | March 26, 2026
3.5"-SBC-TGL User Guide
1.93 MB | March 26, 2026
3.5"-SBC-TGL Quick Installation Guide
869.46 KB | March 26, 2026
3.5"-SBC Copper Pillar, Thermal Solution & eIO Installation Guide
594.85 KB | March 26, 2026
3.5"-SBC M.2 Module Installation Guide
119.86 KB | March 26, 2026
Technical Specification
3.5" SBC Tech Spec Sheet
14.12 MB | March 26, 2026
Success Story
Accelerated claims settlement after hail damage with AI
Use Case
3.5"-SBC-KBL/TGL Empowers a Hardness Tester to Eliminate Unwanted Measurement Tolerance
Hardness Testing Machine
Related products & solutions
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Variants
Select variants here
3.5”-SBC-TGL-0-i5-1145G7E
Order Code: 43017-0000-15-4 Intel® Core™ i5-1145G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C.
Intel® Core™ i5-1145G7E, w/ B2B connector, w/ vPro, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-1-i3-1115G4E
Order Code: 43017-0000-22-2Intel® Core™ i3-1115G4E, B2B connector, vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C
Intel® Core™ i3-1115G4E, w/ B2B connector, w/o vPro, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-2-i7-1185G7E
Order Code: 43017-0000-18-4Intel® Core™ i7-1185G7E, B2B connector, vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
Intel® Core™ i7-1185G7E, w/ B2B connector, w/ vPro, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-3-6305E
43017-0000-18-2
Order Code: 43017-0000-18-2Intel® Celeron® 6305E, B2B connector, TDP 15W, Operating temperature: 0 °C ~ 60 °C
Intel® Celeron® 6305E, w/ B2B connector, w/o vPro, Operating temperature: 0 °C ~ 60 °C
3.5”-SBC-TGL-4-i7-1185GRE-XT
Order Code: 43017-0000-18-4XTIntel® Core™ i7-1185GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -40 °C ~ 85 °C
Intel® Core™ i7-1185GRE, w/ B2B connector, w/ vPro, Operating temperature: -40 °C ~ 85 °C
3.5”-SBC-TGL-5-i5-1145GRE-XT
Order Code: 43017-0000-15-4XTIntel® Core™ i5-1145GRE, B2B connector, vPro Bios, TDP 15W, Operating temperature: -40 °C ~ 85 °C
Intel® Core™ i5-1145GRE, w/ B2B connector, w/ vPro, Operating temperature: -40 °C ~ 85 °C
3.5"-SBC-TGL-6-i5-1145G4E
Order Code: 43017-0000-15-4wobIntel® Core™ i5-1145G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
Intel® Core™ i5-1145G7E, w/o B2B connector, w/ vPro, Operating temperature: 0 °C ~ 60 °C

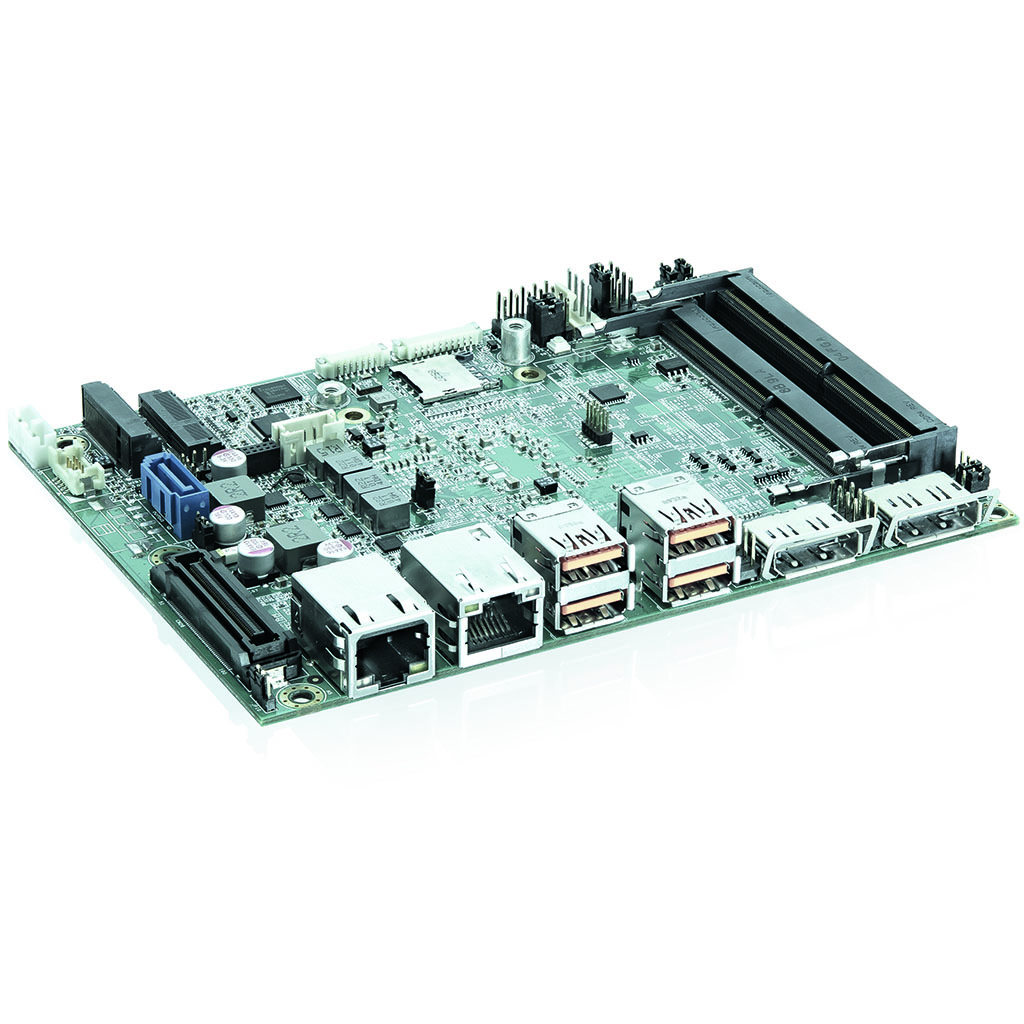

3.5"-SBC-TGL-7-i3-1115G4E
Order Code: 43017-0000-22-2wobIntel® Core™ i3-1115G4E, without B2B connector, without vPro Bios, TDP 12W, Operating temperature: 0 °C ~ 60 °C
Intel® Core™ i3-1115G4E, w/o B2B connector, w/o vPro, Operating temperature: 0 °C ~ 60 °C
3.5"-SBC-TGL-8-i7-1185G7E
Order Code: 43017-0000-18-4wobIntel® Core™ i7-1185G7E, without B2B connector, without vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
Intel® Core™ i7-1185G7E, w/o B2B connector, w/ vPro, Operating temperature: 0 °C ~ 60 °C
3.5"-SBC-TGL-9-6305E
Order Code: 43017-0000-18-2wobIntel® Celeron® 6305E, without B2B connector, withou vPro Bios, TDP 15W, Operating temperature: 0 °C ~ 60 °C
Intel® Celeron® 6305E, w/o B2B connector, w/o vPro, Operating temperature: 0 °C ~ 60 °C
Advantages of 3.5"-SBC-TGL
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Accessories
Select accessories here
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C

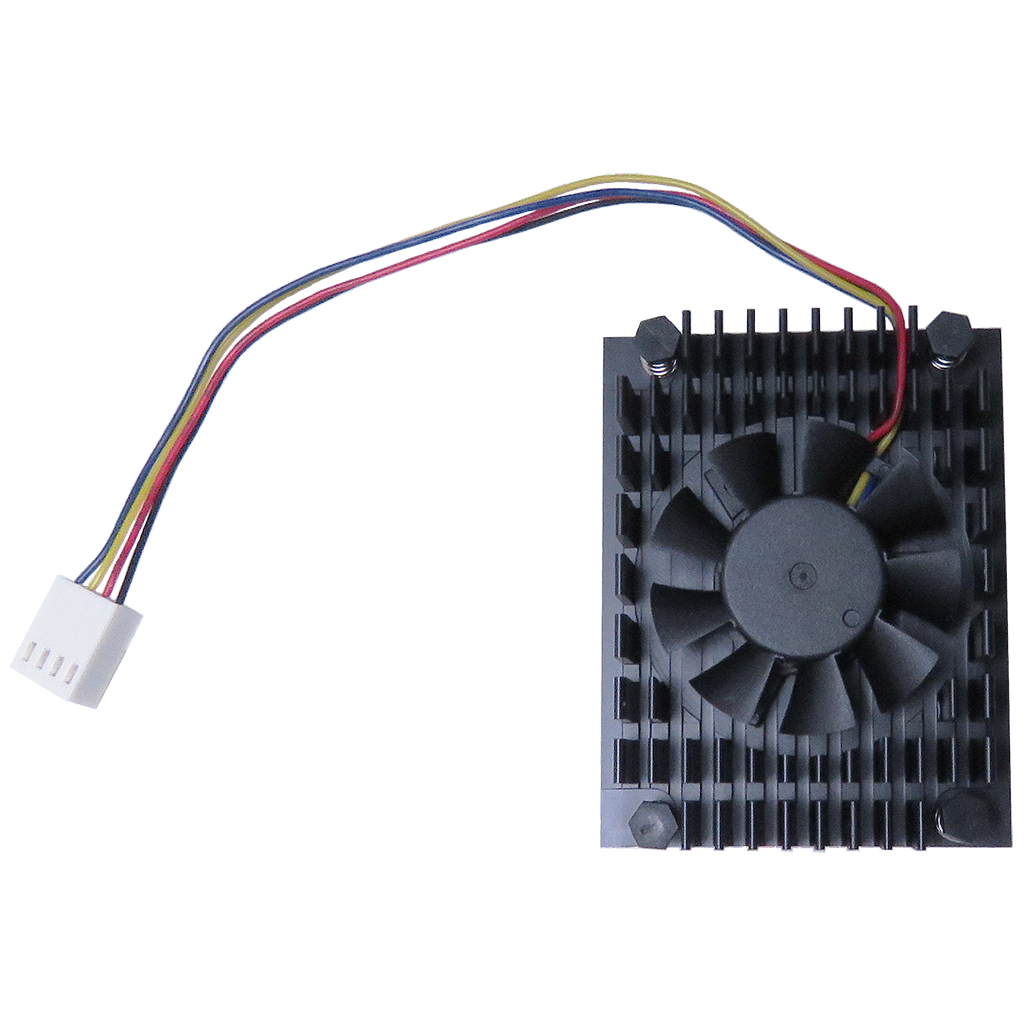

Heatsink - Cooling Solution
1067-5535
Heatsink with Fan, 15W tdp
DC Jack Cable
1064-2433
2.5 DC Jack cable with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
COM_Port Cable
1064-2427
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2-Port USB 2.0 Cable
1069-7893
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm

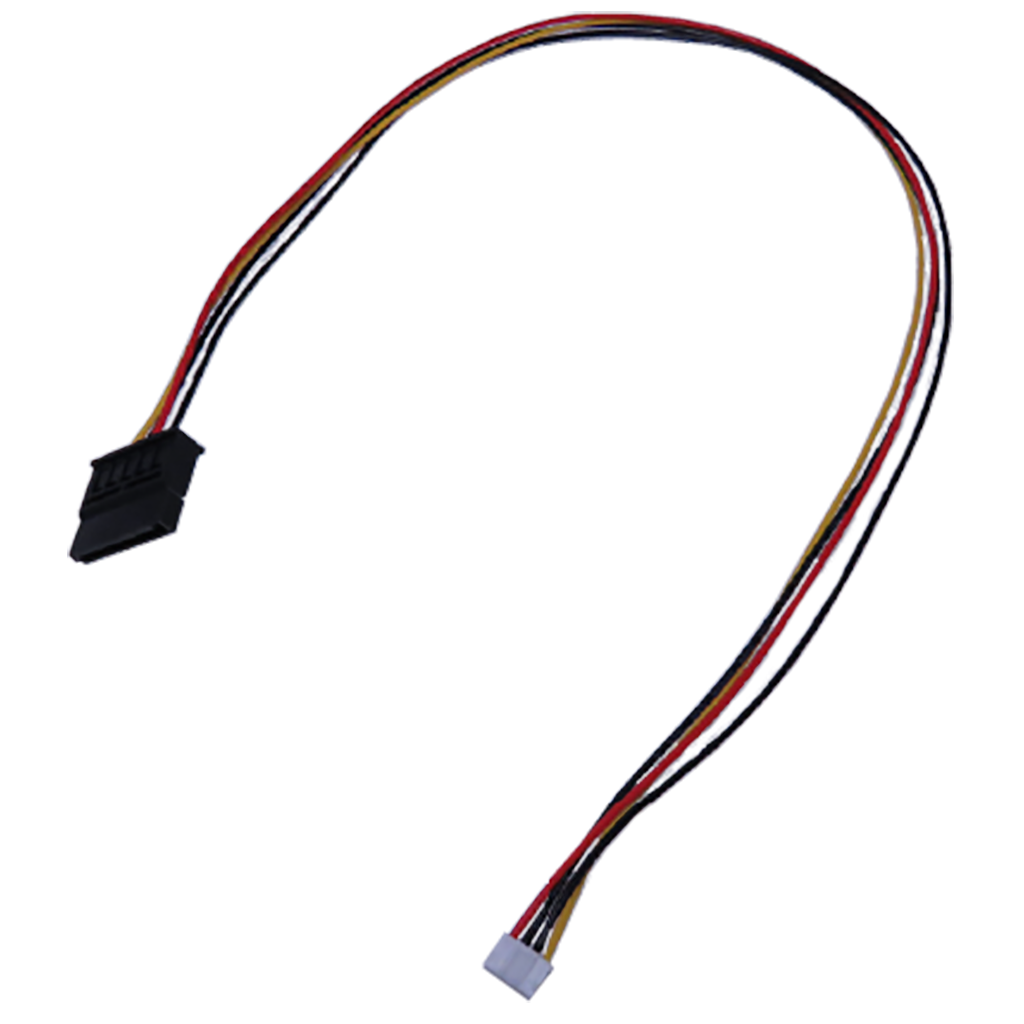

SATA Power Cable
1064-2430
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
SATA Cable with Lock
1064-2431
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
Audio Cable w/ 3x Phone Jack
1070-1245
HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm
AC to DC Power Adapter (12 V)
1069-3055
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W

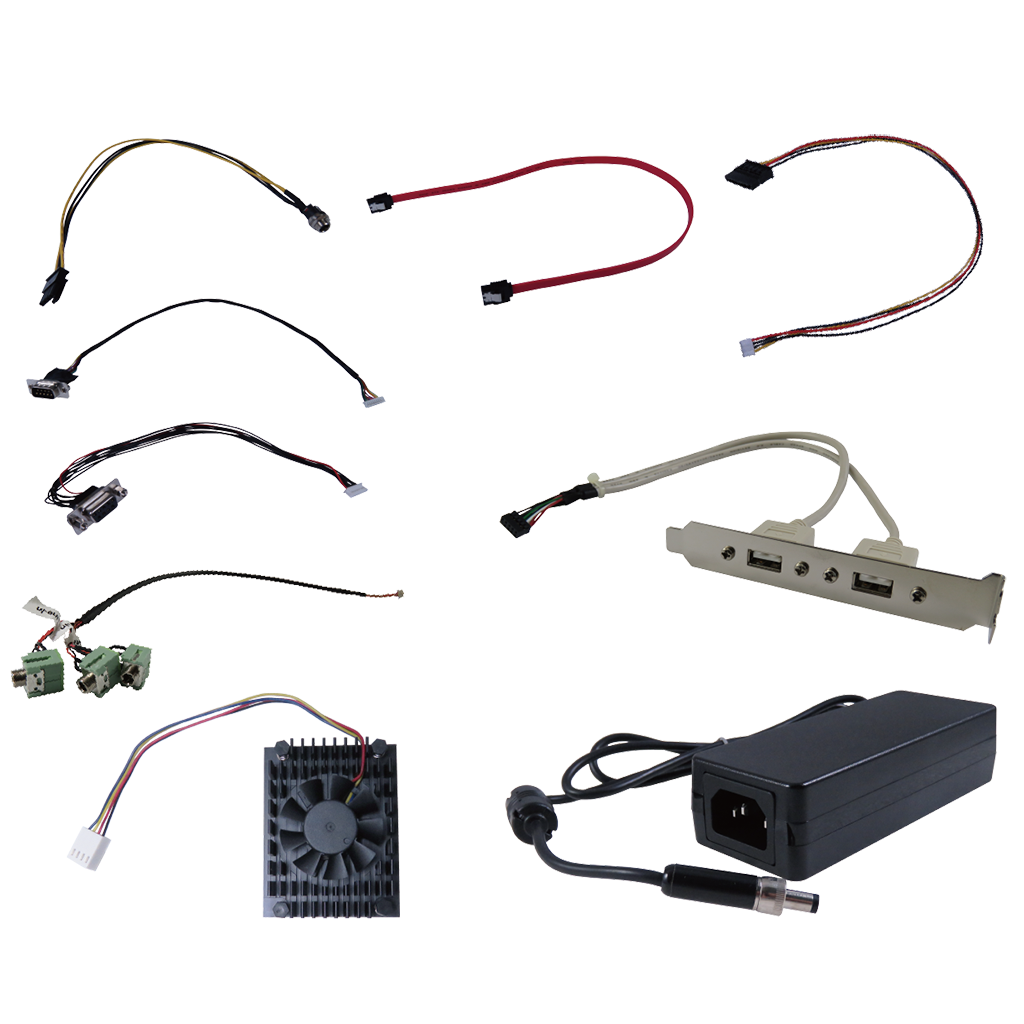

Starter Kits for 3.5"-SBC-TGL
1069-6976
1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Cooler
