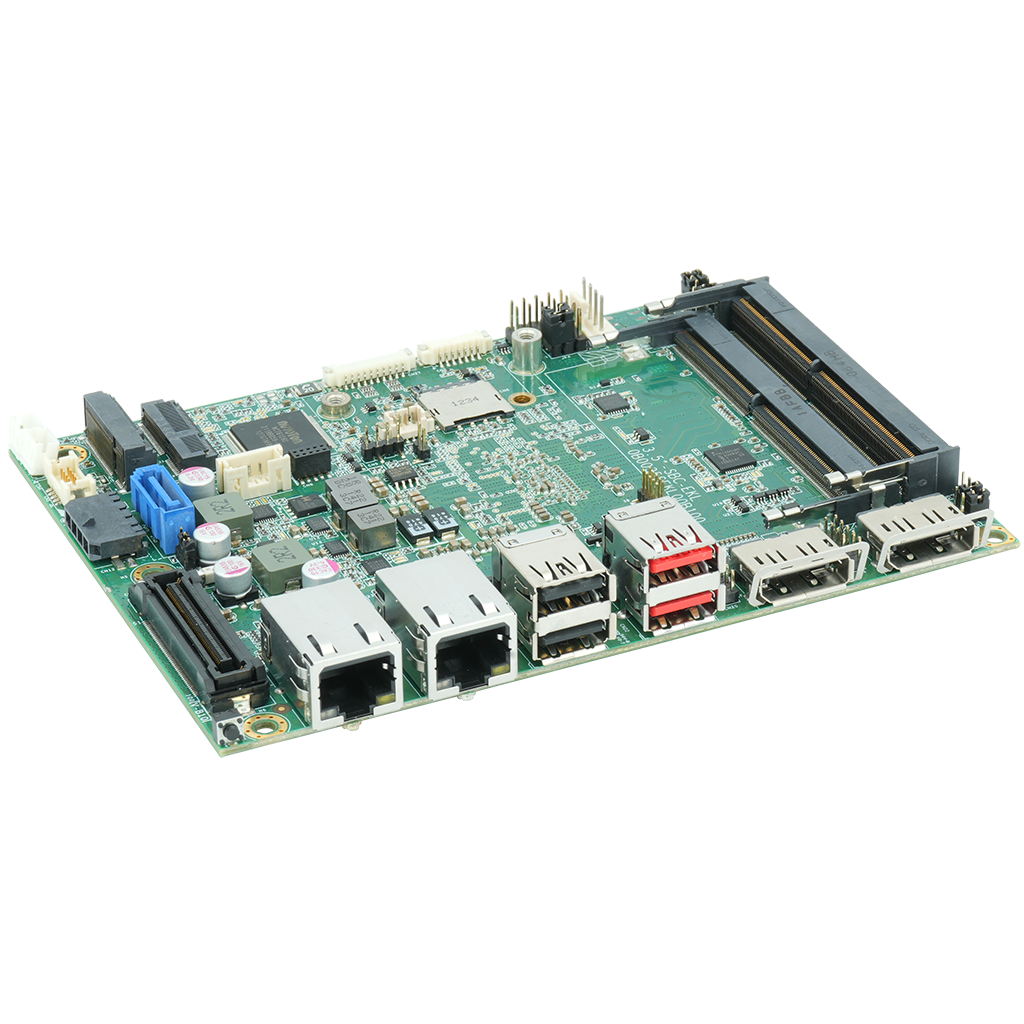

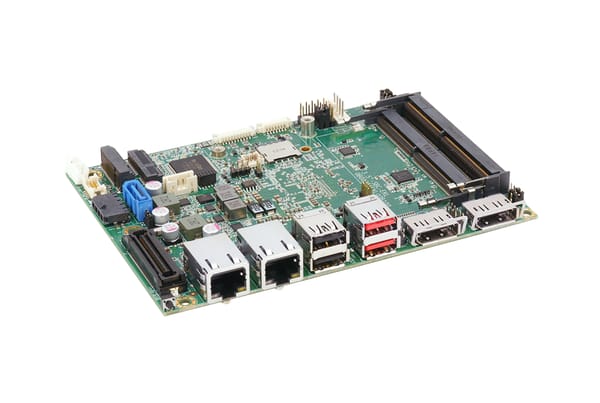

3.5"-SBC-EKL
3.5″ Single Board Computer with Intel Atom® x6000E Series, Celeron® J6000 / N6000 Series & Pentium® J6000 / N6000 Series Processors
- 2x DP, 1x LVDS for video output
- 2x 2.5 GbE LAN for Ethernet
- 2x USB 3.2 Gen 2, 6x USB 2.0, 2x RS232/422/485, 2x CAN Bus, 8x DIO for peripherals
- 1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
- 1x B2B Connector for extended I/Os: 2x PCIe x2, SM Bus, I2C, UART, GSPI & DDI (optional)
Extendable For More I/O Interfaces
3.5"-SBC-EKL is a 3.5" single board computer powered by Intel Atom® x6000E Series, Celeron® J6000 / N6000 Series and Pentium® J6000 / N6000 Series processors. Besides great performance improvement in graphics, it features 2.5 GbE with TSN (Time Sensitive Networking) capability and enhanced TPM 2.0 security / encryption support, ideal for a variety of IoT applications, such as industrial automation, retail, smart city and healthcare.
The board supports an extended B2B connector, providing additional I/O port expansion to fulfill possible application requirements.
Technical data
| Processor | Intel® Atom® x6211E (Dual Core, 1.5M Cache, 1.3 / 3.0 GHz, FCBGA1493, 6 W TDP) Intel® Atom® x6212RE (Dual Core, 1.5M Cache, 1.2 GHz, FCBGA1493, 6 W TDP) Intel® Atom® x6425RE (Quad Core, 1.5M Cache, 1.9 GHz, FCBGA1493, 12 W TDP) Intel® Celeron® J6413 (Quad Core, 1.5M Cache, 1.8 / 3.0 GHz, FCBGA1493, 10 W TDP) |
|---|---|
| Main Memory | 2x DDR4 3200 SO-DIMM up to 32 GByte |
| Graphics Controller | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP (4096 x 2160 @ 60 Hz, on rear, DDI2 can support on B2B optionally) Triple Display |
| Audio Controller | TSI 92HD73C |
Downloads
Manuals
General Safety Instruction
628.88 KB | March 26, 2026
3.5"-SBC-EKL User Guide
2.33 MB | March 26, 2026
3.5"-SBC-EKL Quick Installation Guide
573.5 KB | March 26, 2026
3.5"-SBC Copper Pillar, Thermal Solution & eIO Installation Guide
594.85 KB | March 26, 2026
3.5"-SBC M.2 Module Installation Guide
119.86 KB | March 26, 2026
Technical Specification
3.5" SBC Tech Spec Sheet
14.12 MB | March 26, 2026
Success Story
Accelerated claims settlement after hail damage with AI
Related products & solutions
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Variants
Select variants here
3.5"-SBC-EKL-0-J6413
43018-0000-18-4
Intel® Celeron® J6413, Operating Temperature: 0 °C ~ 60 °C
Intel® Celeron® J6413, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-EKL-1-x6211E-XT
43018-0000-13-2
Intel® Atom® x6211E, Operating Temperature: -40 °C ~ 85 °C
Intel® Atom® x6211E, Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-EKL-2-x6212RE-XT
43018-0000-12-2
Intel® Atom® x6212RE, Operating Temperature: -40 °C ~ 85 °C
Intel® Atom® x6212RE, Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-EKL-3-x6425RE-XT
43018-0000-19-4
Intel® Atom® x6425RE, Operating Temperature: -40 °C ~ 85 °C
Intel® Atom® x6425RE, Operating Temperature: -40 °C ~ 85 °C
Advantages of 3.5"-SBC-EKL
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Accessories
Select accessories here
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C

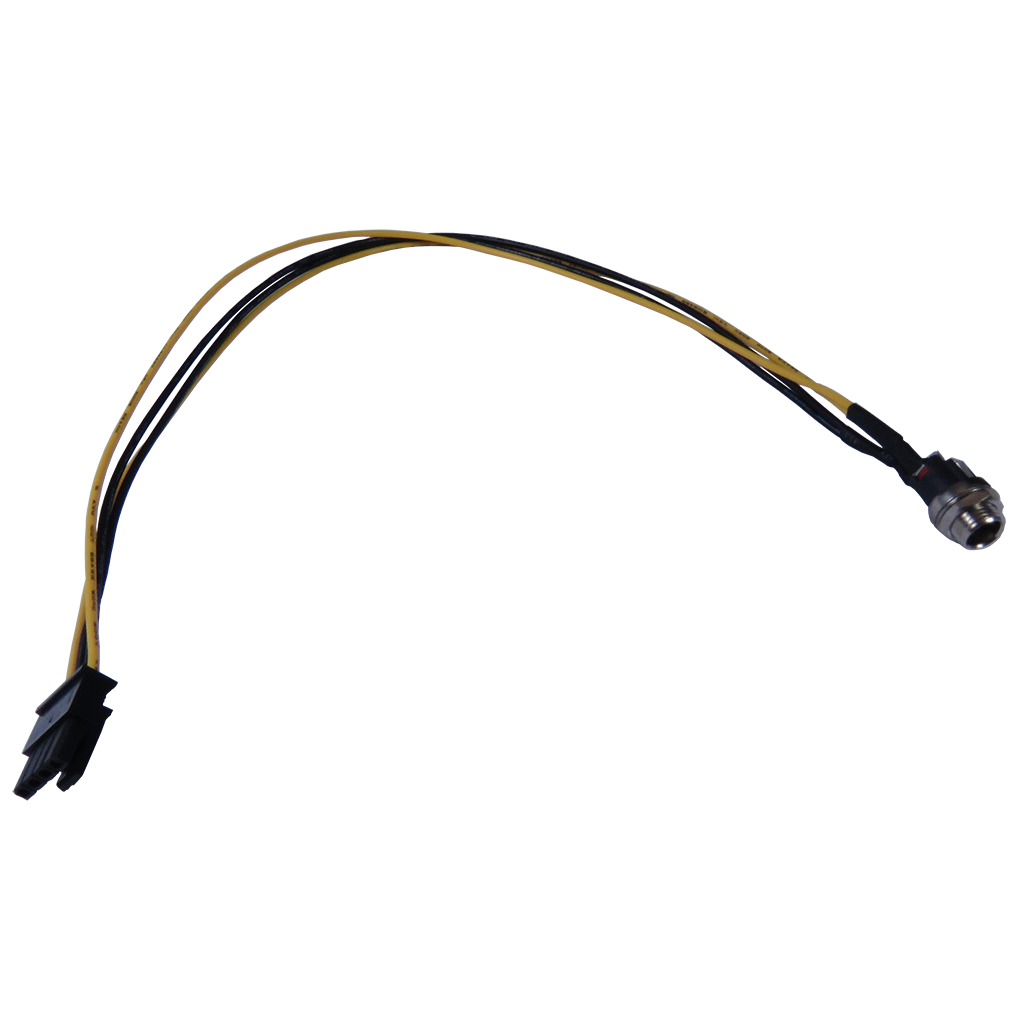

DC Jack Cable
1064-2433
2.5 DC Jack cable with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
SATA Cable with Lock
1064-2431
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
SATA Power Cable
1064-2430
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
COM_Port Cable
1064-2427
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm

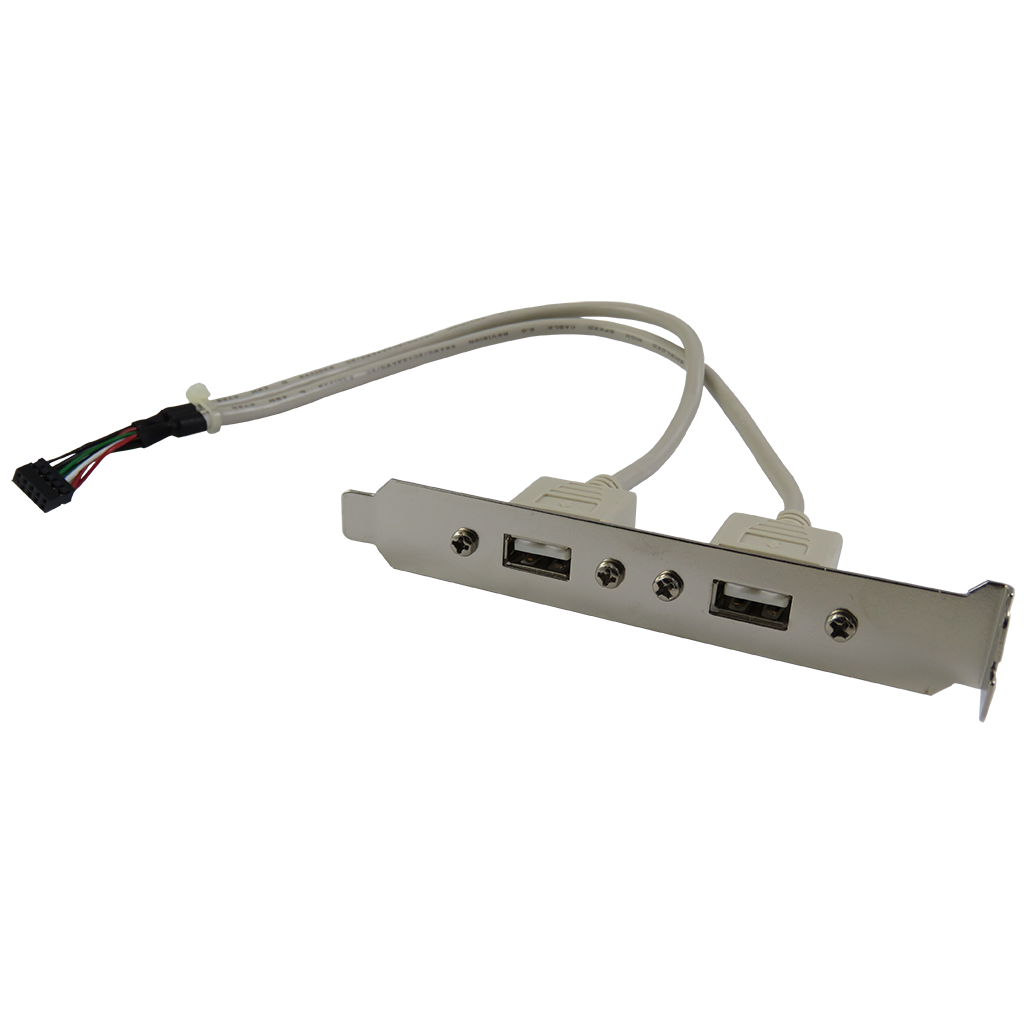

2-Port USB 2.0 Cable
1069-7893
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm

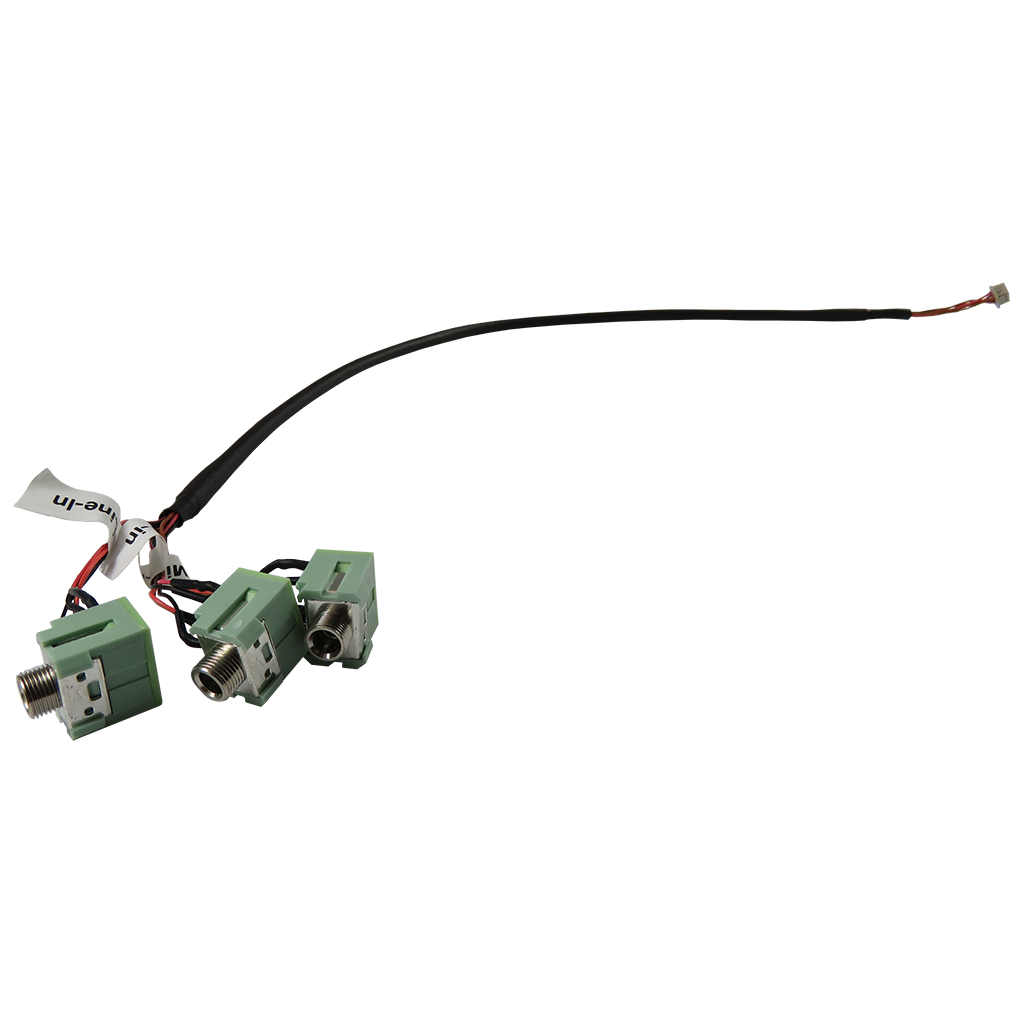

Audio Cable w/ 3x Phone Jack
1070-1245
HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm
AC to DC Power Adapter (12 V)
1069-3055
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W
3.5"-SBC-EKL(N/J Series)/AML/ADN Starter Kits
1070-4932
1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Heatsink, 1x Screw Copper Pillar Kit
3.5"-SBC-EKL X Series Starter Kits
1070-2327
1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Heatsink
