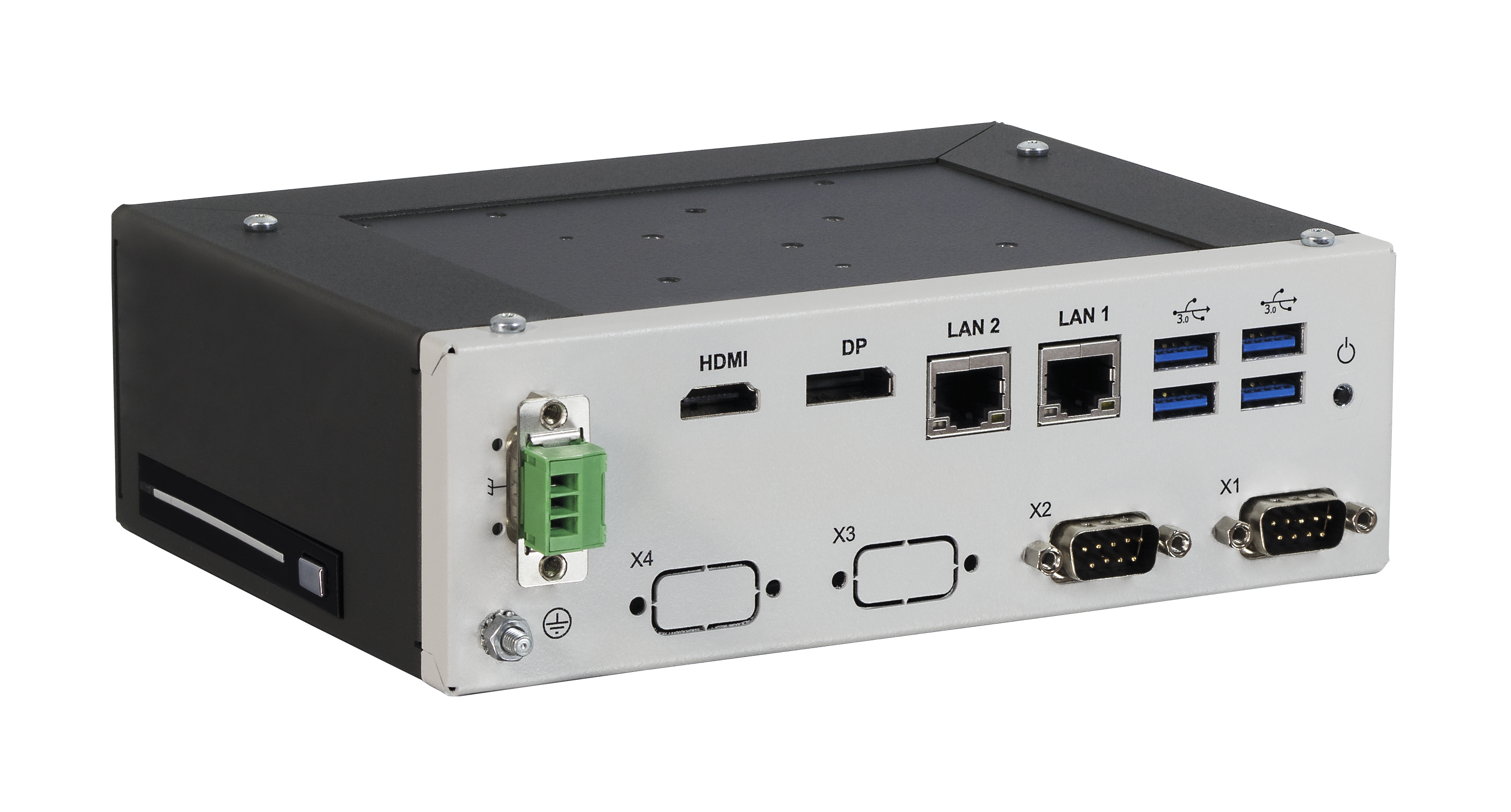

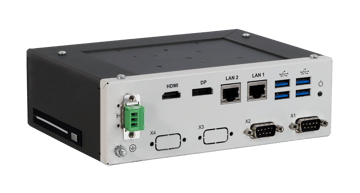

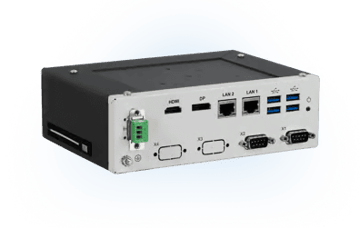

KBox A-150-APL
DIN Rail Industrial Computer platform for process control and optimization with the latest Intel Atom® X, J and N series processors
3.5-SBC-APL V2.0 Datasheet
2.92 MB | March 26, 2026
This product is not recommended for new designs.Replacement product: 3.5"-SBC-AML/ADN
3.5"-SBC-APL V2.0
3.5” Single Board Computer with Intel Atom® E3900 Series & Pentium® / Celeron® N- / J-Series Processors

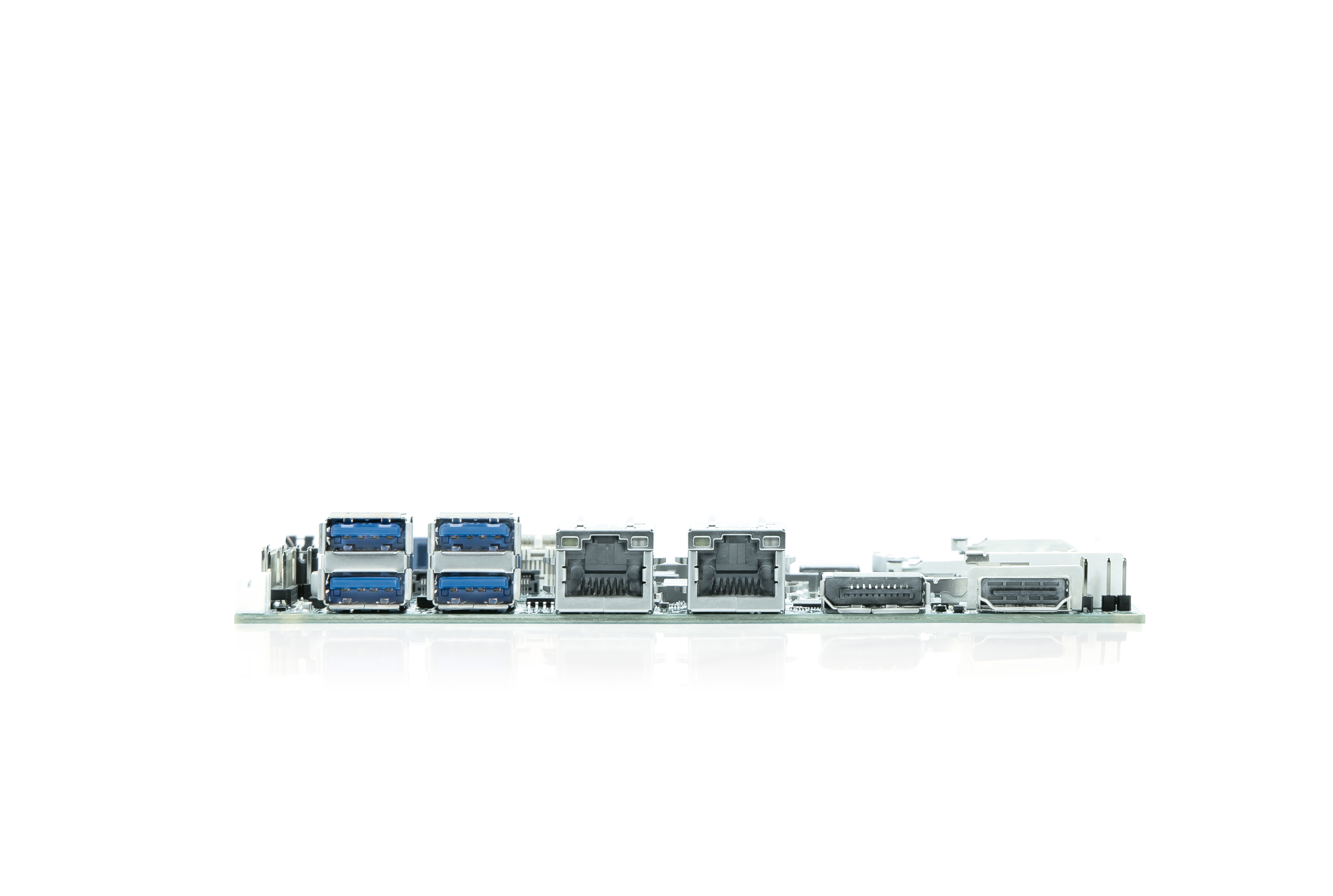

- 1x LVDS, 1x DP, 1x HDMI for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, up to 3x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO for peripherals
- 1x SATA 3.0, 1x Micro-SD Cage for storage
- 1x mPCIe, 1x M.2 Key B for expansion
Extended / Extreme Temperature Support

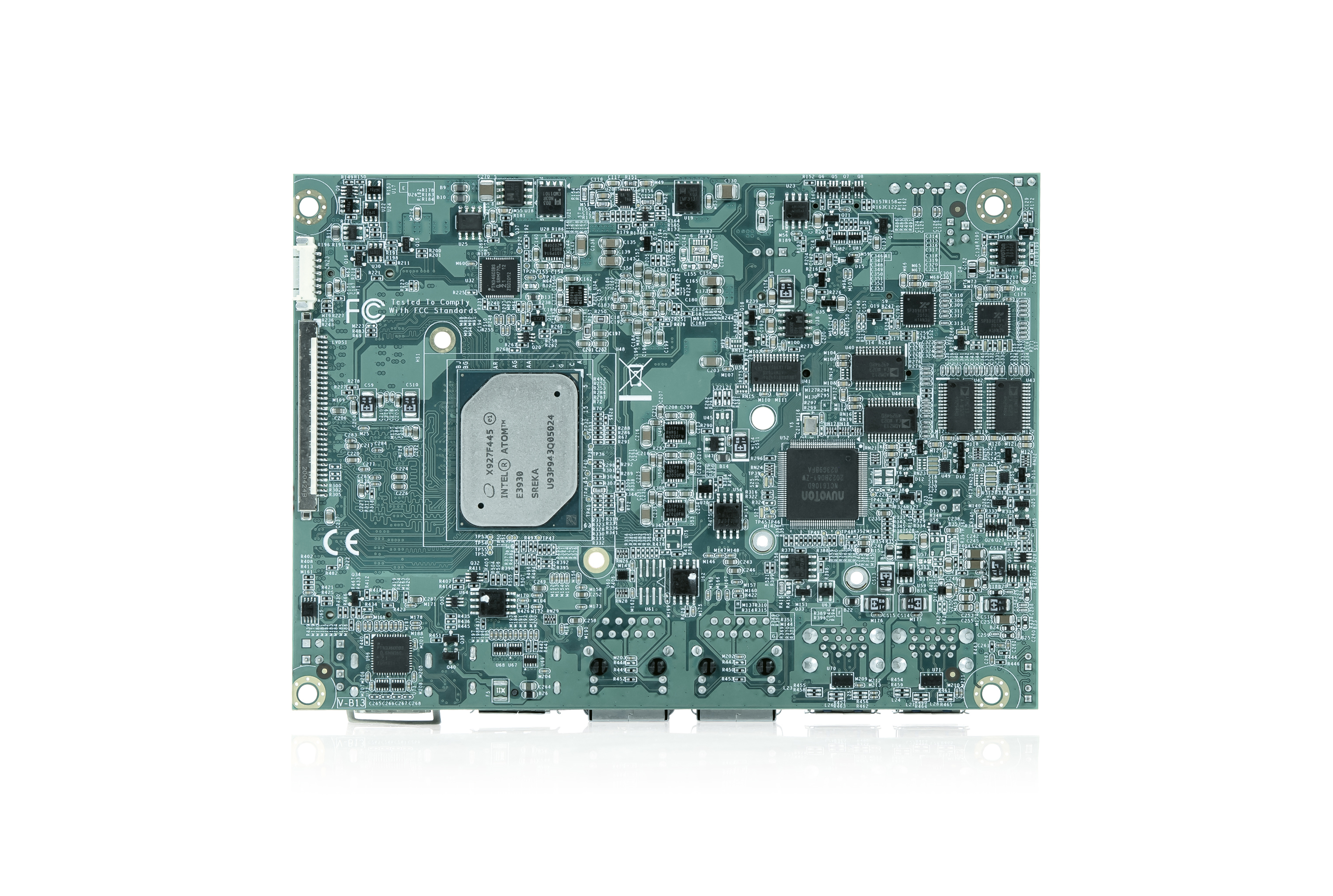

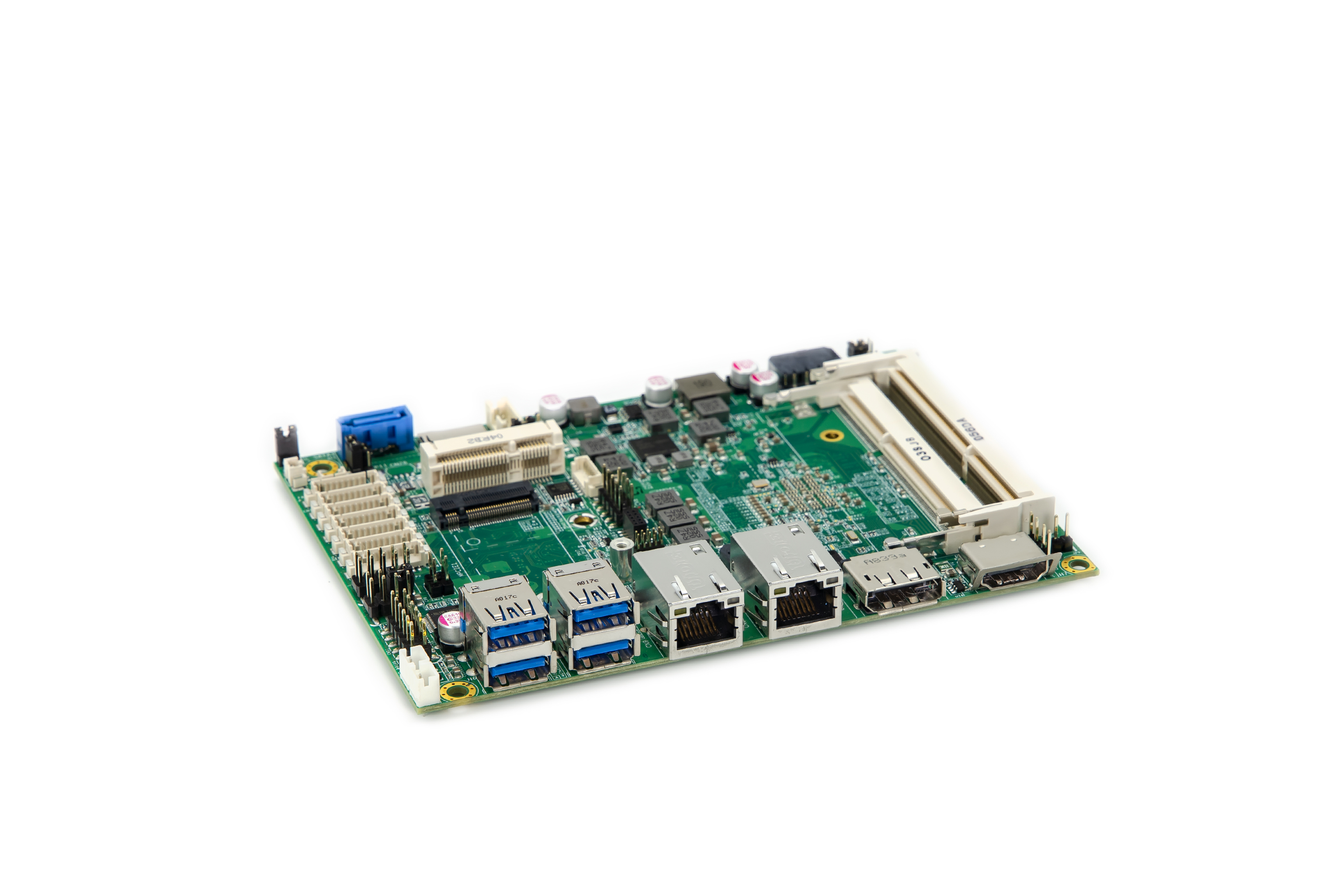

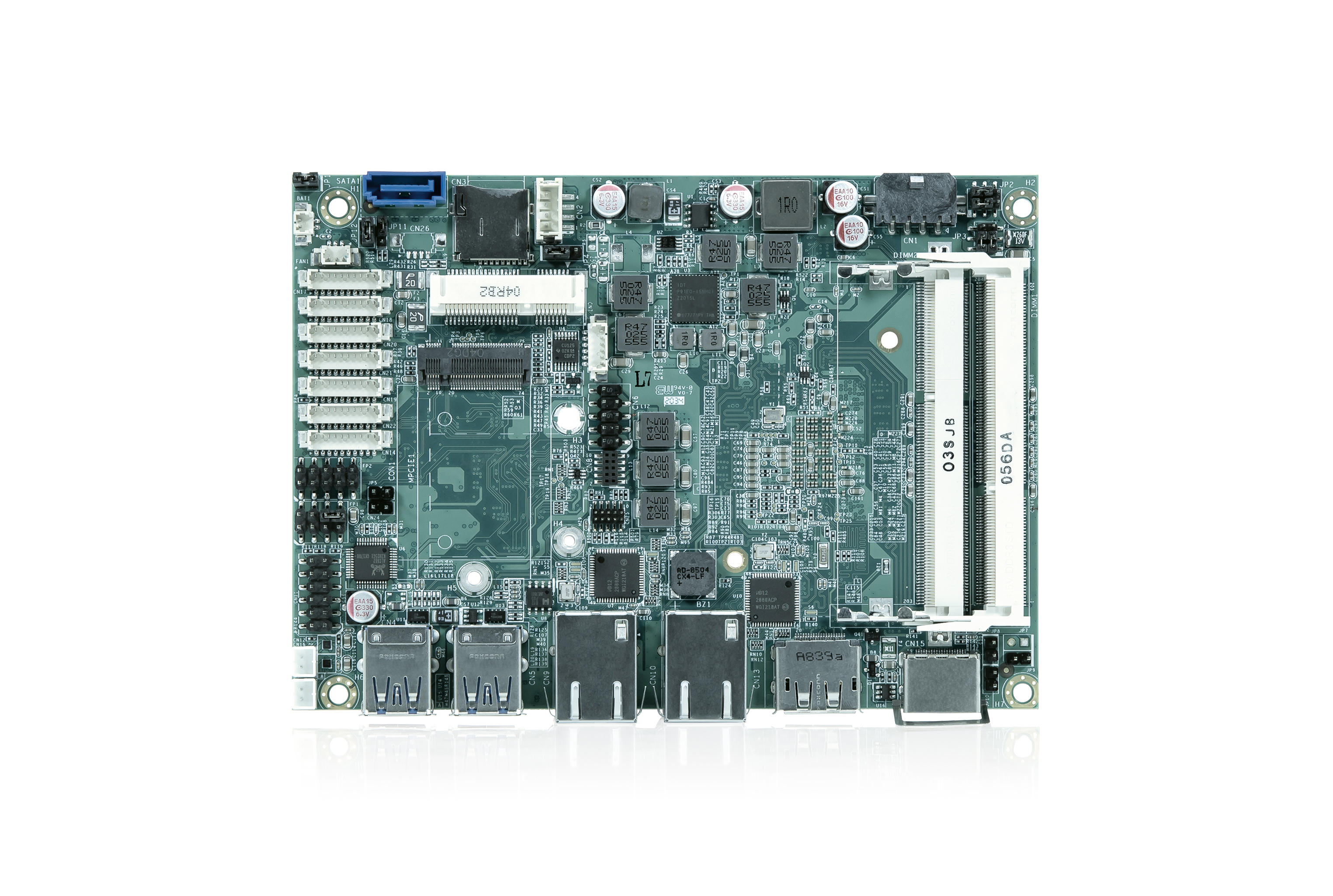

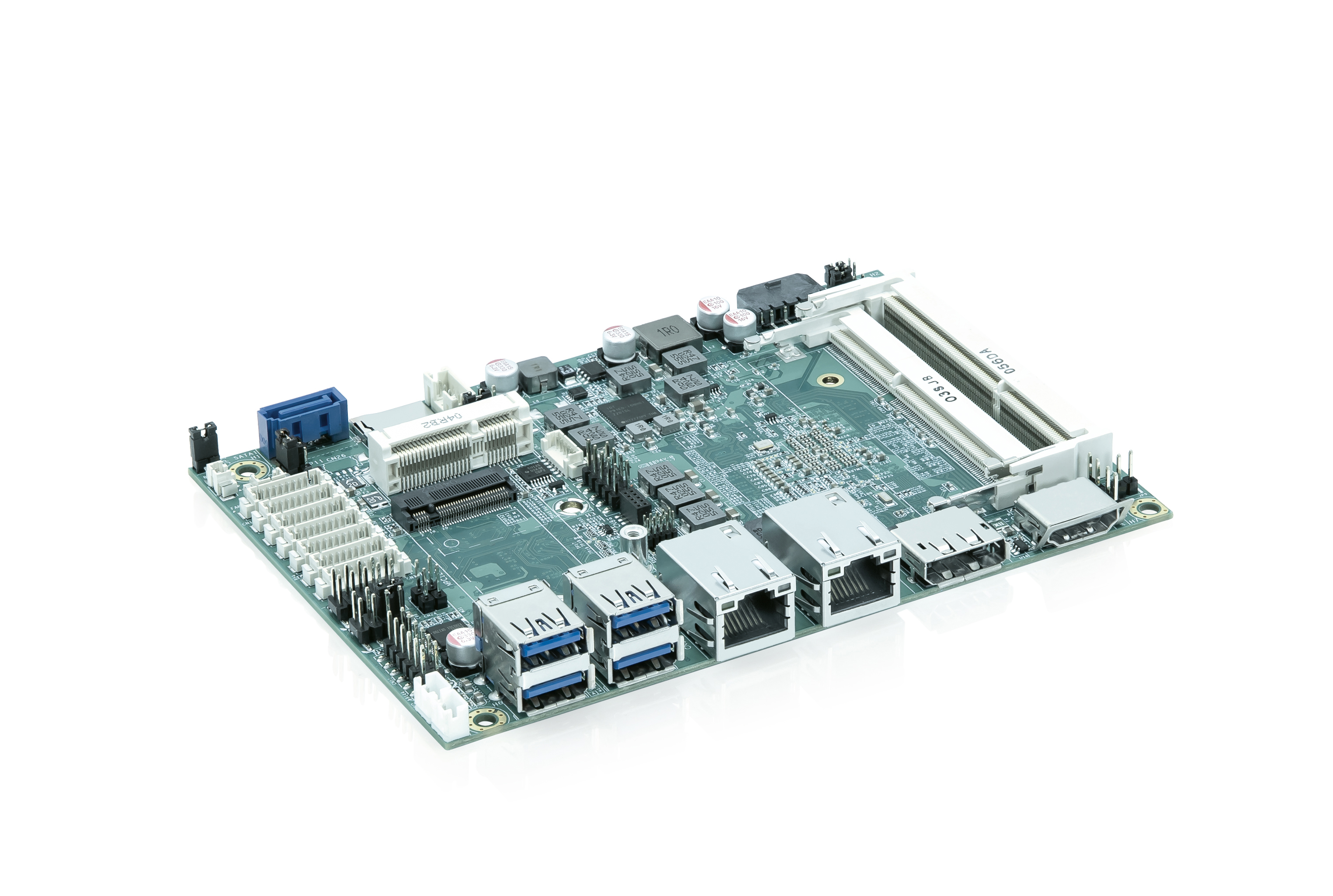

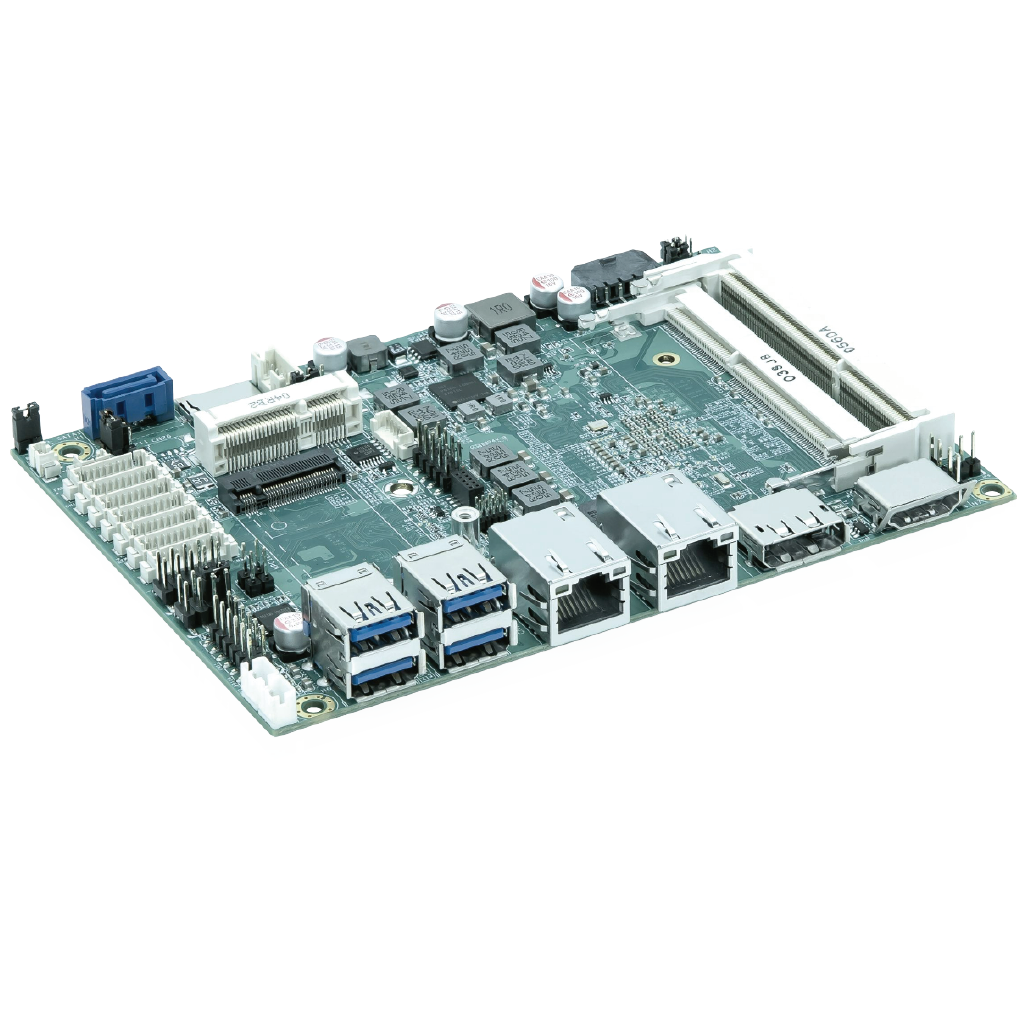

3.5"-SBC-APL V2.0 is a 3.5" single board computer (SBC), equipped with Intel Atom® E3900 Series & Pentium® / Celeron® N- / J-Series.
Higher performance and power efficiency
The 3.5"-SBC-APL V2.0 provides up to a 30% increase in processing and graphics performance and a 15% increase in power efficiency over models with previous-generation Intel® processors.
Multi-functional integration
In addition, the 3.5"-SBC-APL V2.0 supports a highly-integrated M.2 expansion socket for USB, WWAN (3G, 4G), satellite navigation (GPS) and SSDs enabling developers to build more compact or thinner embedded devices.
Extreme temperature applications
Extended / extreme temperature models are also available allowing for operation under extreme high, low or radically fluctuating temperatures, which is common in industrial environments.
Technical data
| Processor | Intel® Atom® x7-E3950 (Quad Core, 2M Cache, 1.60 / 2.00 GHz, FCBGA1296, 12 W TDP) Intel® Atom® x5-E3940 (Quad Core, 2M Cache, 1.60 / 1.80 GHz, FCBGA1296, 9.5 W TDP) Intel® Atom® x5-E3930 (Dual Core, 2M Cache, 1.30 / 1.80 GHz, FCBGA1296, 6.5 W TDP) Intel® Pentium® N4200 (Quad Core, 2M Cache, 1.10 / 2.50 GHz, FCBGA1296, 6 W TDP) Intel® Celeron® J3455 (Quad Core, 2M Cache, 1.50 / 2.30 GHz, FCBGA1296, 10 W TDP) Intel® Celeron® N3350 (Dual Core, 2M Cache, 1.10 / 2.40 GHz, FCBGA1296, 6 W TDP) |
|---|---|
| Main Memory | 2x DDR3L 1867 1.35 V SO-DIMM |
| Graphics Controller | Intel® HD Graphics 505 (for mdoels w/ Atom® x7, Pentium®) Intel® HD Graphics 500 (for models w/ Atom® x5, Celeron®) |
| Display | 1x LVDS (18/24-bit, 1/2-ch, 1920 x 1200 @ 60 Hz) 1x DP 1.2 (4096 x 2160 @ 60 Hz, on rear) 1x HDMI 1.4 (3840 x 2160 @ 30 Hz, on rear) Triple display support |
| Audio Controller | Realtek ALC888S |
Downloads
Technical Specification
3.5" SBC Tech Spec Sheet
14.12 MB | March 26, 2026
More downloads
All other downloads such as drivers, BIOS, drawings etc. are available on Kontron's Customer Section
Related products & solutions
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Variants
Select variants here
3.5"-SBC-APL-0-E3950 V2.0
43012-0000-20-4
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-1-E3940 V2.0
43012-0000-18-4
Intel® Atom® x7-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-3-N4200 V2.0
43012-0000-25-4
Intel® Pentium® N4200, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Pentium® N4200, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-4-N3350 V2.0
43012-0000-23-2
Intel® Celeron® N3350, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), with audio, without TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Celeron® N3350, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-6-E3950 V2.0
Intel® Atom® x7-E3950, 3x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Atom® x7-E3950, 3x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-A-E3930 V2.0
43012-0000-18-2
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-K-J3455 V2.0
43012-0000-15-4
Intel® Celeron® J3455, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
Intel® Celeron® J3455, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/ TPM, Op. temp.: 0 °C ~ 60 °C
3.5"-SBC-APL-0-E3950-ET V2.0
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: -20 °C ~ 70 °C
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/ audio, w/o TPM, Op. temp.: -20 °C ~ 70 °C
3.5"-SBC-APL-H-E3950-XT V2.0
43012-0000-20-4ET
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C
Intel® Atom® x7-E3950, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/o audio, w/ TPM, Op. temp.: -40 °C ~ 85 °C
3.5"-SBC-APL-I-E3940-XT V2.0
43012-0000-18-4ET
Intel® Atom® x5-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C
Intel® Atom® x5-E3940, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/o audio, w/ TPM, Op. temp.: -40 °C ~ 85 °C
3.5"-SBC-APL-J-E3930-XT V2.0
43012-0000-18-2ET
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), without audio, with TPM, Op. temp.: -40 °C ~ 85 °C
Intel® Atom® x5-E3930, 2x USB 2.0, 1x M.2 Key B (w/ SATA / PCIe / USB), w/o audio, w/ TPM, Op. temp.: -40 °C ~ 85 °C
Advantages of Kontron Single Board Computers
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Accessories
Select accessories here
COM_Port Cable
1064-2427
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2 Ports USB 2.0 Cable
1064-2429
USB (female) ×2 to 2×5P 2.54 pitch, L=250 mm
SATA Cable with Lock
1064-2431
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm

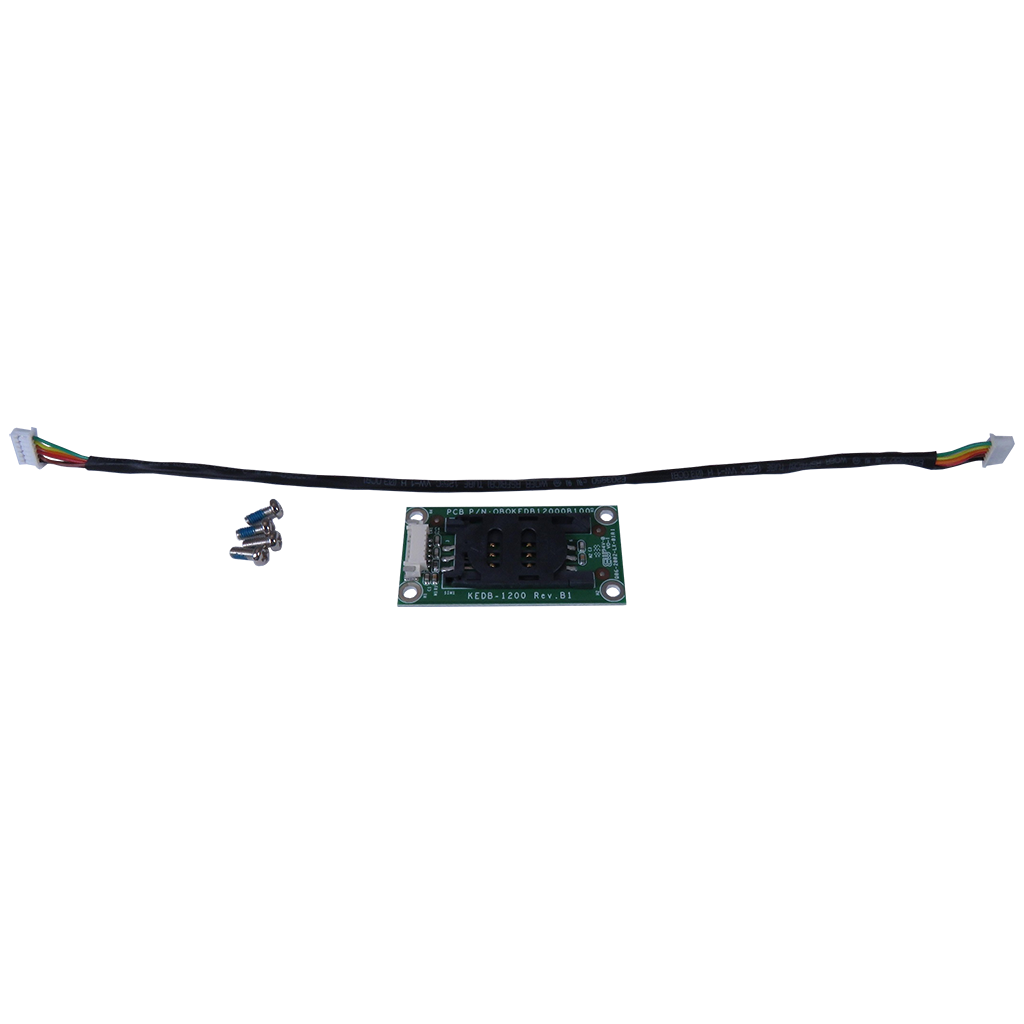

SIM Card Holder Kit
1064-2434
with SIM card holder x1, cable x1,and screws x4
Audio Cable
1064-2432
2x6P 2.54 pitch to ear phone jack x3 3.5 pitch, L=350 mm
DC Jack Cable
1064-2433
2.5 DC Jack cable with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm

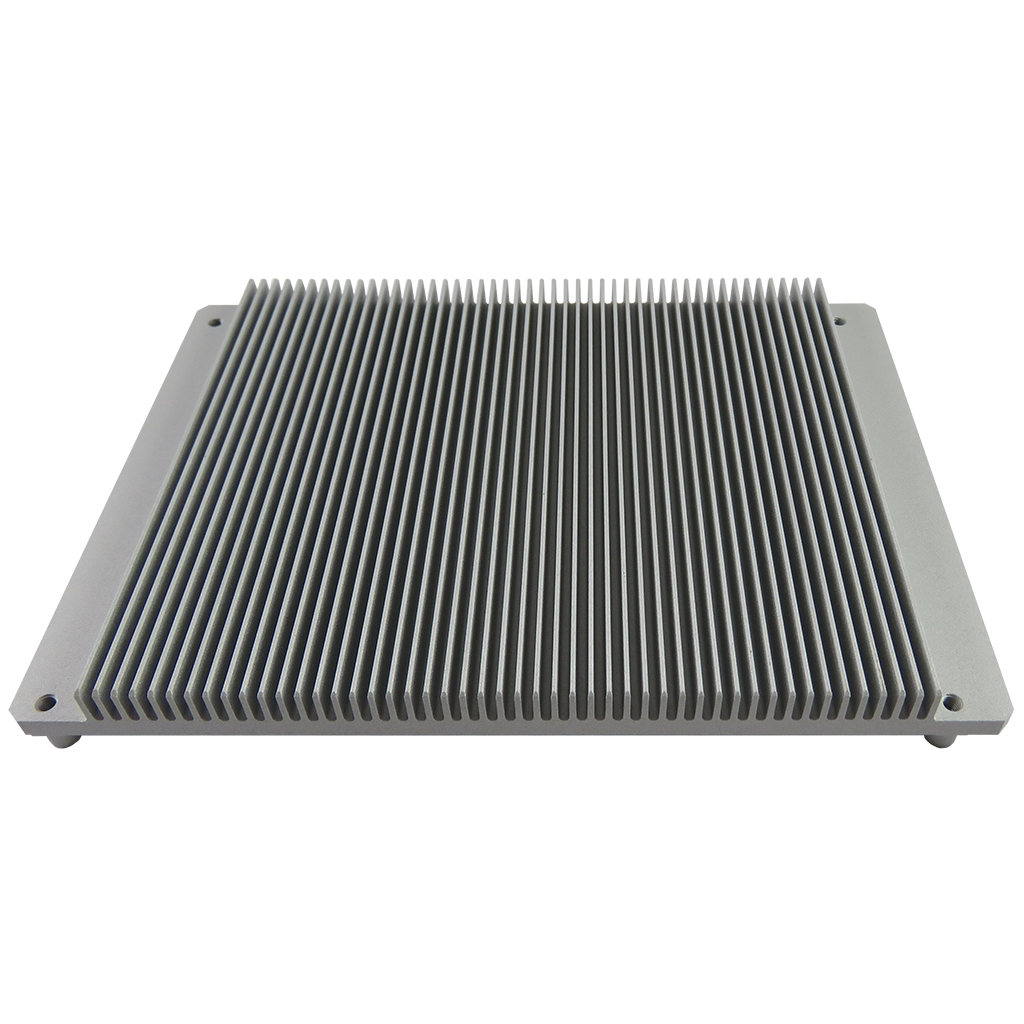

Heatsink - Cooling Solution E-Series
1067-5540
Heatsink E-Series Variant

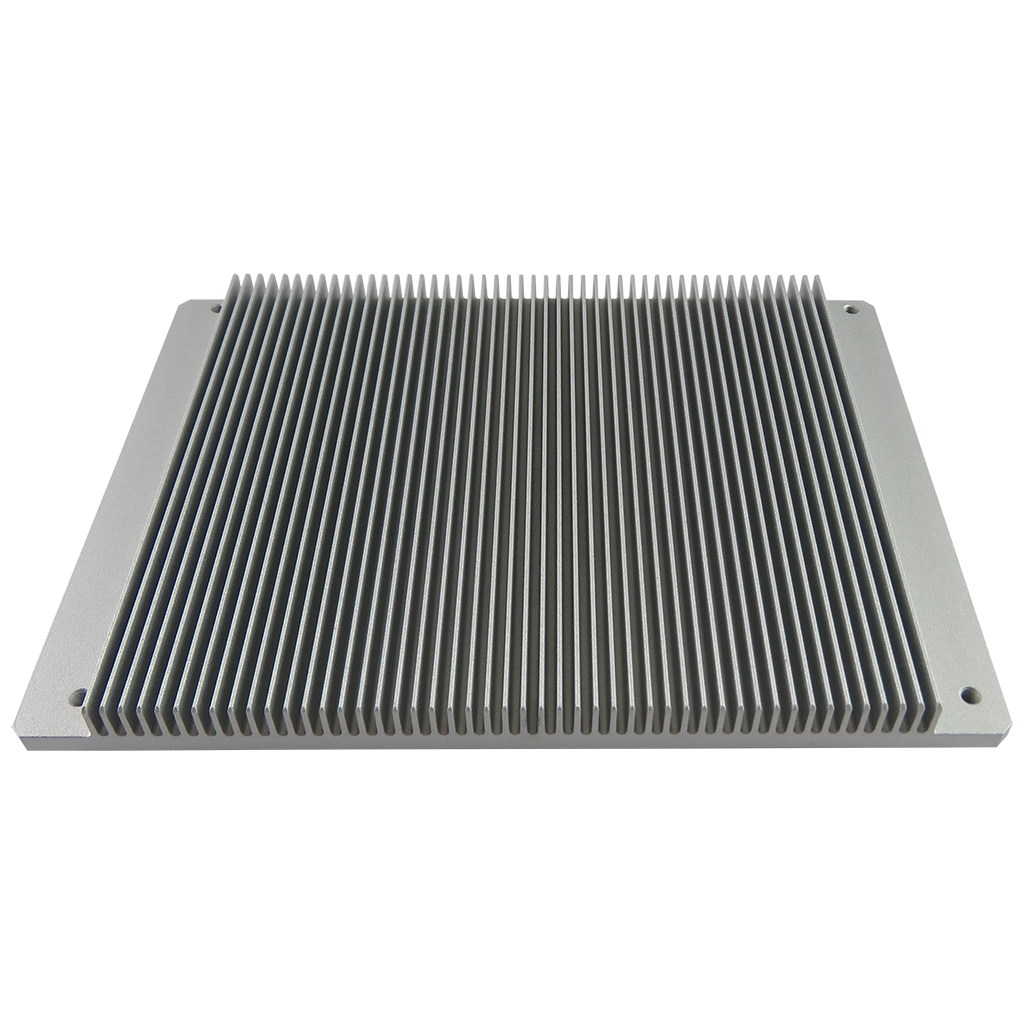

Heatsink - Cooling Solution N-Series
1067-5537
Heatsink N-Series Variant
SATA Power Cable
1064-2430
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
