New product

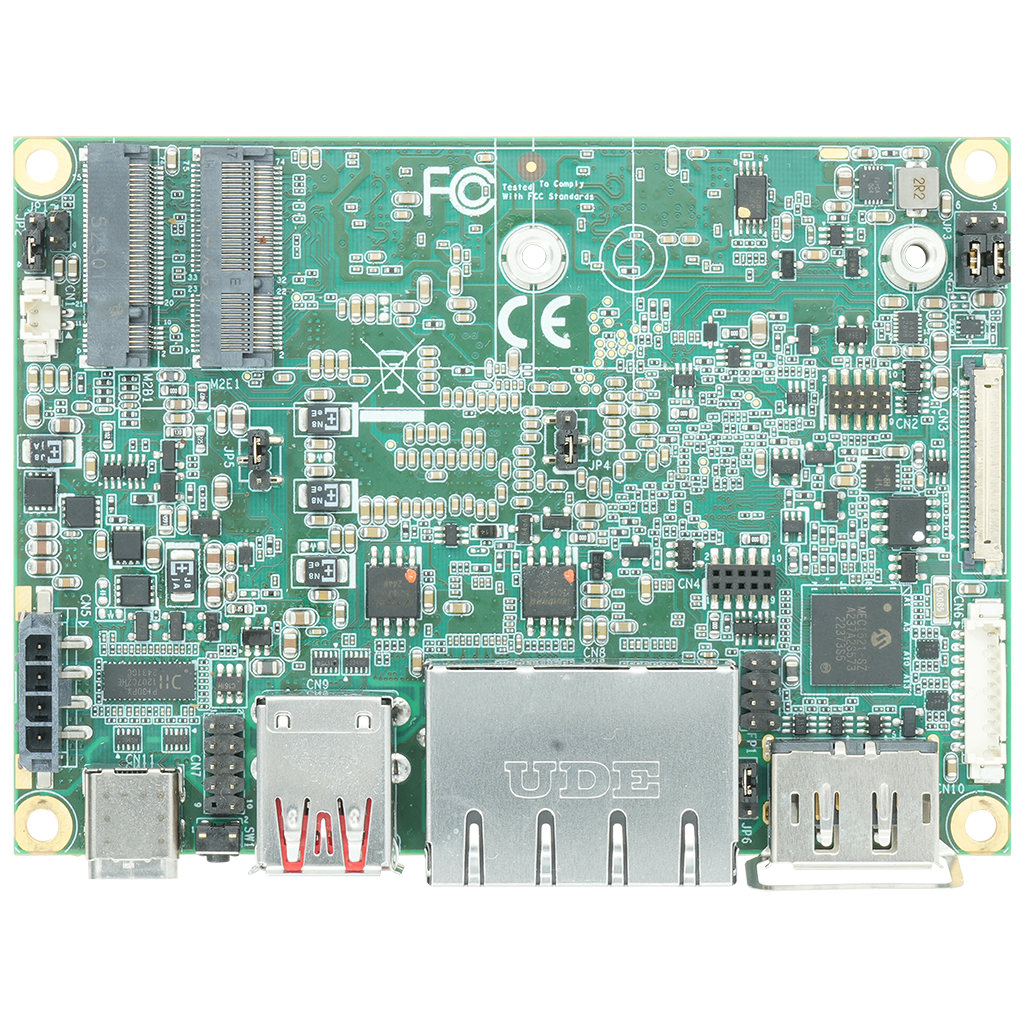

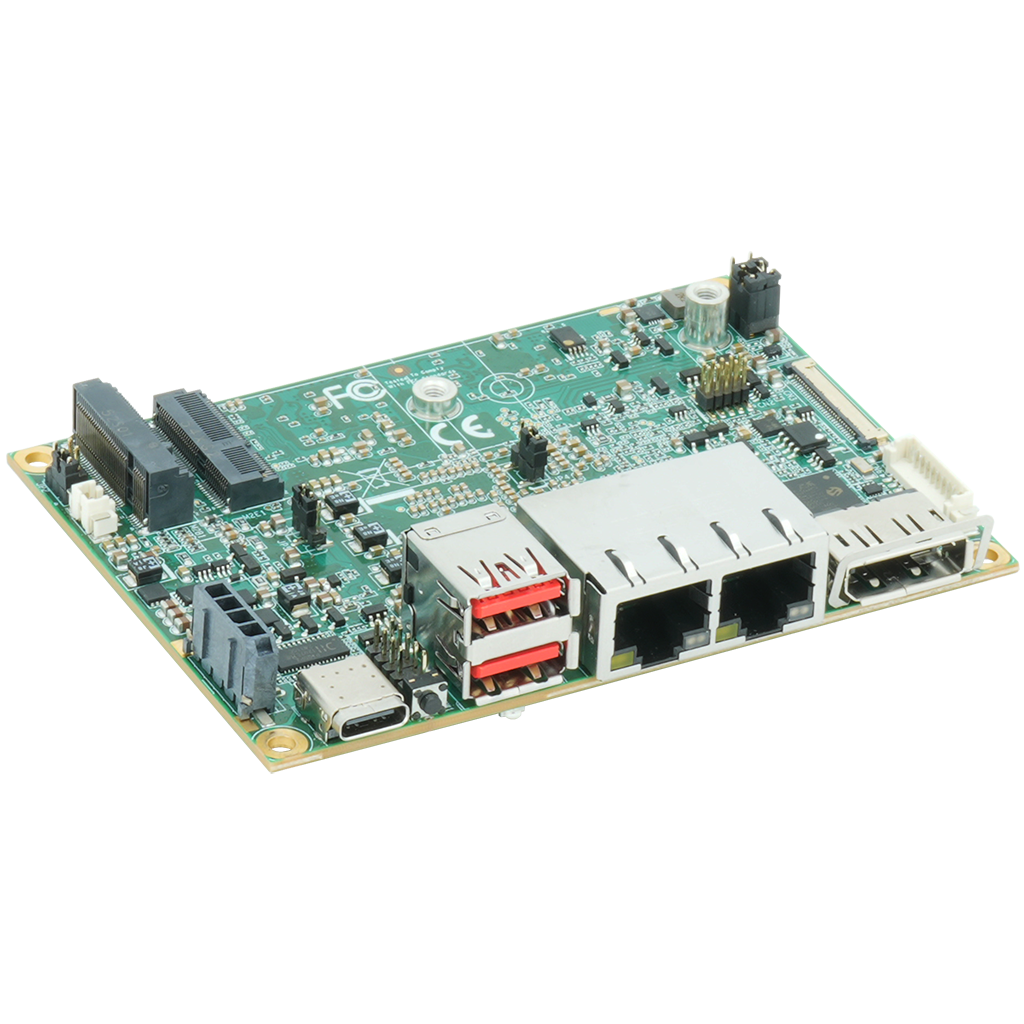

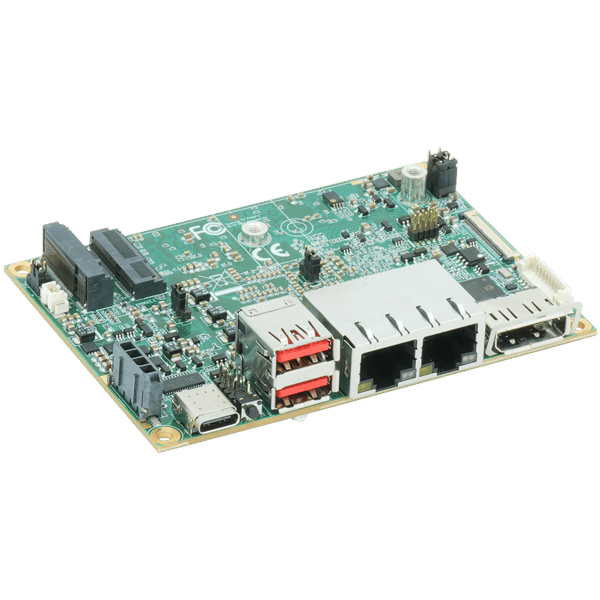

2.5"-SBC-AMV/ADV
2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
- Upgraded processing and graphics performance + faster AI inference capability
- Next-gen LPDDR5 memory with up to 4800 MT/s data transfer rate
- DP Alt Mode over USB-C support to carry video / audio, data & power over a single port
- Wide input voltage range for more application environments
- Hardware-based security for data protection and reliable authentication
Ideal for industrial display systems & projects requiring LVDS panels
2.5"-SBC-AMV/ADV is a 2.5" single board computer in Pico-ITX form factor powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as next-gen high-speed LPDDR5 memory. In addition, it features a LVDS and eDP combo connector. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into an all-in-one solution for industrial display systems or projects requiring LVDS panels.
2.5"-SBC-AMV/ADV has two other similar products designed for other applications:

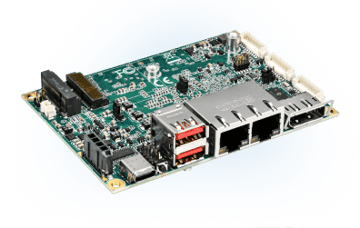

- 2.5"-SBC-AML/ADN ideal for industrial manufacturing and real-time control applications
- 2.5"-SBC-AMH/ADH ideal for retail, commercial and audio-enabled applications
Technical data
| Processor | [Standard] Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W) Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W) Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W) [Project] Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W) Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W) Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W) Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W) Intel® N50 (2C 6M, 1.0/3.4GHz, 6W) Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W) Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W) |
|---|---|
| Main Memory | 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down |
| Graphics Controller | Intel® UHD Graphics Gen12 |

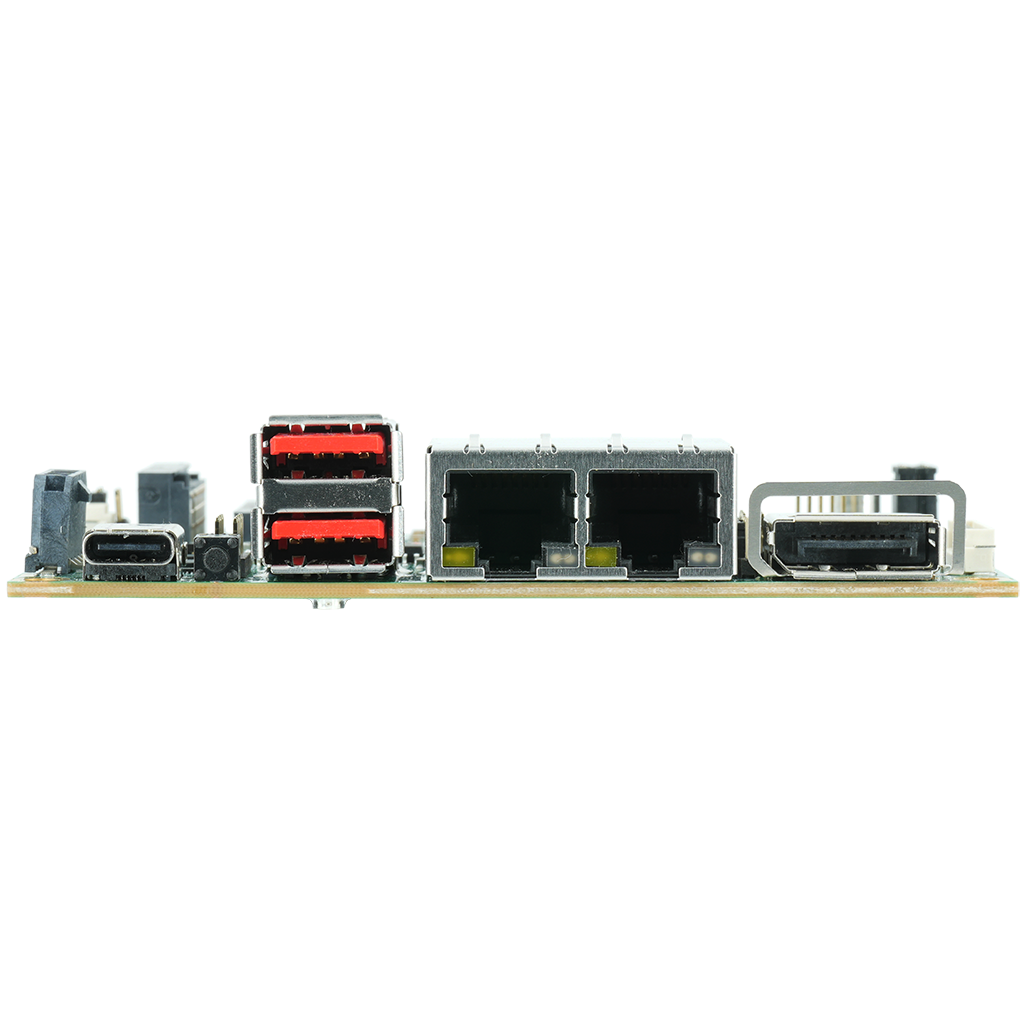

| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) / eDP (4096 x 2160 @ 60 Hz) 2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear) Triple Display |
| Ethernet Controller | Intel® I226-V/IT |
Related products & solutions
Coming soon
2.5"-SBC-AMH/ADH
2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Variants
Select variants here
2.5"-SBC-AMV-0-x7835RE-XT
TBD
- Intel® Atom® x7835RE
- Intel® I226-IT LAN Chip
- 16 GByte LPDDR5
- 128 GByte eMMC
- Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AMV-1-x7433RE-XT
TBD
- Intel® Atom® x7433RE
- Intel® I226-IT LAN Chip
- 8 GByte LPDDR5
- 128 GByte eMMC
- Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-ADV-0-i3-N305
TBD
- Intel® Core™ i3-N305
- Intel® I226-V LAN Chip
- 8 GByte LPDDR5
- 64 GByte eMMC
- Operating Temperature: 0 °C ~ 60 °C
Advantages of 2.5"-SBC-AMV/ADV
Better overall specifications then competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
Accessories
Select accessories here
DC Jack Cable
1064-2433
2.5 DC Jack cable with 2 mm Nut and 0.5 mm Washer to1x4P 3.0 pitch, L=300 mm
DIO Cable
1065-3137
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2-Port USB 2.0 Cable
1069-7893
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm
AC to DC Power Adapter (12 V)
1069-3055
Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W
Screw Copper Pillar Kit - 12 pcs
4x 39.6 mm pillar, 3x 19 mm pillar, 4x 15 mm screw, 1x 5 mm screw
Heatsink for 2.5"-SBC-ADN
1074-8498
Al heatsink w/ pads, 2x standoff , 4x pillar, 6x screw, for 2.5”-SBC-ADN
Heatsink for 2.5"-SBC-AML
1074-8828
Al +Cu heatsink w/ pads, 2x standoff , 4x pillar, 6x screw, for 2.5”-SBC-AML
Starter Kit for 2.5"-SBC-ADN
1074-6151
1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit
Starter Kit for 2.5"-SBC-AML
1074-7412
1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit
