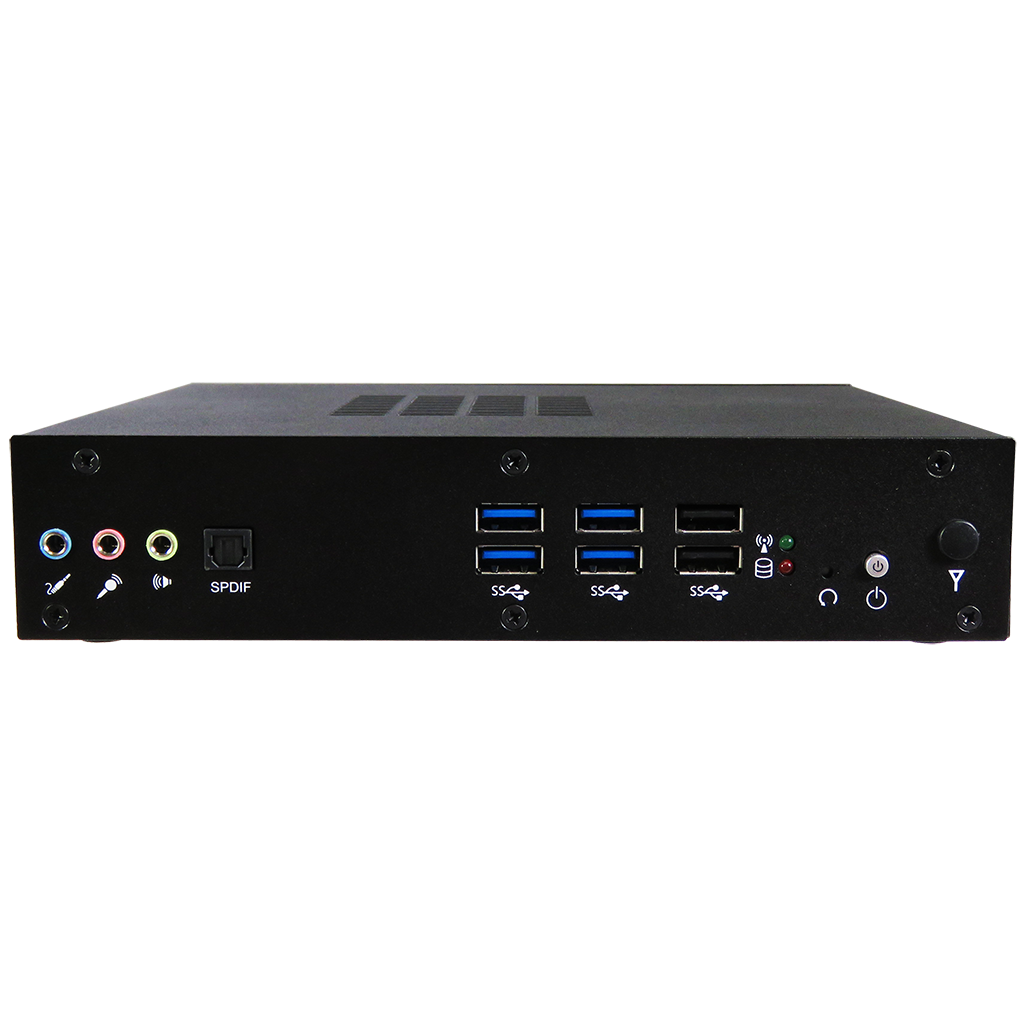

KBox F-220 Series
Box PC with 7th Gen Intel® Core™ / Celeron® S-Series Processors
KBox F-210 Series Box PC Datasheet
2.44 MB | 26. März 2026
KBox F-210 Series
Box PC with 6th Gen Intel® Core™ / Celeron® S-Series Processors
- 1x DP, 2x HDMI 2.0 for video output
- 2x GbE LAN for Ethernet
- 6x USB, 1x RS232/422/485 for peripheral connection
- 1x 2.5” SATA 3.0 HDD / SSD, up to 2x mSATA for storage
- Up to 2x mPCIe for expansion
4K Ultra HD Supported
The KBox F-210 Series is a box PC positioned as a performance-oriented platform for digital signage, KIOSK, medical imaging, gaming or similar infotainment applications.
Full Support to 4K Ultra HD
Powered by socket-based 6th Generation Intel® Core™ / Celeron® S-Series desktop processors with Intel® HD Graphics 530 / 510 GPU integrated, the KBox F-210 Series delivers better graphics performance and faster 4K transcoding capability. Combining higher-bandwidth DDR4 SO-DIMM memory interface and Higher-speed DP and HDMI 2.0 video output ports, it enables smooth data-intensive 4K UHD content delivery between the main memory, processor / storage and display devices.
Rich Audio Interfaces
Besides DP and HDMI 2.0 ports that can output digital audio signal as well, the KBox F-210 Series has a set of stereo Line-out, Line-in and Mic-in jacks and an S/PDIF connector. The later can carry digital multi-channel surround sound signals to the amplifying receivers of digital high-fidelity audio systems in order to round out the audio features of a multimedia presentation.
Technische Daten
| Processor | 6th Gen Intel® Core™ / Celeron® S-Series CPU (FCLGA1151 socket, TDP up to 45 W) |
|---|---|
| Chipset | Intel® H110 Intel® Q170 |
| Main Memory | 2x DDR4 2133 SO-DIMM up to 32 GByte (Core™) 2x DDR4 1866 / 2133 SO-DIMM up to 32 GByte (Celeron®) |
| Graphics Controller | Intel® HD Graphics 530 (Core™) Intel® HD Graphics 510 (Celeron®) |
| Display | 2x HDMI 2.0 (on rear, 4096 x 2160 @ 60 Hz) 1x DP (on rear, 4096 x 2304 @ 60 Hz) Dual display support (H110 models) Triple display support (Q170 models) |
Downloads
Treiber
KBox F-210 Series COM Patch File for Windows
4.6 MB | 26. März 2026
KBox F-210 Series Grapics Driver for Windows
372.07 MB | 26. März 2026
KBox F-210 Series HDA Driver for Windows
242.43 MB | 26. März 2026
KBox F-210 Series INF Driver for Windows
2.72 MB | 26. März 2026
KBox F-210 Series LAN Driver for Windows
297.72 MB | 26. März 2026
KBox F-210 Series ME Driver for Windows
310.56 MB | 26. März 2026
KBox F-210 Series USB3.0 Driver for Windows
5.51 MB | 26. März 2026
Success Story
KBox F-210 Used To Build A Water Quality Bio-monitoring System
Ähnliche Produkte & Lösungen
KBox F-210 Series
Box PC with 6th Gen Intel® Core™ / Celeron® S-Series Processors

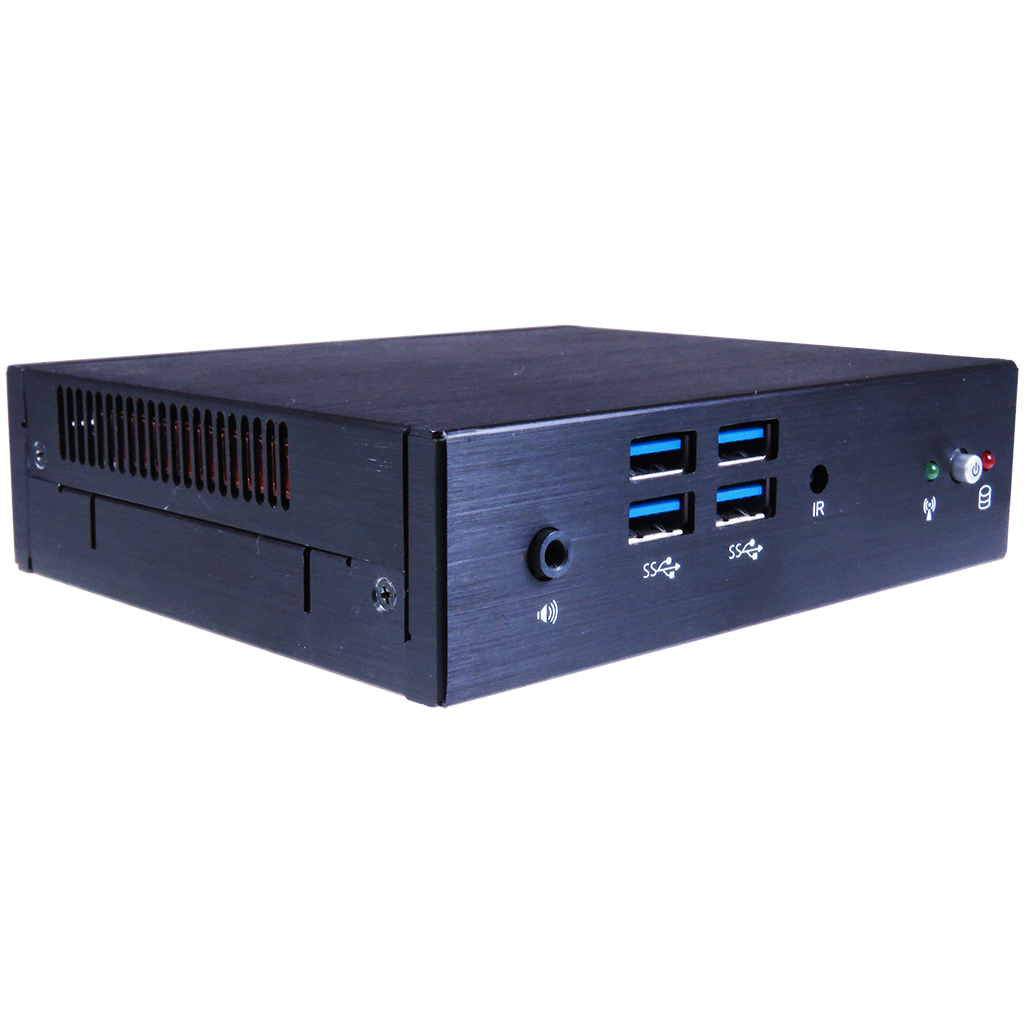

KBox F-100 / 110 Series
