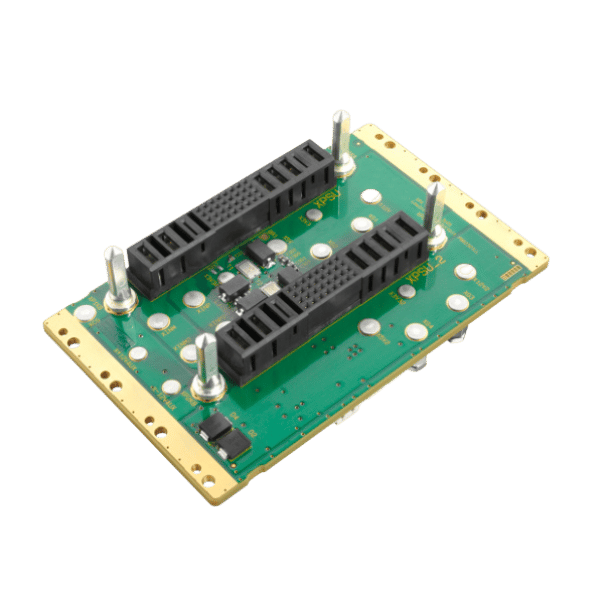

3U VPX Power Backplanes
The 3U VPX Power Backplanes deliver rugged, reliable power distribution tailored for OpenVPX / VPX systems.
Spezifikationen
- J0 control connector for sense and management
- Hand-built with high-quality materials to ensure longevity
- Rugged thermal and humidity tolerance for harsh environments
- Compliance with OpenVPX and VITA 62 standards
These backplanes comply with VITA 62, supporting high input voltages (AC or DC) and multi-slot configurations to feed VS1/VS2/VS3 rails plus auxiliary lines. Hartmann builds them by hand to ensure quality and long service life.
VPX architecture (VITA 46 / OpenVPX) defines high-speed, serial fabrics and modular backplane standards for demanding embedded systems. Hartmann’s 3U VPX Power Backplanes adhere to the VITA 62 specification to deliver and manage the power rails (VS1, VS2, VS3 plus auxiliary lines) required by VPX payload and switch modules. They support either AC (85-265 VAC) or DC (18-36 VDC) input supplies, making them adaptable to a range of system environments. Their design focuses on robustness (wide temperature range, durable connectors, stud outputs) and flexibility (1–3 slot versions, adjustable slot pitch). In systems integration, they form the backbone of power delivery in rugged VPX deployments.
Eigenschaften
| Features | Materials / Construction: • Base material: FR-4, UL 94 V-0 rated • Card thickness: 3 mm Dimensions (examples): • 1-slot: 128.5 × 39 mm • 2-slot: 128.5 × 102 mm • 2-slot with CML: 128.5 × 129 mm Operating Temperature: –40 °C to +85 °C Relative Humidity: Up to 90 % non-condensing Optional Coating: Protective coating availableSupports 1 to 3 power slots in a compact 3U format Dual input options: AC or DC voltage support High current per slot: +12 V, +5 V, +3.3 V rails with auxiliary lines Stud outputs (M3, M4) for clean, reliable power distribution Form Factor: 3U Supported Slots: 1, 2, or 3 power slots Slot Pitch Options: 10HP, 5HP Power Input Options: • High Input Voltage (85-265 VAC) up to 17 A (≈600 W) • Low Input Voltage (18-36 VDC) up to 40 A (≈680 W) Per-Slot Output Currents: • +12 V (VS1): 40 A • +3.3 V (VS2): 20 A • +5 V (VS3): 40 A • +12 V_AUX: 1.5 A • –12 V_AUX: 1.5 A • +3.3 V_AUX: 6 A Power Output Connectors: • M4 studs for 12 V, 5 V, GND • M3 studs for 3.3 V and 3.3 V_AUX |
Downloads
Datasheets
3U VPX Power Backplanes Datasheet
[ 3u-vpx-power-backplanes.pdf, 22 MB, Dec.18.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
