2.5"-SBC-AML/ADN Neu

2.5" (pITX) Single Board Computer mit Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Prozessoren

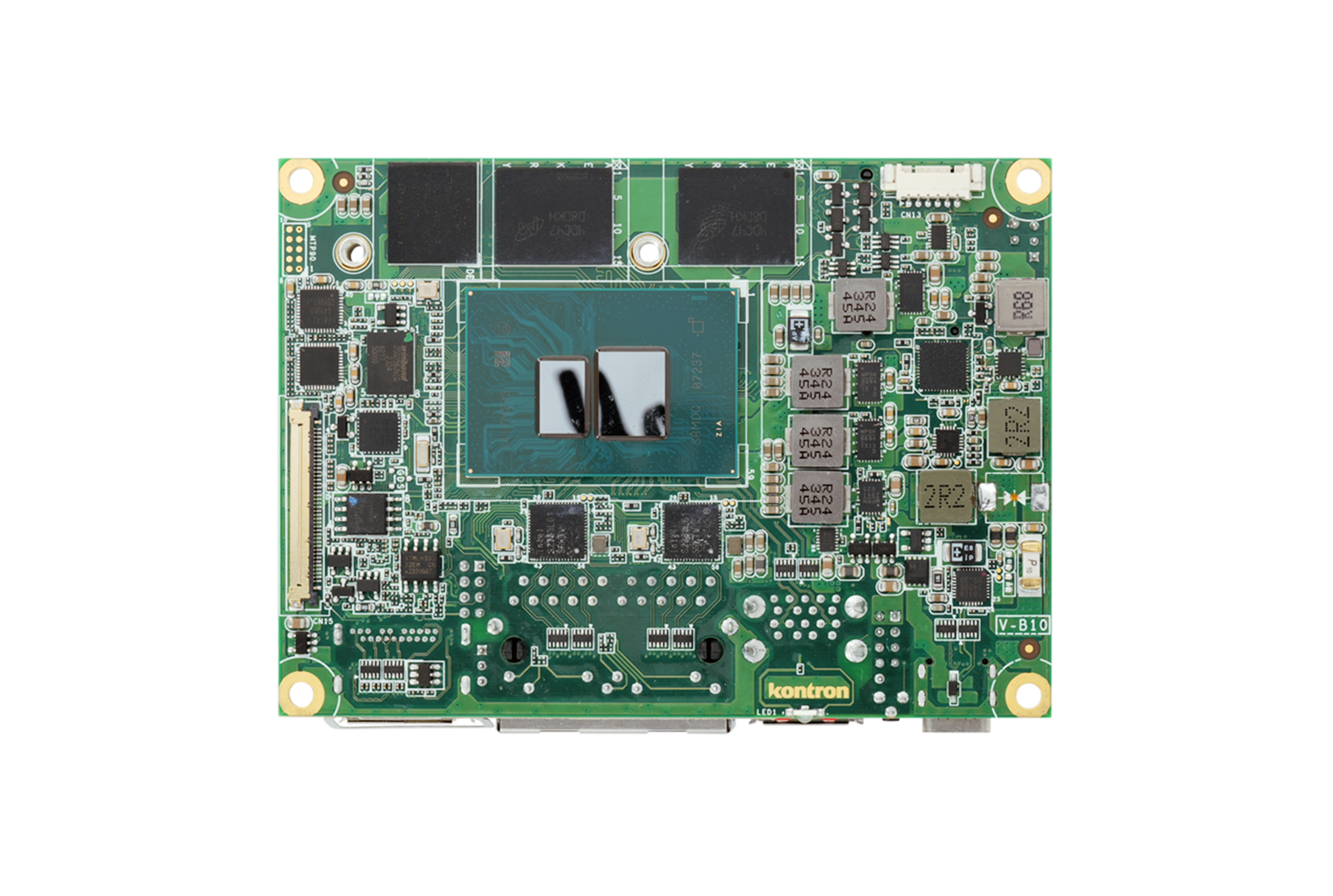

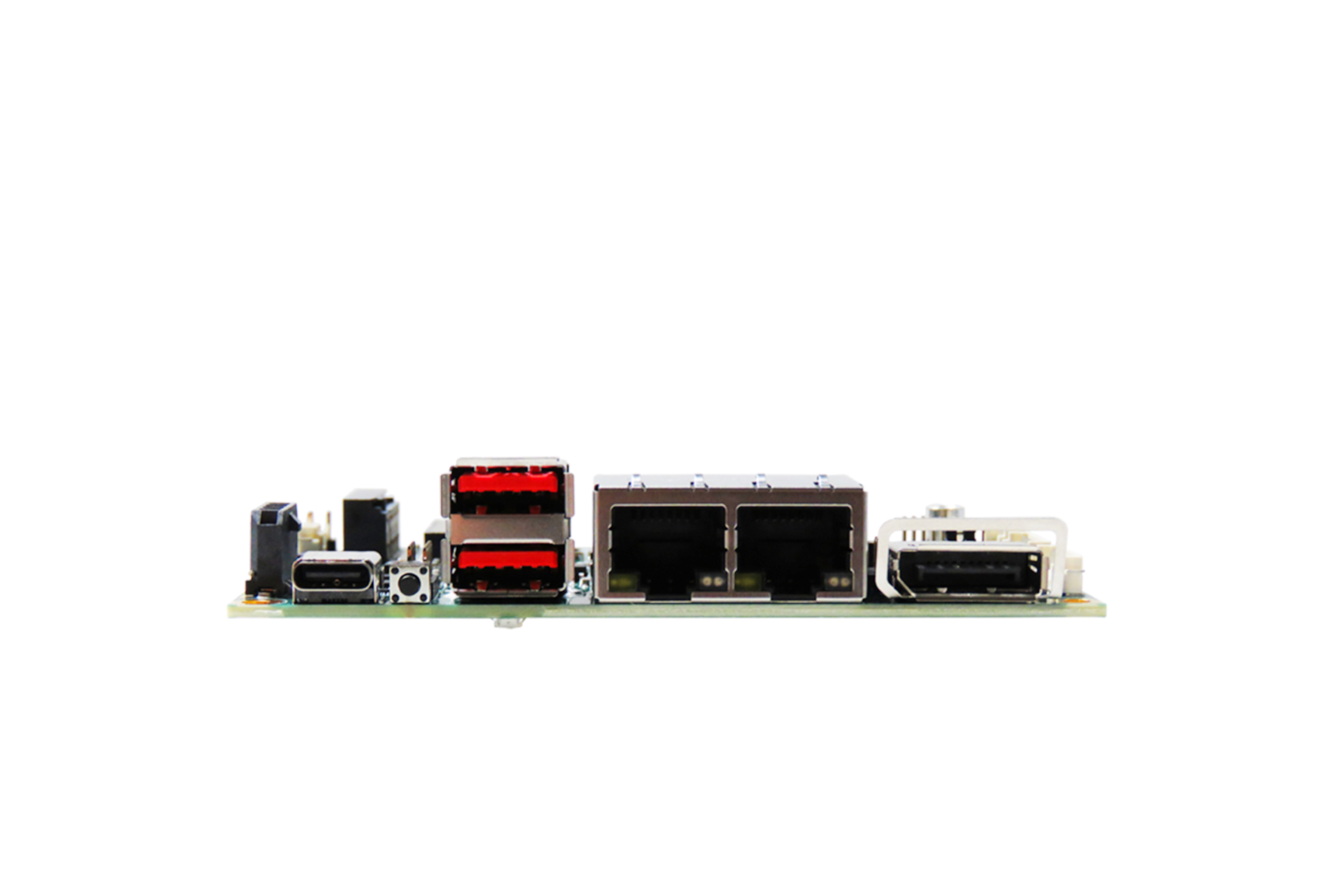

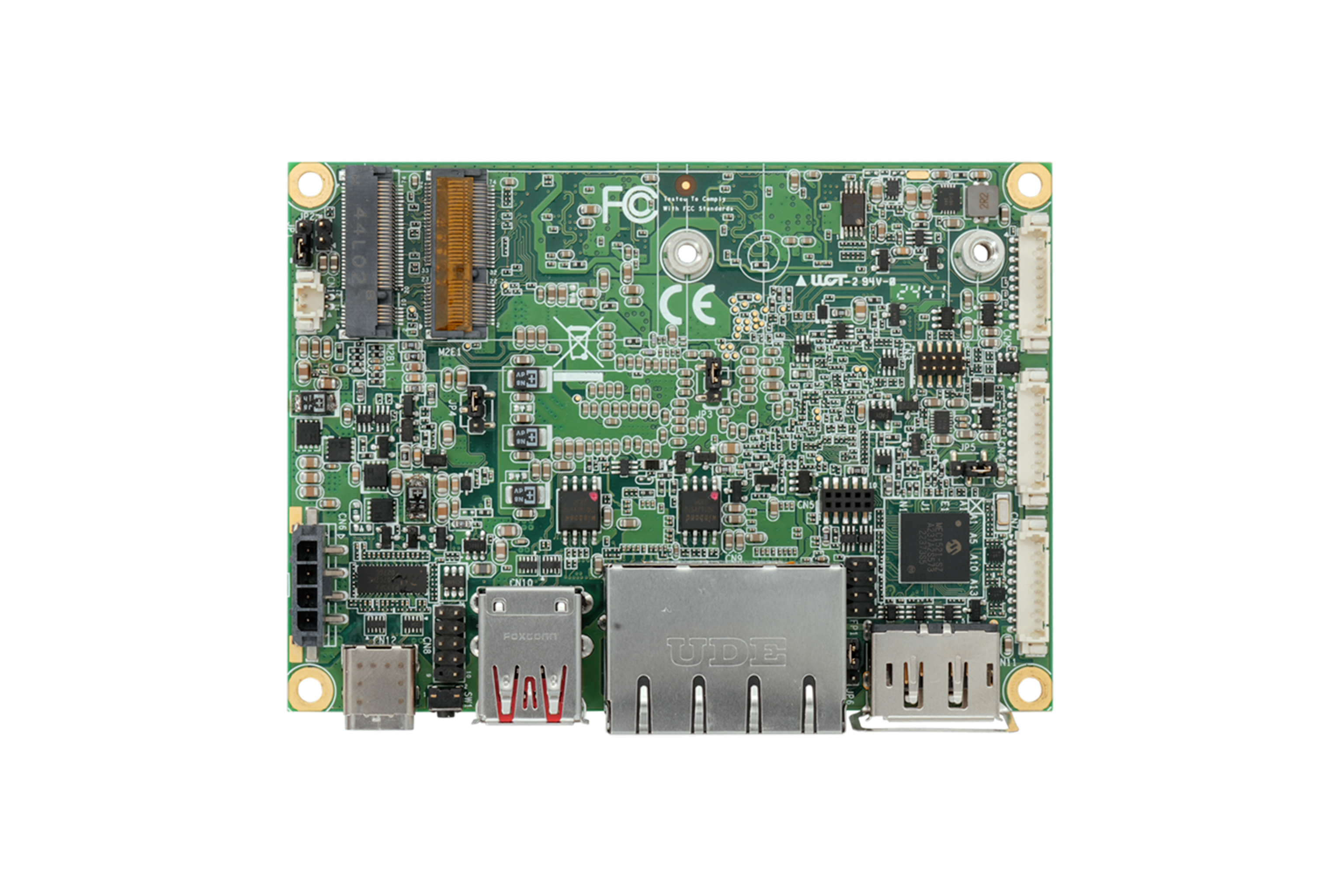

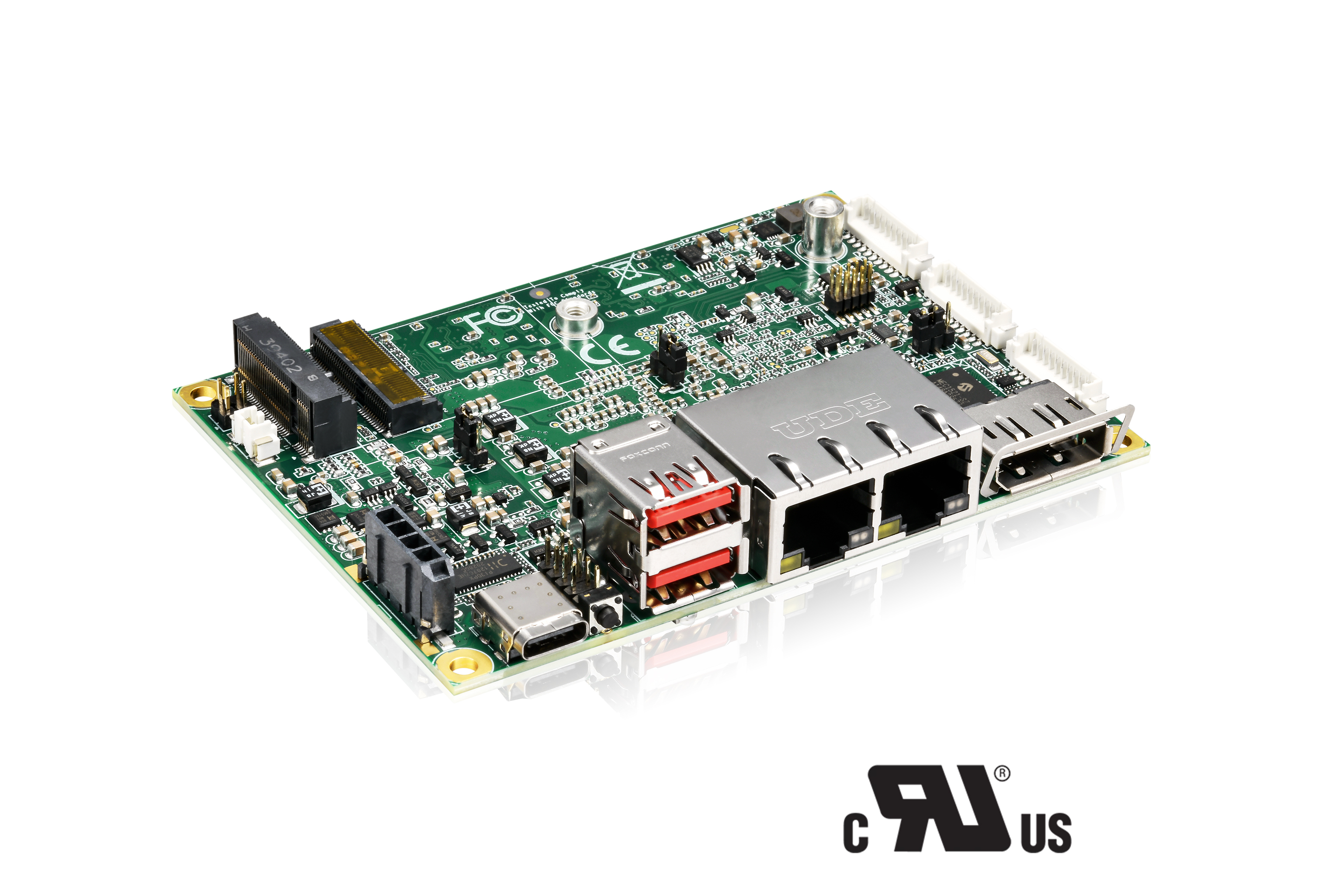

Mouseover Zoom loading...
Spezifikationen
  • Verbesserte Verarbeitungs- und Grafikleistung + schnellere KI-Inferenzfähigkeit
  • LPDDR5-Speicher der nächsten Generation mit einer Datenübertragungsrate von bis zu 4800 MT/s
  • Unterstützung von DP Alt Mode über USB-C zur Übertragung von Video/Audio, Daten und Strom über einen einzigen Anschluss
  • Breiter Eingangsspannungsbereich für mehr Anwendungsumgebungen
  • Hardware-basierte Sicherheit für Datensicherheit und zuverlässige Authentifizierung
Datenblatt herunterladen

Ideal für ultra-compakte oder portable IoT edge Systeme

2,5„-SBC-ADN ist ein 2,5“-Einplatinencomputer im Pico-ITX-Formfaktor, der auf Intel® Atom® x7000RE Series (Codename Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series und Intel® N-Series (Codename Alder Lake N) Prozessoren basierend ist.  Integriert ist die Intel® UHD Graphics Gen12 sowie Hochgeschwindigkeitsspeicher der nächsten Generation LPDDR5. Dadurch kann es eine verbesserte Leistung, eine verbesserte Medientranskodierung und eine schnellere KI-Inferenz liefern, was es zu einem idealen Baseboard macht, das in ein ultrakompaktes oder tragbares IoT-Edge-System oder eine All-in-One-Lösung für eine Vielzahl von Anwendungen wie Smart Retail, Industrieautomatisierung, Gesundheitswesen, Videoverarbeitung und Büroautomation integriert werden kann.



Eigenschaften

Processor [Standard]
Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W)
Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W)
Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W)
Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W)
Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W)
[Project]
Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W)
Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W)
Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W)
Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W)
Intel® N50 (2C 6M, 1.0/3.4GHz, 6W)
Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W)
Main Memory 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down
Graphics Controller Intel® UHD Graphics Gen12
Display 1x eDP (4096 x 2160 @ 60 Hz)
2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear)
Triple Display Support
Ethernet Controller Intel® I226-V/IT
Ethernet 2x 2.5 GbE LAN (RJ45 on rear)
TSN support for models with Atom® processors
USB 2x USB 3.2 Gen 2 Type A (on rear)
1x USB 3.2 Gen 2 Type C (on rear, w/ DP & PD 5 V / 3 A, except Atom® x7000RE)
1x USB 3.2 Gen 1 Type C (on rear, w/ DP & PD 5 V / 3 A, only Atom® x7000RE)
2x USB 2.0 (by header)
Serial Ports 2x RS232 (default) / RS232/422/485 (optional) (by header, Tx / Rx only for RS232 signal)
Digital Inputs (DI) 4x DI (by wafer)
Digital Outputs (DO) 4x DO (by wafer)
eMMC 32 GByte / 64 GByte / 128 GByte eMMC
Expansion 1x M.2 Key B (Type 2242/3042/3052/2280, w/ PCIe x2 / USB 2.0 / SATA / UIM)
1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi))
1x SIM Card Holder (by Wafer)
Input Voltage DC 9 V ~ 20 V
Power connector 1x2-pin pitch 1.25 mm Wafer
BIOS AMI uEFI BIOS w/ 256 Mb SPI Flash
Watchdog Programmable WDT to generate system reset event
System Monitoring Voltages
Temperatures
Real Time Clock Processor integrated RTC
TPM TPM 2.0 Support (Infineon SLB 9672)
FP Header 1x Header for Power Button, Reset Button, Power LED & SATA LED
Form Factor Pico-ITX (100 mm x 72 mm / 3.94" x 2.83")
Operating Temperature 0 °C~ 60 °C / 32 °F ~ 140 °F (Standard)
-40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme)
Storage Temperature -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard)
-55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme)
Humidity 0 % ~ 95 %
Compliance CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized), CSA

Downloads

Datasheets

2.5"-SBC-AML/ADN Datasheet
Revision 20250718, July 18, 2025
[ 2d5-sbc-aml-adn-datasheet-20250718.pdf, 2.21 MB, Jul.18.2025 ]

Manuals

2.5"-SBC-AML/ADN User Guide
Revision 1.5, November 14, 2025
[ 2d5-sbc-aml-adn-user-guide-rev-1-d-5-2025-11-14.pdf, 2.1 MB, Nov.17.2025 ]

2.5"-SBC Copper Pillar, Thermal Solution & M.2 Module Installation Guide
Revision 1.0, July 23, 2025
[ 2d5-sbc-copper-pillar-thermal-solution-md2-installation-guide-rev-1d0-2025-07-23.pdf, 285.95 KB, Jul.24.2025 ]

General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]

Tech Spec Sheet

2.5" SBC Tech Spec Sheet
Revision 20250219, February 19, 2025
[ 2d5-sbc-tech-spec-sheet-20250219.pdf, 2.81 MB, Nov.05.2025 ]

3.5" SBC Tech Spec Sheet
Revision 20250320, March 20, 2025
[ 3d5-sbc-tech-spec-sheet-20250320.pdf, 2.68 MB, Nov.05.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Varianten

2.5"-SBC-ADN-1-i3-N305
Intel® Core™ i3-N305, Intel® I226-V LAN Chip, 16 GByte LPDDR5, 128 GByte eMMC, 2x RS232/422/485, Operating Temperature: 0 °C ~ 60 °C (project based)
2.5"-SBC-ADN-8-N97
44013-ST-2001		 Intel® N97, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-ADN-9-N97
44013-ST-2003		 Intel® N97, Intel® I226-V LAN Chip, 4 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C (project based)
2.5"-SBC-ADN-A-N97
44013-ST-2002		 Intel® N97, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-ADN-B-i3-N305
44013-ST-2004		 Intel® Core™ i3-N305, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-AML-4-x7211RE-XT
44013-XT-2009		 Intel® Atom® x7211RE, Intel® I226-IT LAN Chip, 8 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AML-5-x7433RE-XT
44013-XT-2008		 Intel® Atom® x7433RE, Intel® I226-IT LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AML-6-x7835RE-XT
44013-XT-2006		 Intel® Atom® x7835RE, Intel® I226-IT LAN Chip, 16 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C

Zubehör

DC Jack Cable
1064-2433		 DC Jack Cable Spannungseingang für 3.5" SBC in Verbindung mit AC/DC Konverter 1069-3055
COM_Port Cable
1064-2427		 COM_Port Cable Serielle Schnittstellenkabel D-SUB 9P (männlich) zu SBC, 350mm
DIO Cable
1065-3137		 DIO Cable Digital IO Kabel D-SUB-9P (Female) zu SBC, 200mm
2-Port USB 2.0 Cable
1069-7893		 2-Port USB 2.0 Cable 2x USB Type A Kabel zu SBC, mit Frontblende,270 mm
AC to DC Power Adapter (12 V)
1069-3055		 AC to DC Power Adapter (12 V) AC/DC Wandler AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W, benötigt Kabel #1064-2433
Screw Copper Pillar Kit - 12 pcs
Screw Copper Pillar Kit - 12 pcs 4x 39.6 mm pillar, 3x 19 mm pillar, 4x 15 mm screw, 1x 5 mm screw

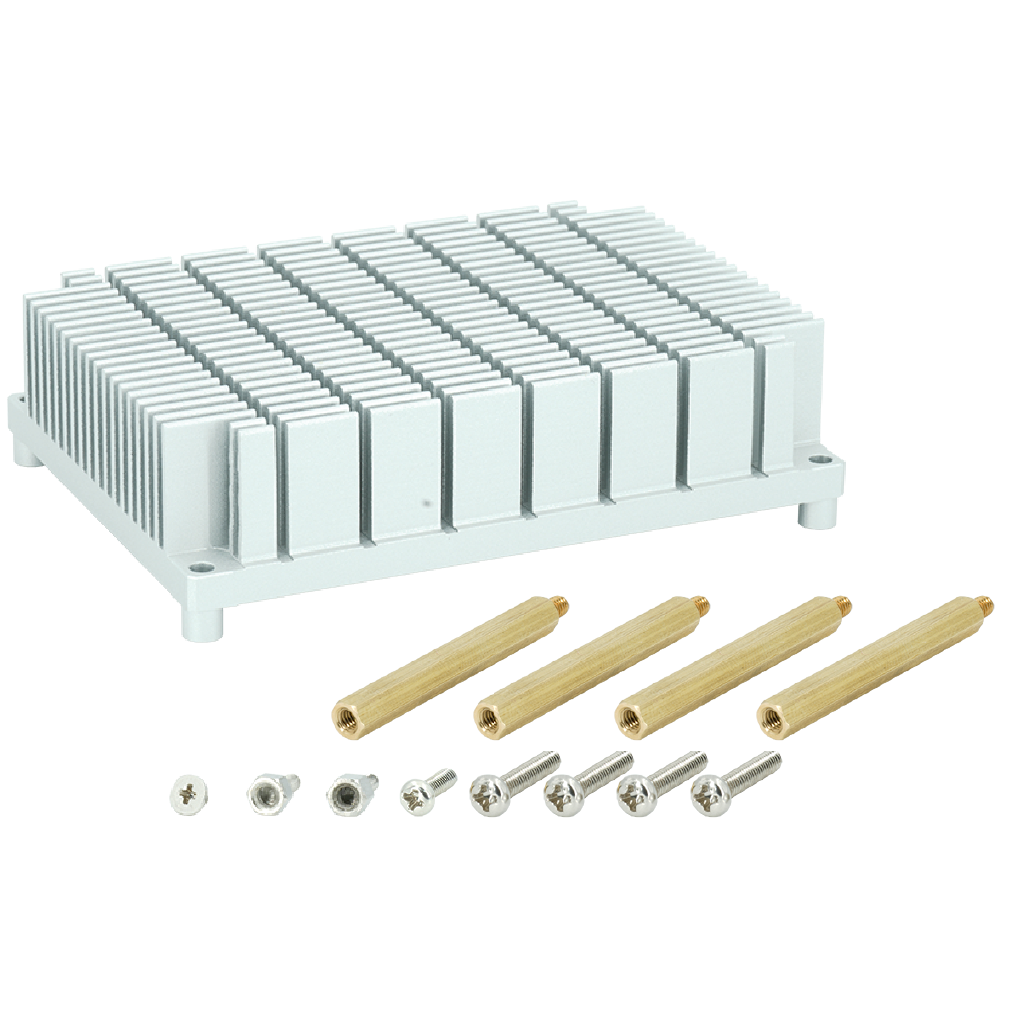

Heatsink for 2.5"-SBC-ADN
1074-8498		 Heatsink for 2.5\ Al heatsink w/ pads, 2x standoff, 4x pillar, 6x screw, for 2.5”-SBC-ADN

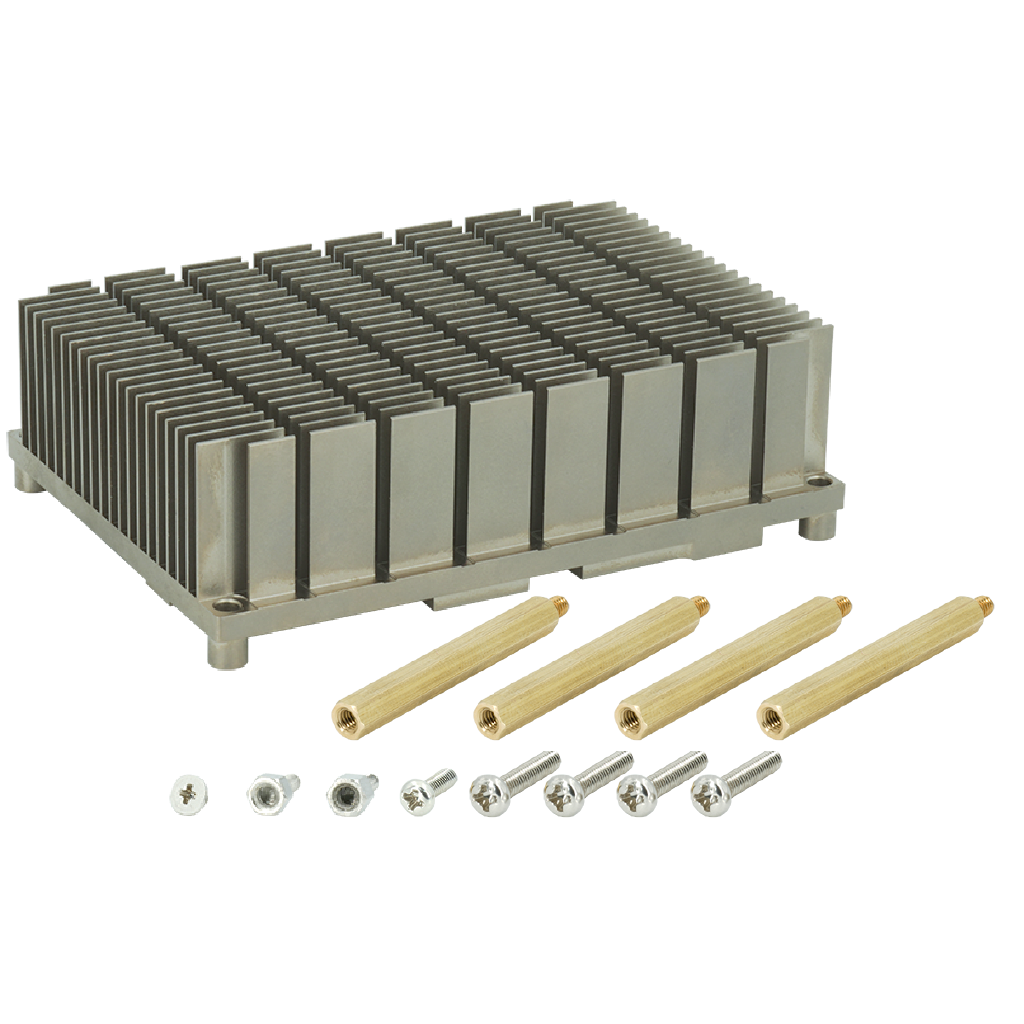

Heatsink for 2.5"-SBC-AML
1074-8828		 Heatsink for 2.5\ Al +Cu heatsink w/ pads, 2x standoff, 4x pillar, 6x screw, for 2.5”-SBC-AML

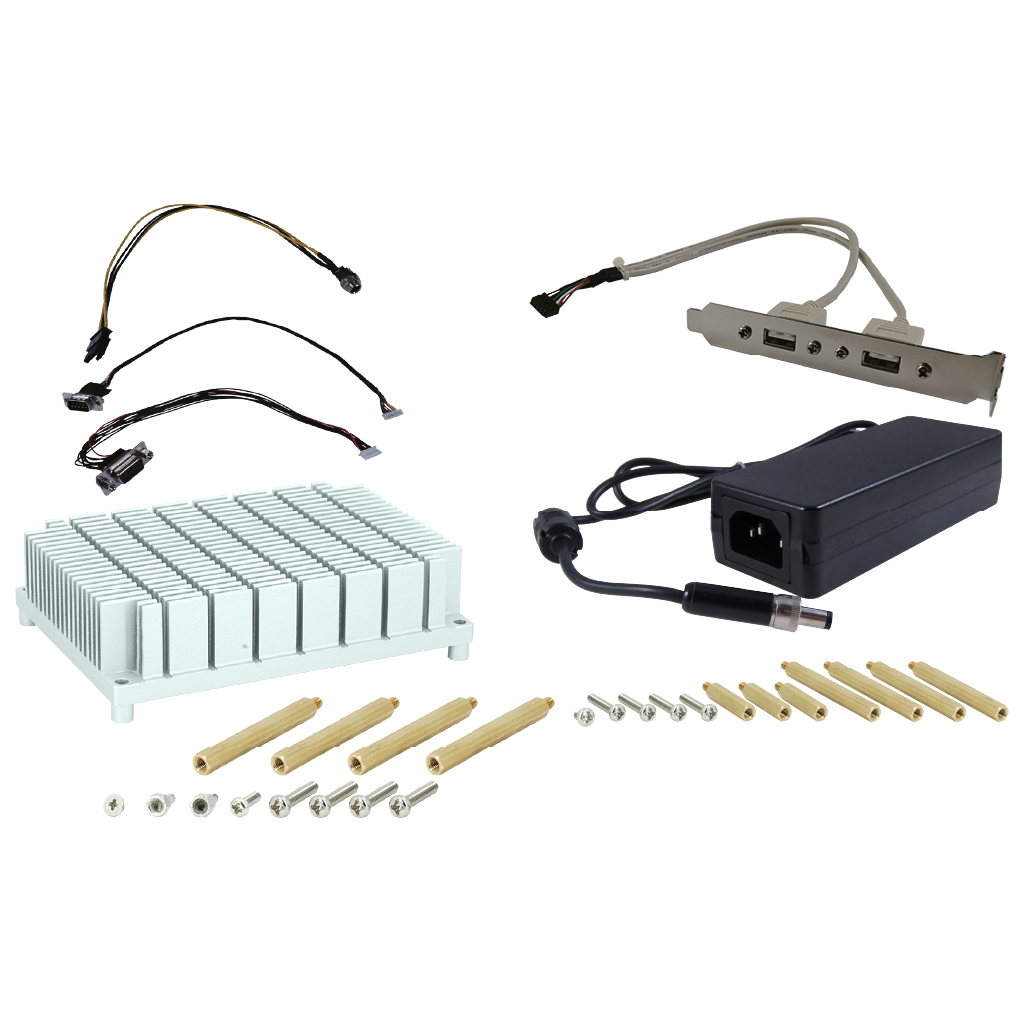

Starter Kit for 2.5"-SBC-ADN
1074-6151		 Starter Kit for 2.5\ 1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit

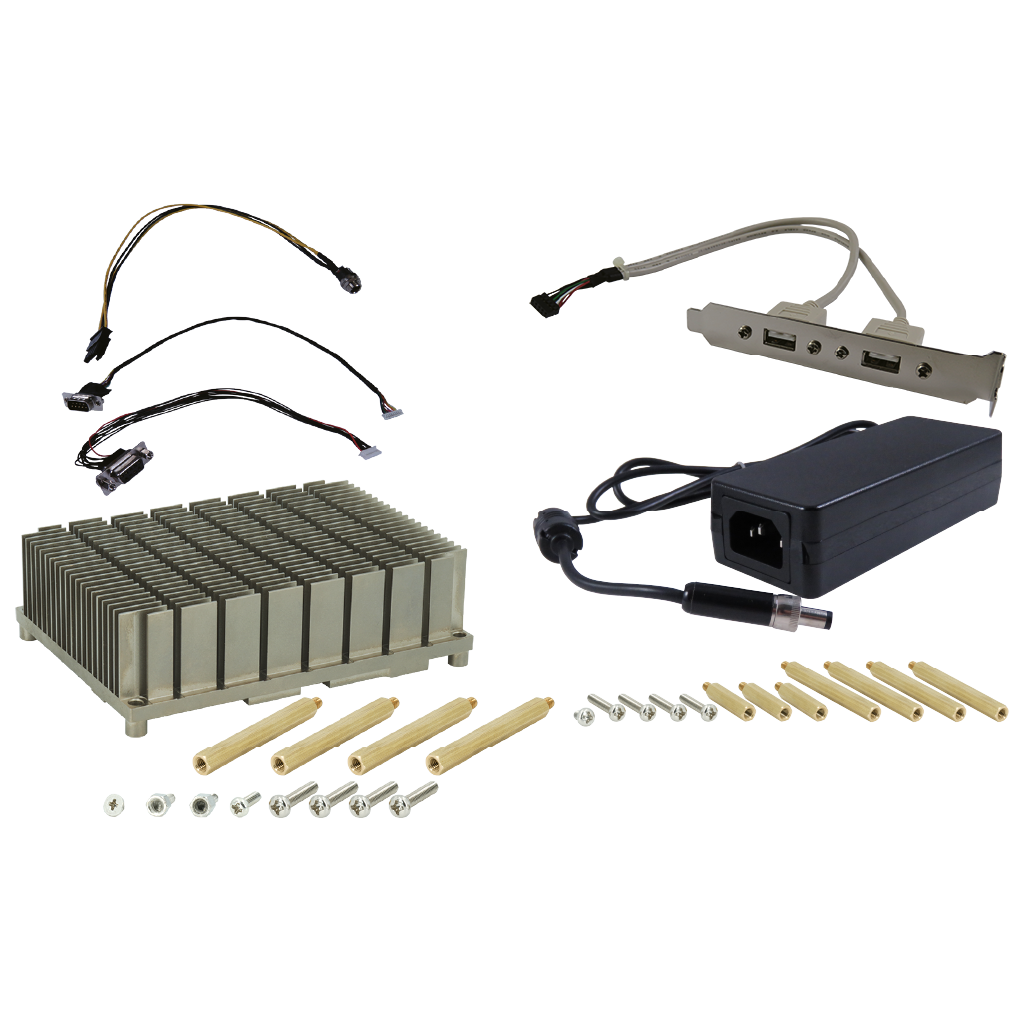

Starter Kit for 2.5"-SBC-AML
1074-7412		 Starter Kit for 2.5\ 1x DC In Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink Kit
