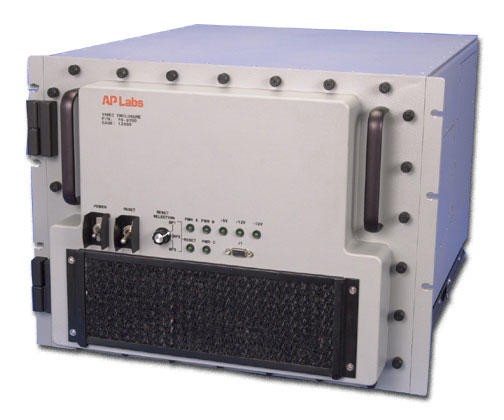

FS-8718 (with doghouse option) This product is legacy

18-slot 8U VME Rugged Chassis with dog house option

Specifications

COTS/NDI
8U VME card cages with up to
18 slots, monolithic backplane
Tested to meet shock & vibration requirements of MIL-STD-810E, method 514.4 (categories 1,4,5,6,8) MIL-STD-910D &
MIL-STD-167/1
800 Watts PFC power supply standard; other values can be specified
Cooling can be custom configured

The Kontron FS-8718 with dog house option is a ruggedized 18-slot, 8U VME enclosure, designed to meet MIL-STD-810E, MIL-STD-901D, and MIL-STD-167/1 shock and vibration specifications for severe environments, as well as MIL-STD-461C for EMI specifications.

Downloads

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

All Downloads

FS-8717 (w/doghouse)
[ datasheet_fs-8718-option-.pdf, 648.5 KB, Nov.27.2013 ]
