COMe Starterkit QorIQ This product is legacy

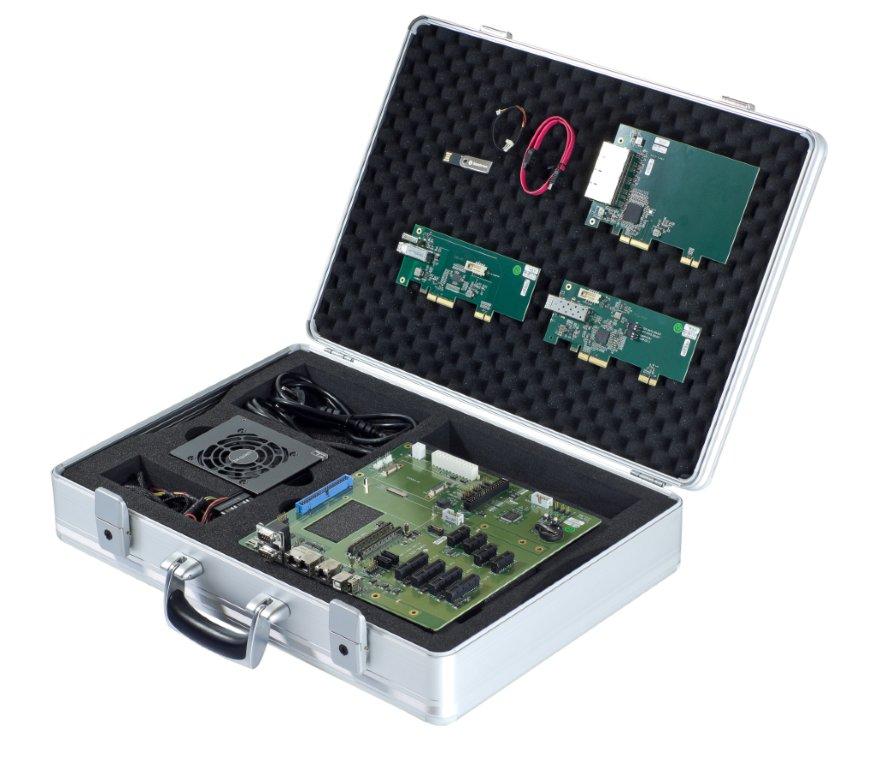

COM Express® Starterkit w/ Evaluation Carrier QorIQ™

Specifications

Complete Starterkit for COM Express® QorIQ™ COM
(basic and compact form factor)
includes Adapter Cards for SRIO/SGMII/XAUI
Includes all connectors and cables for a quick start
Select your Kontron COMe-QorIQ module and begin evaluating within minutes of opening the kit.

Download Datasheet

incl. additional Adapter Cards

The COM Express® Starterkit for Kontron QorIQ™ is specially compiled for Kontron Computer-on-Modules with COM Express® QorIQ™ pin-out. The 4 PCI Express slots on the Evaluation Carrier are connected to the SerDes Interfaces provided by the dedicated COMs and can be equipped with different adapter cards which are included in the Starterkit. Start your research and development with this fast and flexible solution for express evaluation purposes for Freescales Power technology.

Features

Cable Interface

2 x KAB-USB-1
1 x KAB-SATA-1

Adapter
1 x ADA-Eval-QorIQ-SRIO (68100-0000-01-0)
1 x ADA-Eval-QorIQ-SGMII (68100-0000-02-0)
1 x ADA-Eval-QorIQ-XAUI (68100-0000-03-0)

Evaluation board

COMe Eval Carrier QorIQ (68100-0000-00-0)

Material

Aluminium Carrying Case
1 x USB stick with documentation

Mounting

1 x COM Express® Mounting Kit 8mm 1set
10 x Distance bolt incl. screws

Power Supply

1 x SFX-NT (BQT SFX-300W) 300 W wide range
1 x power cord Europe
1 x power cord US

Supported Modules

Kontron COM Express® basic and compact QorIQ COM
