COMe Starterkit HMI T1 This product is legacy
COM Express® Starterkit w/ Reference Carrier HMI Type 1
34100-0000-00-0,
7“ WVGA Panel with touch, 12V power supply, cables and accessories, packed in plastic case
Specifications
- Complete Kit for latest COM Express® mini technology
- Equipment for express evaluation purposes
- Includes all connectors and cables for a quick start
- COM Express® mini COM.0 Type 1 compatible
COM Express® Starterkit w/ Reference Carrier HMI Type 1, display and more.
The COM Express® Starterkit w/ Reference Carrier HMI Type 1 is designed to give you a head start for your designs with COM Express® mini COMs. In the Starter kit you will find the COM Express® Reference Carrier HMI Type 1 to provide an easy connection to Kontrons COM Express® mini module. Working in a low power range between 4,75V – 14V, the COM Express® HMI Reference Carrier Type 1 fulfils all user requirements. The Reference Carrier board offers 2 x SerialATA, Ethernet RJ45 port, USB, HD Audio interfaces.
The Starterkit also includes a 7" WVGA display (800 x 480) incl. adapter, JILI 40 flatfoil cable, touch panel, 1 x COM cable, 2 x CAN cable, 2x USB cable, Power supply and an adapter incl. cable for Audio S/PDIF, Line In / Out.
For the COM Express® Reference Carrier Type 1 the following articles are necessary:
The Starterkit also includes a 7" WVGA display (800 x 480) incl. adapter, JILI 40 flatfoil cable, touch panel, 1 x COM cable, 2 x CAN cable, 2x USB cable, Power supply and an adapter incl. cable for Audio S/PDIF, Line In / Out.
For the COM Express® Reference Carrier Type 1 the following articles are necessary:
Features
| Power Supply | 12V PowerSupply PAA060F, with power cable |
| Display | 1 x Display PM070WL4, 7" WVGA 800 x 480, with assembled backlight cable |
| Cable Interface | 2 x USB socket, KAB-USB-1 2 x CAN socket, KAB-CAN-1 (one COM2/one CAN) 1 x RS232 socket (COM1), KAB-DSUB9-3 1 x RS485 (COM2) 1 x JILI cable, KAB-JILI30-TSLD01 1 x USB cable for touch controller, ETP-CB-SXU00 |
| Special Features | 1 x Audioboard, B08700-KAB-XX-XX01, with cable |
| Operating System | USB stick with a demo image of Win CE 6.0 incl. QNX® Neutrino® fastboot demo video |
| Material | with manual |
| Supported Modules | COM Express® mini nanoETXexpress-SP. COM please order separately. |
| Mounting | nanoETXexpress mounting kit (screws and spacers) |
| Evaluation board | COM Express® HMI Baseboard Type 1 Small form factor 120 mm x 70 mm; max component height below 18 mm. For more technical information please consult the Datasheet of the nanoETXexpress-HMI Baseboard |
| Touch Screen | 1x USB touch controller, ETP-MB-4000UACG, incl. USB cable for touch controller, ETP-CB-SXU00 |
Downloads
Datasheets
Starterkits and Evaluation Boards for COM Express®, Datasheet
Datasheet Starterkits and Evaluation Boards for COM Express®.
[ come_starterkits_20170710_datasheet.pdf, 6.88 MB, Aug.31.2017 ]
Manuals
nanoETXexpress-HMI Baseboard short form manual
(Release Candidate)
Short form manual fo the nanoETXexpress-HMI Baseboard incl. Schematics and Images
[ shortform-manual_nanoetxexpress-hmi_starterkit.pdf, 1.02 MB, Sep.11.2017 ]
nanoETXexpress-HMI Baseboard (ePDAnano), Manual
[ adacm111.pdf, 1.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
White Papers
COM Express® Design Guide by PICMG, Rev. 2.0
PICMG Guidelines for designing COM Express® Carrier Boards, Rev. 2.0
[ picmg_comdg_2-0-released-2013-12-06.pdf, 3.27 MB, Apr.20.2023 ]
Whitepaper COM Express COM.0 Rev. 2.0
COM Express COM.0 Rev. 2.0 addresses the new functionalities that Intel®, AMD and other manufacturers are integrating in their upcoming processor families. Rev 2.0 adds two new pin-outs that make space for possible future technologies.
[ whitepaper_com-express-com-0-rev--2-0_en.pdf, 2.32 MB, Apr.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
More Downloads
All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
Accessories
|
HSP COMe-mSP1 thread
34001-0000-99-0 |
Heatspreader 11mm for COMe-mSP1, threaded mounting holes | more | |
|
HSP COMe-mSP1 slim thread
34001-0000-99-2 |
Slimline heatspreader 6.5mm for COMe-mSP1, threaded mounting holes | more | |
|
HSP COMe-mSP1 through 34001-0000-99-1 |
Heatspreader 11mm for COMe-mSP1, through holes | ||
|
HSK COMe-mSP1 slim passive thread 34001-0000-99-0C01 |
Passive cooling solution with slimline HSP for COMe-mSP1, threaded mounting holes | ||
|

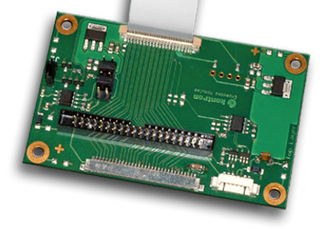

KAB-ADAPT-LVDS
61032 |
|
Evaluation Board to adapt LVDS flatpanels via JILI cable. | more |
