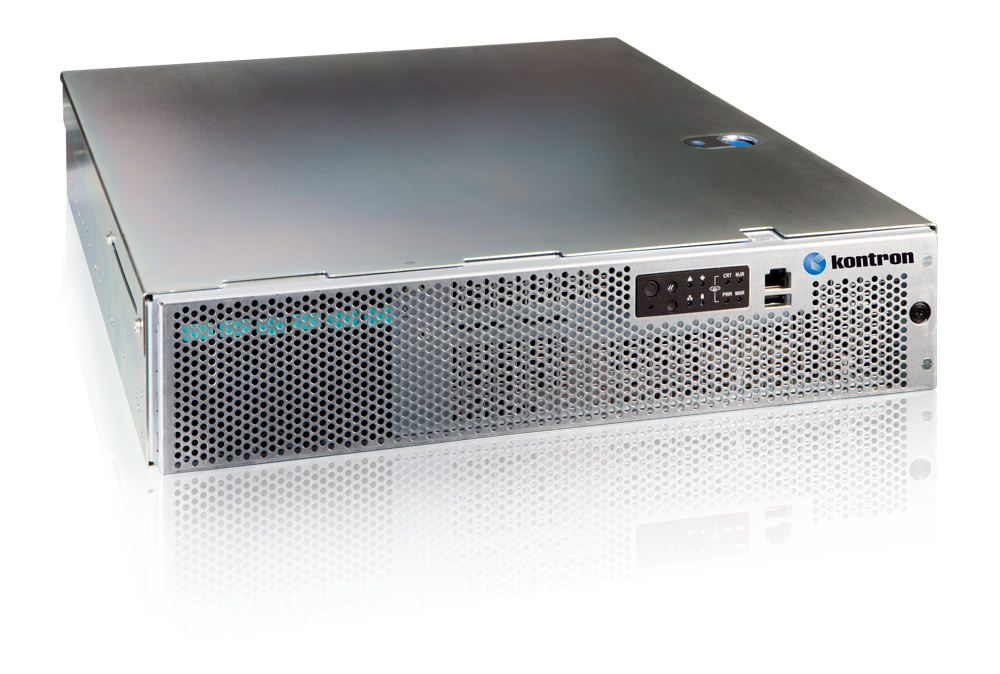

CG2200 Carrier Grade Server This product is legacy
2U Carrier Grade Server
Specifications
- Dual Intel® Xeon® E5-2600 v2 10-Core Series (20C, 40T per 2S E5 system)
- 16 slot, 4 channel support of DDR3 RDIMM/UDIMM;
- supports 256GB maximum (with 16GB DIMM)
- Optimized for PCI-E IO card implementation with PCI-E riser and LP card support;
- Hot-Swap 2.5” SAS HDDs / SATA SSDs
- Hot swap, redundant fans
- Integrated BMC (iBMC) with advanced options
- Front panel: 1 serial, 1 USB 2.0
- Rear panel: 1 serial, 4 USB 2.0, 1 management NIC port (optional RMM4)
- Quad rear GbE NIC ports (standard)
Dual 8-Core Intel Xeon E5-2600 Processor Series
The Kontron CG2200 carrier grade communication rack mount server will support Dual Intel® Xeon® E5-2600 v2 10-Core Series (20C, 40T per 2S E5 system).
Telecom, network and broadcast equipment vendors seeking new high performance system level designs will appreciate the boost in dual-socket, 10-core processing power, complemented by an optimized I/O and storage feature set, with either dual redundant AC or DC power options.
This 20” deep ruggedized server is built to meet NEBS level-3 compliance and is backed by an extended lifecycle.
Telecom, network and broadcast equipment vendors seeking new high performance system level designs will appreciate the boost in dual-socket, 10-core processing power, complemented by an optimized I/O and storage feature set, with either dual redundant AC or DC power options.
This 20” deep ruggedized server is built to meet NEBS level-3 compliance and is backed by an extended lifecycle.
Features
| Processor | TYPE Dual 10-Core Intel® Xeon® Processor E5-2600 v2 Family CHIPSET Intel® C600 Chipset |
| Ports | SERIAL PORTS RJ-45 serial connector in front and one DB-9 connector in rear VIDEO PORT One DB-15 video connector (rear) USB 2.0 PORTS Five (5): one front / four rear MANAGEMENT PORTS One RJ-45 connector to support optional Intel® Remote Management NIC |
| Main Memory | TYPE DDR3 technology at 1066/1333/1600 MT/s DIMM SLOTS Sixteen (16) RDIMM or UDIMM slots CAPACITY 256 GByte (non-mirrored mode with 16 GByte DIMMs) |
| Dimensions (H x W x D) | 3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm) |
| Temperature | TEMPERATURE, OPERATING 5 °C to 40 °C (41 °F to 104 °F) TEMPERATURE, NON-OPERATING -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity | 5 Hz @ 0.001g2/Hz to 20Hz @ 0.01g2/Hz (slope up)*; 20 Hz to 500Hz @ 0.01g2/Hz (fl at)*; Input acceleration is 2.20g RMS*; 10 min per axis in all 3 axes on all samples*; Random control limit tolerance in +/- 3 dB* |
| Shock | SHOCK, OPERATING Half-sine 2 G, 11 ms pulse, 100 pulses in each direction, on each of the three axe** SHOCK, NON-OPERATING Trapezoidal, 25 G, 205 inches/sec delta V, two drops in per face, (total 12 drops)** |
Downloads
Datasheets
CG2200 2U Carrier Grade Server
[ cg2200_carriergradeserver_20170712_datasheet.pdf, 1.5 MB, Aug.31.2017 ]
Manuals
Installation and Maintenance Guide Revision 1.5
This manual is for trained system technicians who are responsible for troubleshooting, upgrading, and maintaining this server. This document provides a brief overview of the features of the system followed by a list of accessories or other components you may need or want to purchase, instructions for how to add or replace components in the CG2200 server, and troubleshooting information.
NOTE: Always be sure to search for CG2200 on the Support website at http://us.kontron.com/support/for the latest version of this manual with possible updates since this version was published.
[ cg2200__i-mguide_1-5.pdf, 6.56 MB, Apr.20.2023 ]
SEL Troubleshooting Guide
System Event Log troubleshooting guide
[ s1400_s4600_systemeventlog_troubleshooting.pdf, 1.21 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
BIOS
SUP20 - This update package includes the following system software updates: ~UPDATED~ Apr. 2019
- BIOS 02.06.0007- ME Firmware 02.01.07.328- BMC Firmware 01.28.r10603- FRUSDR 08
Please read the CG2200_SUPxx_Update_Instructions.txt carefully prior to updating the firmware on your system.
IMPORTANT: Do not power off or reset the system while the update is in progress. Do not interrupt the BIOS POST during the first system reboot.
[ cg2200_sup20_bios02060007_me020107328_bmc0128r10603_frusdr08.zip, 31.21 MB, Apr.10.2019 ]
SUP19 - This update package includes the following system software updates: ~UPDATED~ Apr. 2019
- BIOS 02.06.E006- ME Firmware 02.01.07.328- BMC Firmware 01.28.r10603- FRUSDR 08
Please read the CG2200_SUPxx_Update_Instructions.txt carefully prior to updating the firmware on your system.
IMPORTANT: Do not power off or reset the system while the update is in progress. Do not interrupt the BIOS POST during the first system reboot.
[ cg2200_sup19_bios0206e006_me020107328_bmc0128r10603_frusdr08.zip, 24.44 MB, May.08.2018 ]
Ethernet Drivers
S2600CO Onboard NIC drivers for Windows 2008
[ 474381_intel_lan_msft_v17-1_whql.zip, 68.86 MB, Apr.20.2023 ]
S2600CO Onboard NIC drivers for Linux
[ 474473_intel_lan_linux_v17-1.zip, 3.5 MB, Apr.20.2023 ]
Tools
How to configure and install CG2200 without a CD/DVD drive
Download pdf for standard procedure to burn KDA on SDcard and boot it on CG2200
[ cg2200_confi_install.pdf, 620.45 KB, Apr.10.2018 ]
Kontron Deployment Assistant (KDA) image for SD media
[restrictions apply]
KDA v1.2
This is the Kontron Deployment Assistant (KDA) image (iso) for the CG2200. Refer to CG2200 KDA "HowTo Generate Bootable SDCard or USBStick from ISO" to make the ISO image usable onto a SD card or USB Stick.
[ kda-1-2-iso.zip, 1.69 GB, Apr.20.2023 ]
Technical Info
Baseboard Technical Product Specification
Provides board-specific information detailing the features, functionality, and high-level architecture of the Intel S2600CO Server Board.
[ s2600co_tps_rev16.pdf, 4.1 MB, Jul.03.2018 ]
CG2200 System Technical Product Specification (TPS)
CG2200 Technical Product Specification v1.4
Provides detailed information about the Kontron CG2200 Carrier Grade Server, including information about the chassis hardware, cables, connectors, system boards, power subsystem, and regulatory requirements.
[ cg2200_tps_1-4.pdf, 5.3 MB, Apr.20.2023 ]
Compatibility Matrix
Tested Hardware and Operating System List (THOL) Revision 1.8
[ cg2200_thol.pdf, 446.12 KB, Apr.20.2016 ]
Tested Memory List
Tested Memory List v7
[ cg2200_tml_rev7.pdf, 51.06 KB, Jun.13.2016 ]
Ordering Guide
CG2200 Configuration Guide
CG2200 Systems and Spares Ordering Guide v1.5 ~LAST UPDATE~ 2020-03-12
[ cg2200_configguide_1_5.pdf, 1.69 MB, Jul.07.2021 ]
Test Reports
MDDS
Material Declaration Data Sheet for CG2200 and associated spares
[ kontron-cg2200-mdds-12-jul-2012.pdf, 107.19 KB, Nov.27.2013 ]
China RoHS
[ kontron-cg2200-china-rohs-declaration-k00245-001.pdf, 210.81 KB, Nov.30.2015 ]
EMC TEST REPORT
EMC TEST REPORT for CG2200 and spares
[ kontron-20cg2200-20fcc_ices_ce_vcci_as-nzs-20emc-20test-20report-2098889-2025-july-2012.pdf, 3.71 MB, Nov.17.2015 ]
