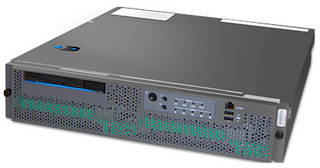

Carrier Grade Server TIGI2U This product is legacy
2U Carrier Grade Server for Telecom Applications
Specifications
- NEBS-3 / ETSI compliant
- Long life support (5 years)
- Short depth, ruggedized 2U chassis
- Dual, redundant AC or DC power option
- Telco alarm management
NEBS-3/ETSI-compliant 2U Rack Server Supporting Telecom Solutions Optimized for Computation
Shipping since 2005, the Carrier Grade Server TIGI2U has a proven track record in the Telecom industry, and fulfills legacy requirements for telco customers.
As a NEBS-3 and ETSI-compliant server, the TIGI2U can withstand extreme heat, humidity, altitude, zone 4 earthquake shock, and is flame-resistant.
Advanced server management and telco alarm management features provide visual, audible (optional) and SNMP event indications of faults. These features are consistent with the rigid requirements of the Telecom Central Office environment.
As a NEBS-3 and ETSI-compliant server, the TIGI2U can withstand extreme heat, humidity, altitude, zone 4 earthquake shock, and is flame-resistant.
Advanced server management and telco alarm management features provide visual, audible (optional) and SNMP event indications of faults. These features are consistent with the rigid requirements of the Telecom Central Office environment.
Features
| CPU | Dual socket support for the Intel® Xeon® Processor at 3.2 GHz / 2M L2 cache with 800-MHz FSB |
| Dimensions (H x W x D) | 3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm) |
| Alarm Card | Telco Alarm Management - front-panel feature supports central office alarm systems |
| Drive bays internal | 2 internal U320 SCSI disk drives (hot swap and front accessible); Slimline CD-ROM (option for DVD support) |
| Front Bezel | Standard gray bezel |
| Main Memory | Six DIMM slots of DDR-2 400 SDRAM (12 GB max with 2G DIMMs; 16GB max with 4G DIMMs) |
| Management | Intel Server Management 8.4; Remote management via LAN port: In Band (OS present) / Out of Band (OS absent) support; IPMI 1.5 compliant; WfM 2.0 compliant |
| PCI | Support for up to 3 low profile or 3 full-height / full-length 64-bit x 100-MHz PCI-X adapters |
| Power Supply | Dual-redundant 600W AC or DC hot-swap power supply (2nd power supply optional) |
| Chipset | Intel® E7520 - 800MHz Front Side Bus |
| Rear I/O | Integrated dual Intel 10/100/1000Mb Ethernet |
Downloads
Manuals
TIGI2U Product Guide
[ d15006-004_tigi2u_ug.pdf, 2.73 MB, Sep.11.2017 ]
Telco Alarm Manager User Guide - Rev. 1.7
[ tam_user_guide.pdf, 149.86 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
BIOS
System Update Package
[ tigi2u_nsi2u_sup_v1-18.zip, 6.53 MB, Apr.20.2023 ]
Drivers
Intel® On-Board Network Driver for Linux*
[ crms_nic_linux_12-4.zip-2, 2.78 MB, Apr.20.2023 ]
ESG-SHV Backplane Driver for Microsoft Windows*
[ esg-shv-v5-00-6262-1.zip, 9.87 KB, Apr.20.2023 ]
Intel® On-Board NIC Driver for Windows Version 14.0*
[ crms_nic_windows_12-4.zip-3, 47.92 MB, Apr.20.2023 ]
Intel imb IPMI driver source for Linux (GPL)
For latest version, refer to:
http://downloadcenter.intel.com/Product_Search.aspx?Prod_nm=imbsrc
[ imbsrc-28-tar.gz, 140.96 KB, Apr.20.2023 ]
Tools
PCT - Platform Confidence Test for DOS (TIGI2U / NSI2U)
Platform Confidence Test [PCT] is a functional diagnostic test of the motherboard. It is not a stress-test, nor does it test the functionality of add-in adapters.
[ tlitest.iso, 3.28 MB, Sep.22.2015 ]
Deployment Toolkit - CD Image
This download contains the Deployment CD ISO image for the Carrier Grade Server TIGI2U. Use a CD burning utility to extract the content of the ISO image to CD or DVD Media.
[ tigi2u_deployment_cd_r004.zip, 479.62 MB, Nov.27.2013 ]
Technical Info
TIGI2U Technical Product Specification (System) - Rev. 1.2
Detailed description of System functionality
[ tigi2u_tps_1_2.pdf, 2.36 MB, Oct.17.2023 ]
Specification update for the Intel® Server Board SE7520JR2 - Rev. 4.0
[ se7520jr2_sr2400_sr1400_sr1450_technical_spec_upda.pdf, 141.4 KB, Nov.27.2013 ]
Technical Product Specification (Baseboard) - Rev. 1.0
[ se7520jr2tpsrev1.pdf, 3.16 MB, Nov.27.2013 ]
North American power cord specifications
[ northamericanpowercord.pdf, 27.49 KB, Nov.27.2013 ]
Compatibility Matrix
TIGI2U / NSI2U Tested Hardware and Operating System List (THOL) - Rev. 1.4
[ tigi2unsi2u_se7520jr2_thol_1_4.pdf, 140.9 KB, Nov.27.2013 ]
Tested Memory List - Rev. 64.0
To check for latest revision, refer to:
http://www.intel.com/support/motherboards/server/se7520jr2/sb/cs-014584.htm
[ se7520jr2_memlist_rev_64.pdf, 385.69 KB, Nov.27.2013 ]
Ordering Guide
TIGI2U Configuration Guide - Rev. 2.8.2
Guidance on what to order, and SKU definition
[ tigi2u_configguide_2_8_2.pdf, 94.15 KB, Nov.27.2013 ]
Quick Reference Guide
TIGI2U Hardware Reference Guide - Page 1 Front View
[ tigi2u_hwrg_front.pdf, 7.05 MB, Nov.27.2013 ]
TIGI2U Hardware Reference Guide - Page 2 Back View
[ tigi2u_hwrg_back.pdf-2, 3.41 MB, Nov.27.2013 ]
